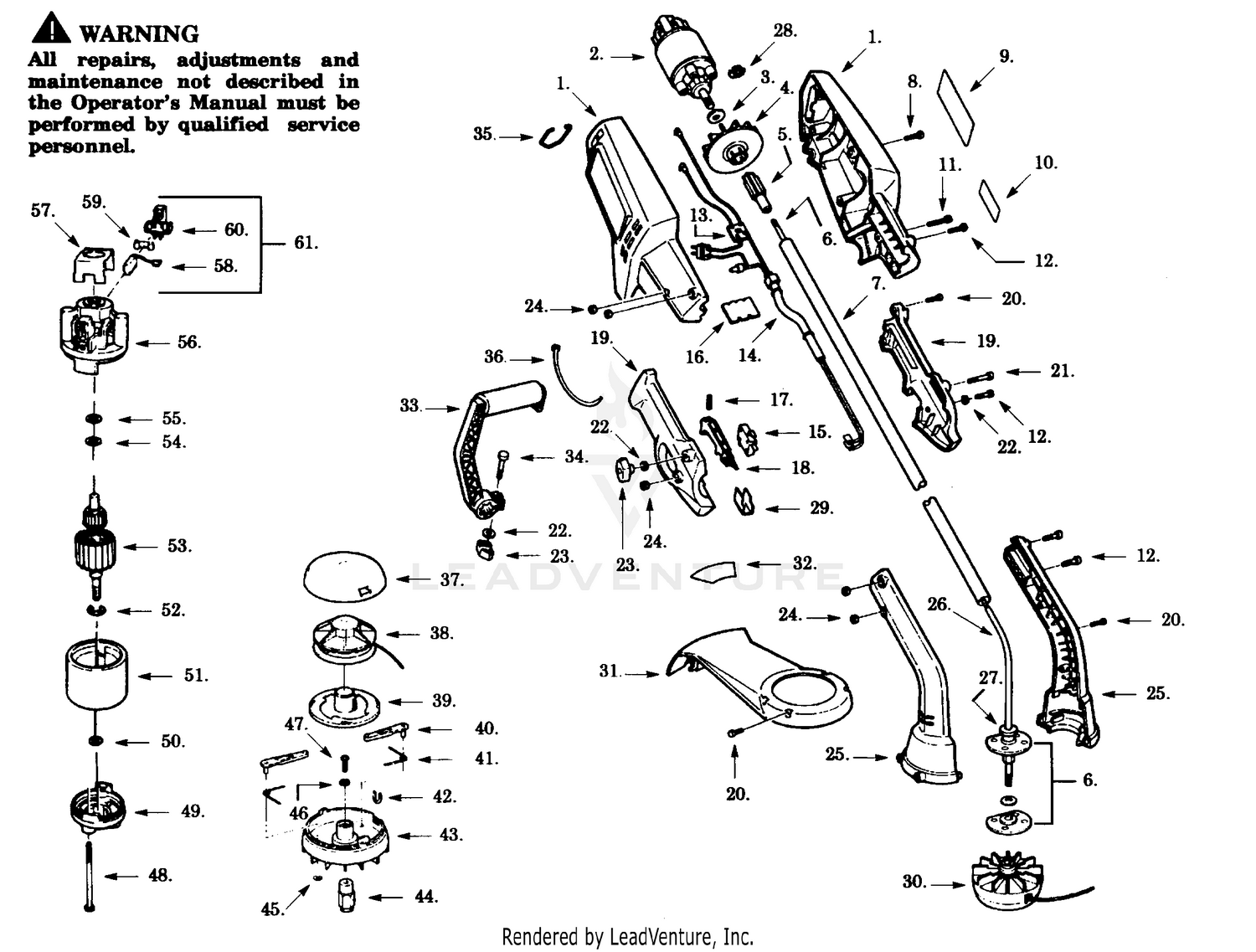

TRIMMER ASSEMBLY
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 534500117 | Motor Hsg. Set Price: $19.99 |
| 2 | 534935801 | Motor Ass'y. Price: $3.33 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 534494601 | Washer Price: $1.99 |
| 4 | 534526802 | Fan Price: $2.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 534900825 | Shaft Adapter Price: $3.33 |
| 6 | 534100711 | Flex Shaft/Bearing Ass'y. Kit Price: $13.84 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 534904001 | Tube Ass'y. Price: $17.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 534790300 | Screw Price: $3.33 |
| 9 | 112-1725 | SPRING-COMPRESSION Price: $14.14 |
| 9 | 530400664 | Warning Label Price: $3.33 |
| 10 | 530400665 | Motor Hsg. Label (Not a serviceable part) Price: $3.33 |
| 11 | 534799500 | Screw Price: $1.99 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 534829600 | Screw Price: $3.33 |
| 13 | 534336600 | P.C. Bridge Price: $3.33 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 534982000 | Switch Price: $4.99 |
| 16 | 534805300 | Wire Mount Board Price: $3.33 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 17 | 534790700 | Trigger Spring Price: $1.99 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 534904904 | Trigger Price: $1.99 |
| 19 | 107-2951 | FRAME Price: $239.55 |
| 19 | 534500118 | Trigger Hsg. Set Price: $8.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 534790301 | Screw Price: $3.33 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 534903100 | Screw Price: $1.99 |
| 22 | 130-8094 | WASHER-PLAIN Price: $5.25 |
| 22 | 534828701 | Washer Price: $3.33 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 530347898 | Knob Price: $2.99 |
| 24 | 534790500 | Nut Price: $1.99 |
| 25 | 106-3937 | CARRIER FRAME ASM Price: $489.45 |
| 25 | 534500119 | Spindle Hsg. Set Price: $8.99 |
| 26 | 302-5 | FITTING-GREASE Price: $0.59 |
| 26 | 534788905 | Tubing Sleeve Price: $1.99 |
| 27 | 534636002 | Felt Washer Price: $1.99 |
| 28 | 534246702 | Retaining Ring Price: $1.99 |
| 29 | 534982200 | Switch Insulator Price: $1.99 |
| 30 | 534907305 | Cutting Head Ass'y. Price: $19.36 |
| 31 | 534905501 | Guard Ass'y. Price: $3.33 |
| 32 | 534916500 | Guard Label (Not a serviceable part) Price: $3.33 |
| 33 | 534914801 | Assist Handle Price: $7.99 |
| 34 | 534352400 | Screw Price: $1.99 |
| 35 | 534270100 | Hanger Price: $1.99 |
| 36 | 534134706 | Tie Strap Price: $1.99 |
| 37 | 534036644 | Cover Price: $1.84 |
| 38 | 534907903 | Spool w/Line Price: $7.02 |
| 39 | 534014475 | Cam Price: $2.99 |
| 40 | 534899200 | Arm Price: $3.33 |
| 41 | 534908501 | Spring Price: $1.99 |
| 42 | 534900200 | Line Shield Price: $3.33 |
| 43 | 534014477 | Housing Head Price: $3.33 |
| 44 | 534900301 | Drive Adaptor Price: $6.99 |
| 45 | 534400701 | Push Nut Price: $1.99 |
| 46 | 534908700 | Washer Price: $1.99 |
| 47 | 534136401 | Screw Price: $1.99 |
| 48 | 534228700 | Screw Price: $1.99 |
| 49 | 534207101 | Endbell Ass'y. (Drive) Price: $3.33 |
| 50 | 534228800 | Washer Price: $1.99 |
| 51 | 534227001 | Field Ass'y. Price: $24.99 |
| 52 | 534246700 | Retaining Ring Price: $0.99 |
| 53 | 534944001 | Armature Ass'y. Price: $3.33 |
| 54 | 534228802 | Washer Price: $0.99 |
| 55 | 534238903 | Washer Price: $1.99 |
| 56 | 534227501 | Endbell Ass'y. (Brush) Price: $3.33 |
| 57 | 534226000 | Insulator Price: $3.33 |
| 58 | 534227800 | Brush Price: $3.16 |
| 59 | 534228000 | Spring Brush Price: $1.99 |
| 60 | 534227700 | Brush Holder Price: $3.33 |
