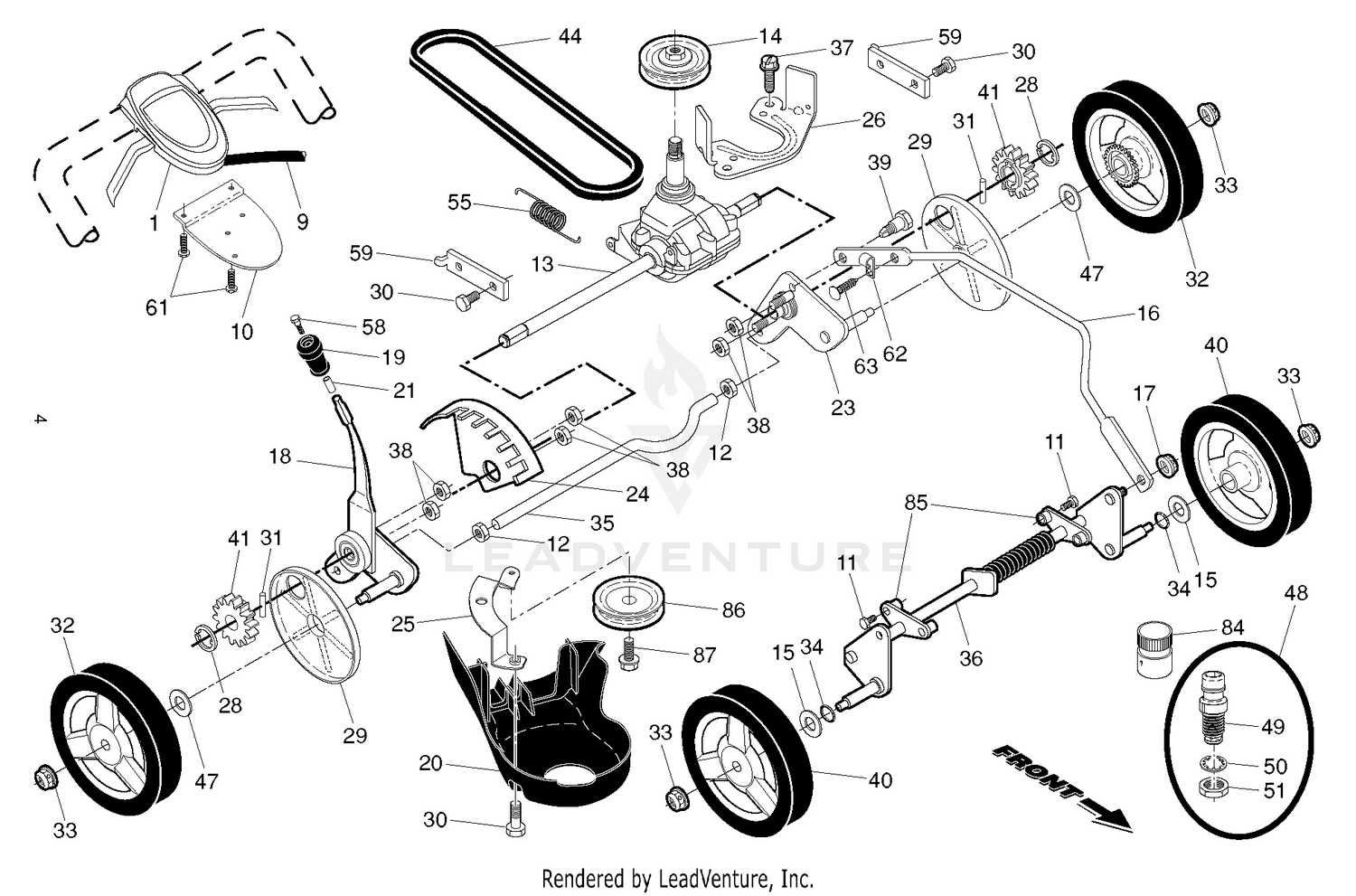

| Ref | Part Number | Description |
|---|
| 9 |
581952101 |
CABLE.DRIVE.RWD.WALK. Price: $29.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER Price: $129.99 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 15 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 16 |
532430030 |
ROD.CONNECTING.RGD.22+.HW.BLAC Price: $17.99 |
| 17 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 18 |
532438536 |
KIT.SELECTOR.ASM.437869 Price: $41.99 |
| 19 |
532433996 |
KNOB.SEL.SPRING.22+.SP.RIB.BLK Price: $5.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 21 |
532435242 |
SCREW.PLASTIC.ANCHOR.5/16 Price: $4.99 |
| 24 |
532433511 |
BRACKET.WHL.ADJ.9.POS.W/PAD Price: $9.99 |
| 25 |
581313802 |
BRACKET.DRIVE.COVER.RGD. Price: $9.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 30 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 38 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 41 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 44 |
580364611 |
BELT V3L 35.42, CLUTCHING COVE This part replaces 532406557. Price: $8.99 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 48 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 49 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 50 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 55 |
581351301 |
SPRING.RETURN.AUTO. Price: $4.99 |
| 58 |
532435241 |
SCREW.12-14X1.500 Price: $3.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 62 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 63 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 85 |
532439077 |
BRACKET.FRT.AXLE.SUPPORT Price: $19.99 |
| 86 |
587969201 |
PULLEY.RWD.IDLER.DBL SEAL This part replaces 580364301. Price: $12.99 |
| 87 |
581127601 |
SCREW Price: $6.99 |
