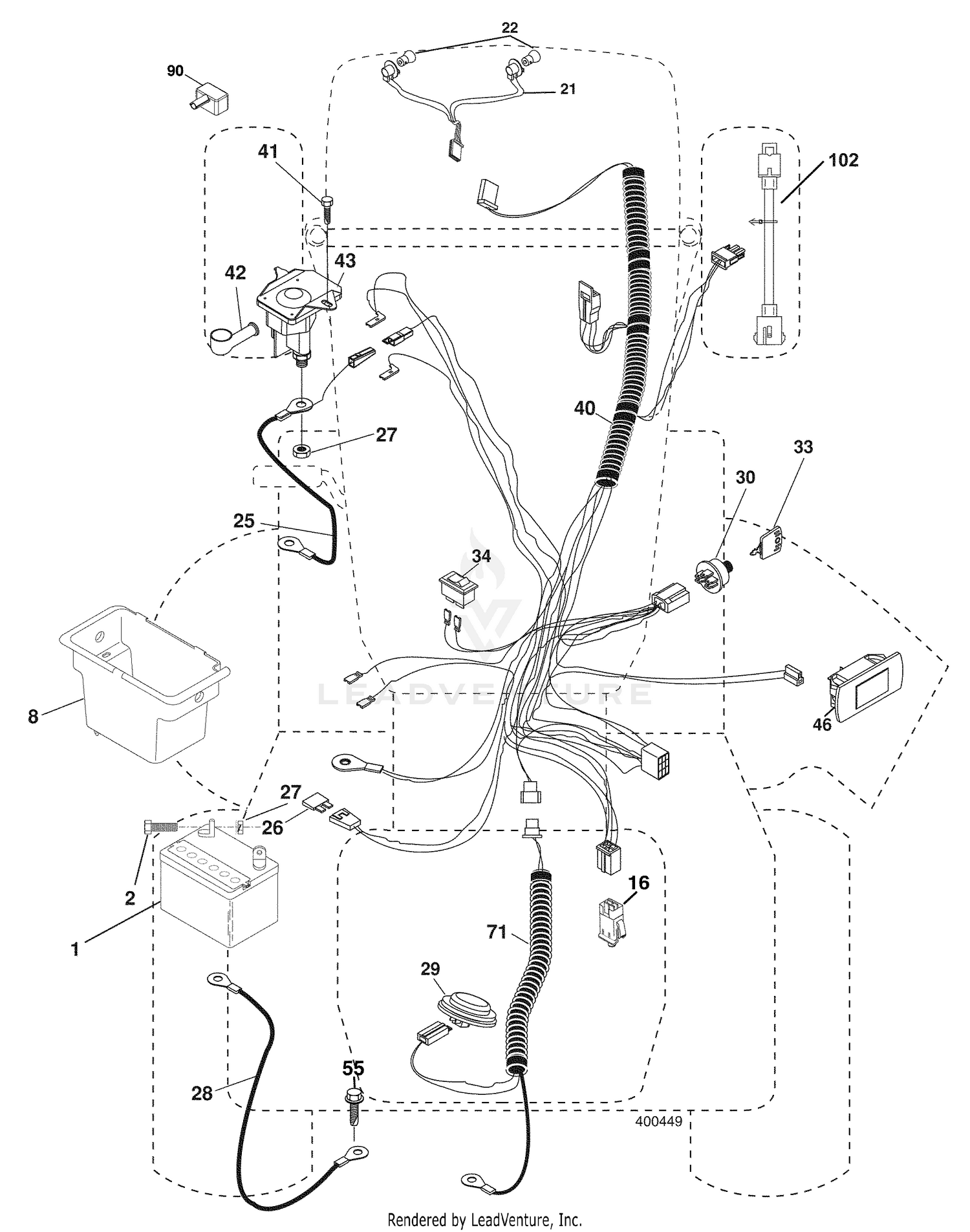

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
92-6564 |
DECAL-4 MATIC Price: $41.48 |
| 2 |
84-1450 |
PANEL-GAUGES, CONSOLE Price: $78.90 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
218-446 |
NUT-HEX Price: $6.09 |
| 4 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 5 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 6 |
3254-20 |
WASHER-LOCK, INT Price: $1.29 |
| 7 |
3218-19 |
NUT-HJ Price: $0.54 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 8 |
93-7483 |
LAMP-CLUSTER Price: $97.05 |
| 9 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 10 |
66-2940 |
GAUGE-FUEL Price: $178.34 |
| 11 |
93-7484 |
CLUSTER-LAMP Price: $121.39 |
| 12 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 14 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 15 |
3217-26 |
NUT-HEX Price: $0.25 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
138-1911 |
PTO SWITCH KIT This part replaces 85-4980. Price: $320.00 |
| 18 |
32128-33 |
NUT-HF Price: $0.25 |
| 19 |
3274-31 |
SCREW-HSBH This part replaces 3274-68. Price: $0.89 |
| 20 |
27-2360 |
SWITCH Price: $46.56 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
82-3750-03 |
COVER-CONSOLE This part replaces 82-3750. Price: $183.31 |
| 22 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 24 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
70-1480 |
RELAY Price: $105.19 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532400449 |
HARNESS.IGN.CHASS.TEX.REAR.BAT Price: $32.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532400725. Price: $4.99 |
