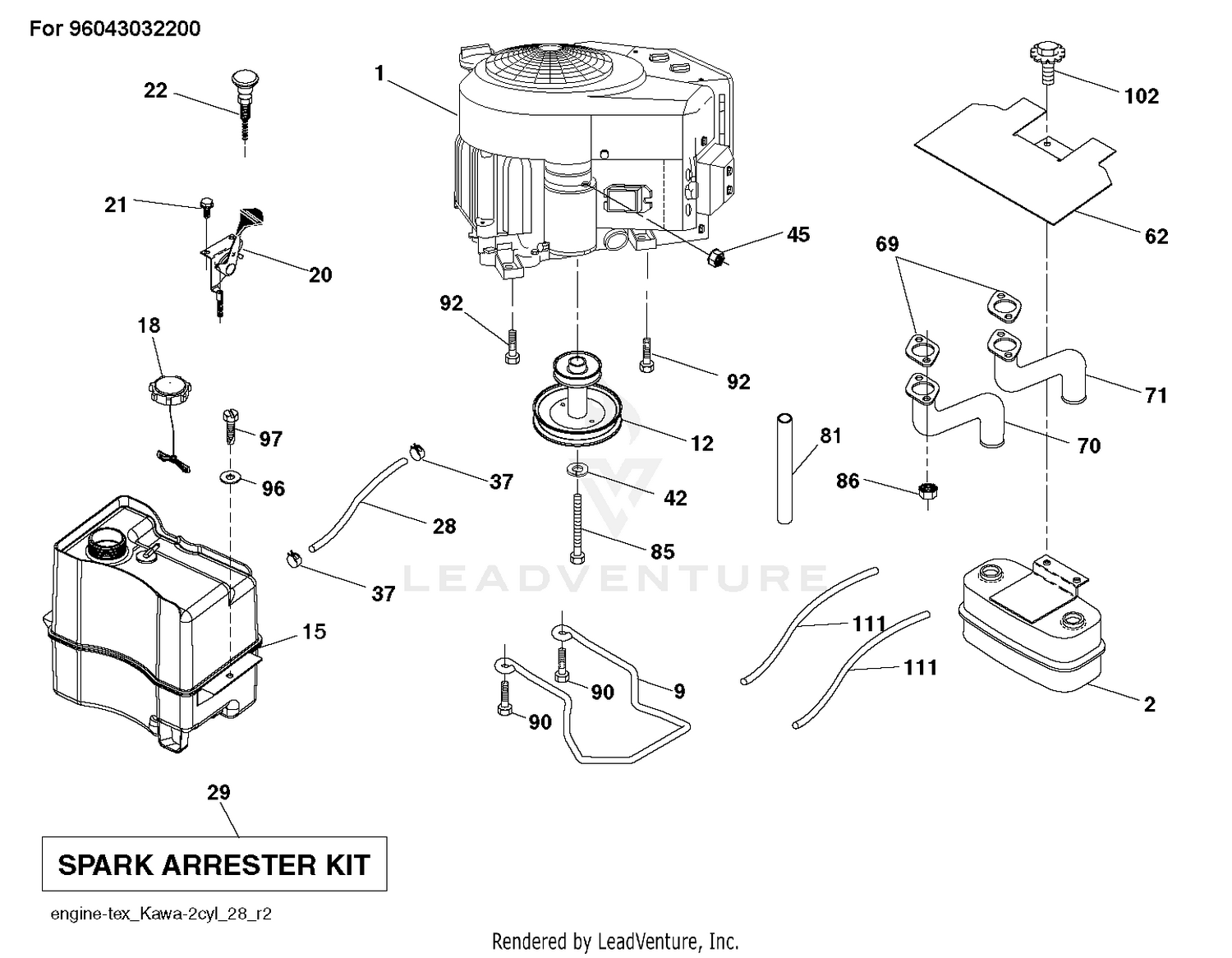

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 2 |
93-7703-03 |
PLATE-CLAMP, GUARD This part replaces 93-7703. Price: $28.49 |
| 3 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 4 |
94-1756 |
CLAMP - MUFFLER Price: $12.55 |
| 5 |
93-4418-03 |
GUARD-MANIFOLD This part replaces 93-4418. Price: $523.00 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 9 |
323-9 |
SCREW-HH Price: $1.29 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 11 |
47-2830 |
SCREW Price: $0.34 |
| 12 |
586478501 |
ENGINE.PULLEY Price: $27.99 |
| 12 |
93-4419-03 |
GUARD-MUFFLER, REAR This part replaces 93-4419. Price: $298.94 |
| 13 |
322-6 |
SCREW-HH Price: $0.45 |
| 14 |
93-4417 |
U-BOLT Price: $30.13 |
| 15 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 16 |
93-4416-03 |
BRACKET-SUPPORT MUFFLER This part replaces 93-4416. Price: $58.91 |
| 17 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 18 |
93-0198-03 |
BRACKET-SUPPORT, MUFFLER This part replaces 93-0198. Price: $70.77 |
| 19 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 20 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 21 |
596321701 |
Screws Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 22 |
93-4000-03 |
STRAP-SUPPORT, MUFFLER This part replaces 93-4000. Price: $51.06 |
| 23 |
93-0199-03 |
STRAP-SUPPORT, MUFFLER This part replaces 93-0199. Price: $61.23 |
| 24 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 27 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 30 |
2412-103 |
CLAMP Price: $2.51 |
| 31 |
13-2650 |
BELT-V Price: $177.37 |
| 32 |
3-9155 |
KEY-SQUARE Price: $11.44 |
| 33 |
13-3330 |
BUSHING Price: $47.20 |
| 34 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 35 |
321-6 |
SCREW-HH Price: $0.25 |
| 36 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 37 |
323-10 |
SCREW-HH Price: $0.89 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
4-1920 |
WASHER Price: $26.67 |
| 39 |
13-3320 |
SHEAVE Price: $893.43 |
| 40 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
596238901 |
Washers Price: $2.99 |
| 45 |
596133601 |
Hardware Price: $2.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE Price: $2.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 111 |
587044580 |
Hoses This part replaces 596941501. Price: $9.99 |
