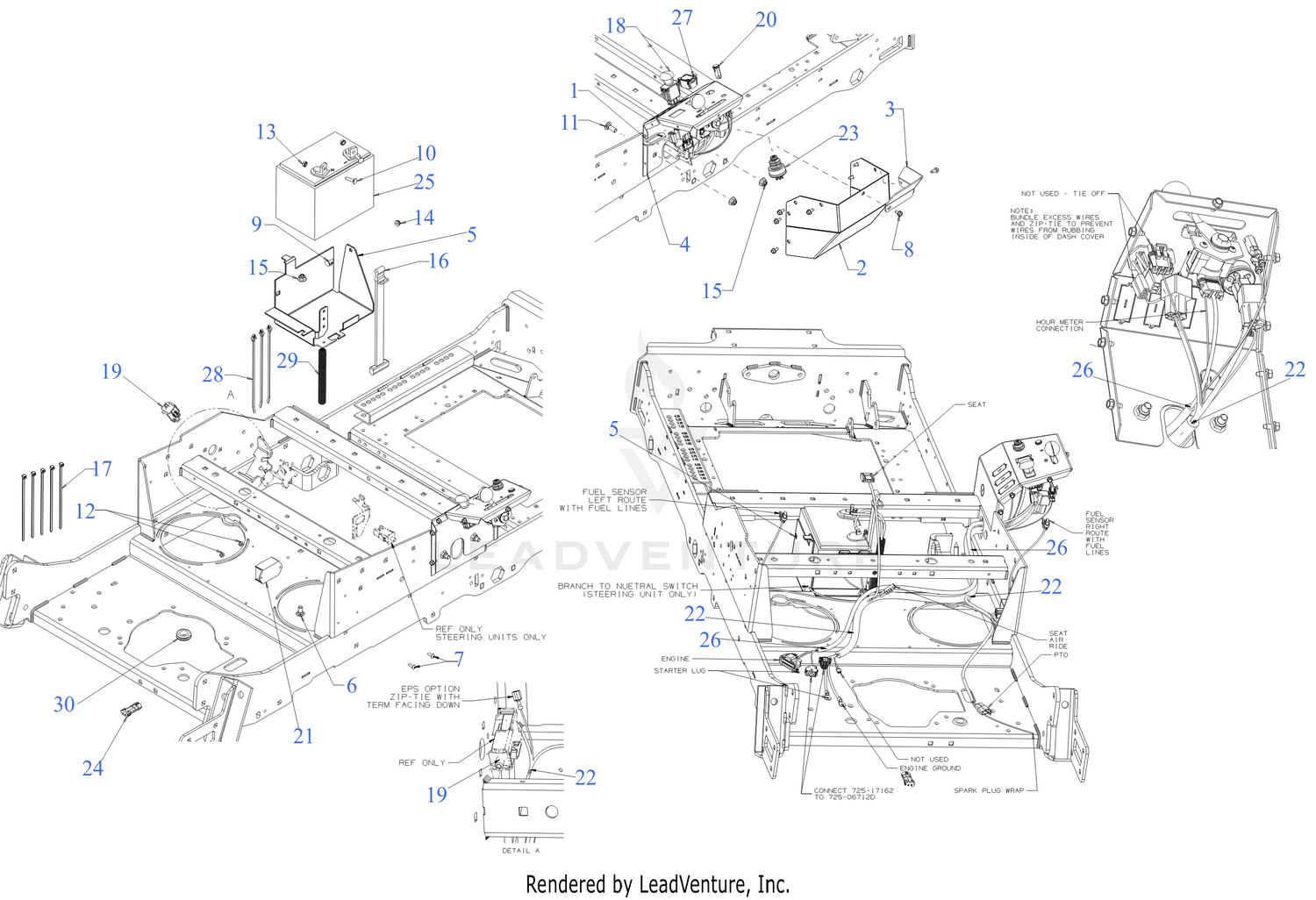

| Ref | Part Number | Description |
|---|
| 1 |
01009905 |
BRACKET-PTO SWITCH Price: $23.90 |
| 6 |
710-0389 |
CARRIAGE BOLT 3/8-16 x .750 GR5 Price: $3.89 |
| 7 |
710-0425 |
SCREW #10-24 x .62 Price: $4.21 |
| 8 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 9 |
710-0703 |
SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 10 |
710-0932A |
SCREW 1/4-20 x 1 GR5 Price: $3.66 |
| 11 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 12 |
712-0161 |
HEX NUT Price: $4.02 |
| 13 |
712-0271 |
SEMS NUT 1/4-20 Price: $3.78 |
| 14 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
723-3064 |
BATTERY RETAINER STRAP Price: $26.07 |
| 18 |
925-04174A |
PTO SWITCH (BLACK KNOB) TEXT SYM Price: $62.00 |
| 20 |
725-04660 |
INDICATOR LIGHT-RED Price: $28.06 |
| 21 |
725-06308 |
CONTROL PANEL (SOFT CLUTCH) Price: $270.62 |
| 22 |
725-06712D |
WIRE HARNESS ASSEMBLY (KOH/KAW EFI) Price: $151.39 |
| 22 |
925-1718 |
RELAY Price: $64.50 |
| 23 |
925-06854 |
KEY SWITCH (3 POSITION) Price: $121.70 |
| 23 |
925-06908 |
PRO-Z KEY SET Price: $22.26 |
| 24 |
725-06945 |
SEALED CAP ASSEMBLY Price: $7.72 |
| 25 |
725P17130 |
BATTERY (230 CCA AGM U1-280) Price: $102.81 |
| 26 |
725P17162 |
HARNESS ADAPTER (KAW EFI) Price: $109.31 |
| 27 |
725P17252 |
HOUR METER Price: $90.03 |
| 28 |
726-0470 |
CABLE TIE Price: $4.20 |
| 29 |
731-26469 |
CONVOLUTED CONDUIT 1" Price: $3.04 |
