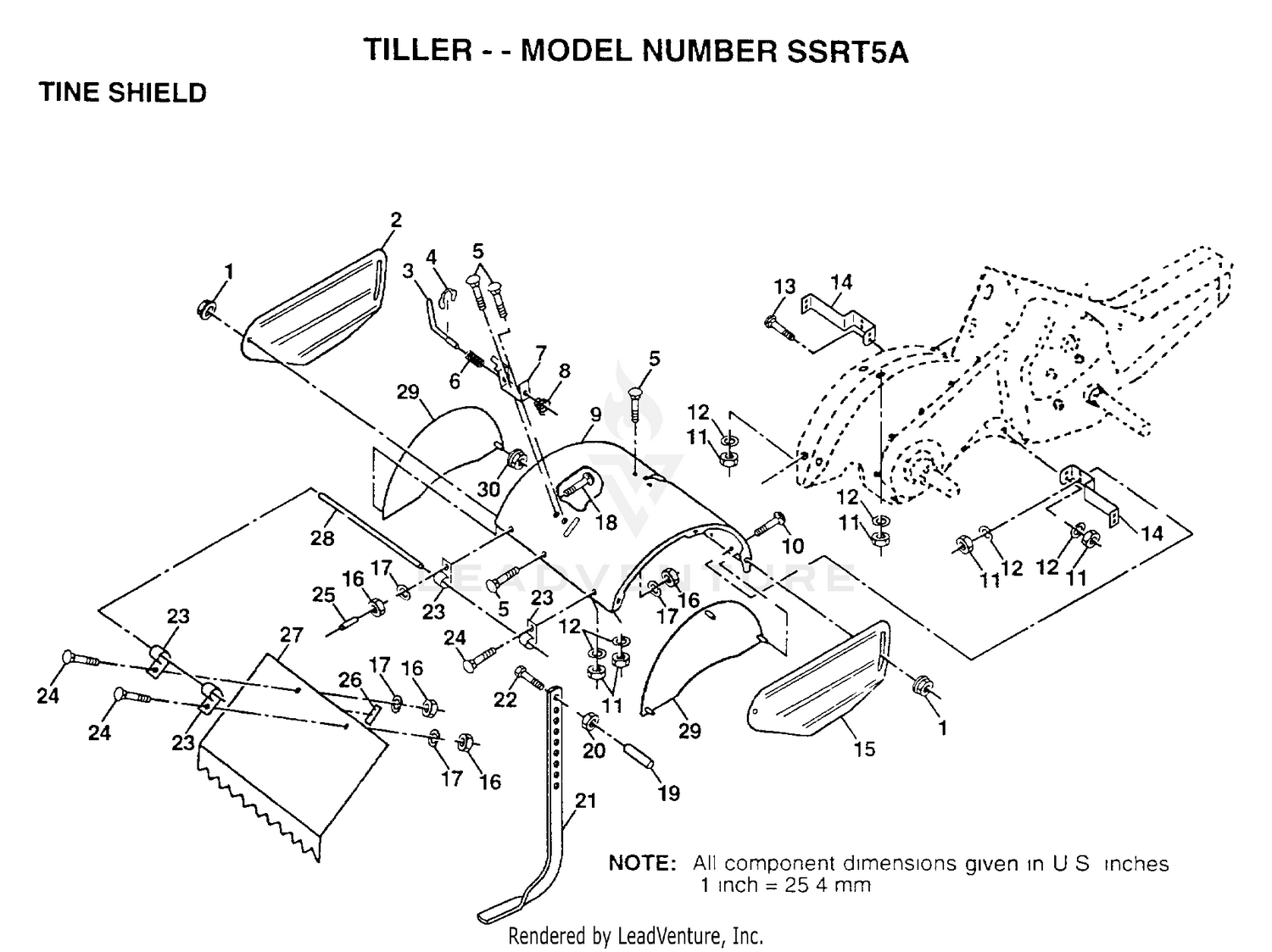

| Ref | Part Number | Description |
|---|
| 1 |
98-7697 |
BOLT Price: $1.08 |
| 1 |
98000129 |
NUT Price: Call Us |
| 2 |
104086X505 |
SHIELD.SD.OUT.LH Price: Call Us |
| 2 |
98-7660 |
WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 3 |
8393J |
STAKE PIN TI Price: Call Us |
| 3 |
98-7692 |
BOLT Price: $0.92 |
| 4 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 4 |
12000036 |
KLIP RING TI Price: Call Us |
| 5 |
72140506 |
BOLT Price: Call Us |
| 5 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 6 |
8394J |
SPRING TI Price: Call Us |
| 6 |
98-9360 |
BOLT Price: $2.35 |
| 7 |
8392J |
LATCH BRACKET TI Price: Call Us |
| 7 |
99-7527 |
WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 8 |
109230X |
SPRING CRT Price: Call Us |
| 8 |
98-9366 |
WASHER-PLAIN Price: $0.28 |
| 9 |
124289X505 |
TINE SHIELD Price: Call Us |
| 9 |
98-9700 |
TERMINAL ASM Price: $3.16 |
| 10 |
72140508 |
BOLT Price: Call Us |
| 10 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 11 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 11 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 12 |
10040500 |
LOCKWASHER Price: Call Us |
| 12 |
98-9602 |
LOCK COUPLER ASM Price: $17.36 |
| 13 |
72110510 |
BOLT Price: Call Us |
| 13 |
98-9696 |
COUPLER ASM Price: $6.53 |
| 14 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 15 |
104101X505 |
SHIELD.SD.OUT.RH Price: Call Us |
| 15 |
98-9676 |
V-BELT Price: $31.01 |
| 16 |
106-7055 |
PULLEY-DRIVE, FAN Price: $228.93 |
| 16 |
73220400 |
SUB= 50675 Price: Call Us |
| 17 |
10040400 |
LOCKWASHER Price: Call Us |
| 18 |
72040410 |
BOLT Price: Call Us |
| 19 |
102701X |
GRIP CRT Price: Call Us |
| 20 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 21 |
102156X |
SUB= 102156X500 Price: Call Us |
| 22 |
74930632 |
BOLT Price: Call Us |
| 23 |
4440J |
HINGE CRT Price: Call Us |
| 24 |
72140404 |
BOLT Price: Call Us |
| 25 |
6712 |
J VINYL CAP TI Price: Call Us 6712 J |
| 26 |
109227X |
PAD IDLER TI Price: Call Us |
| 27 |
102695X505 |
LEVELING SHIELD Price: Call Us |
| 28 |
120588X |
PIN HINGE Price: Call Us |
| 29 |
124309X505 |
SIDE SHIELD Price: Call Us |
