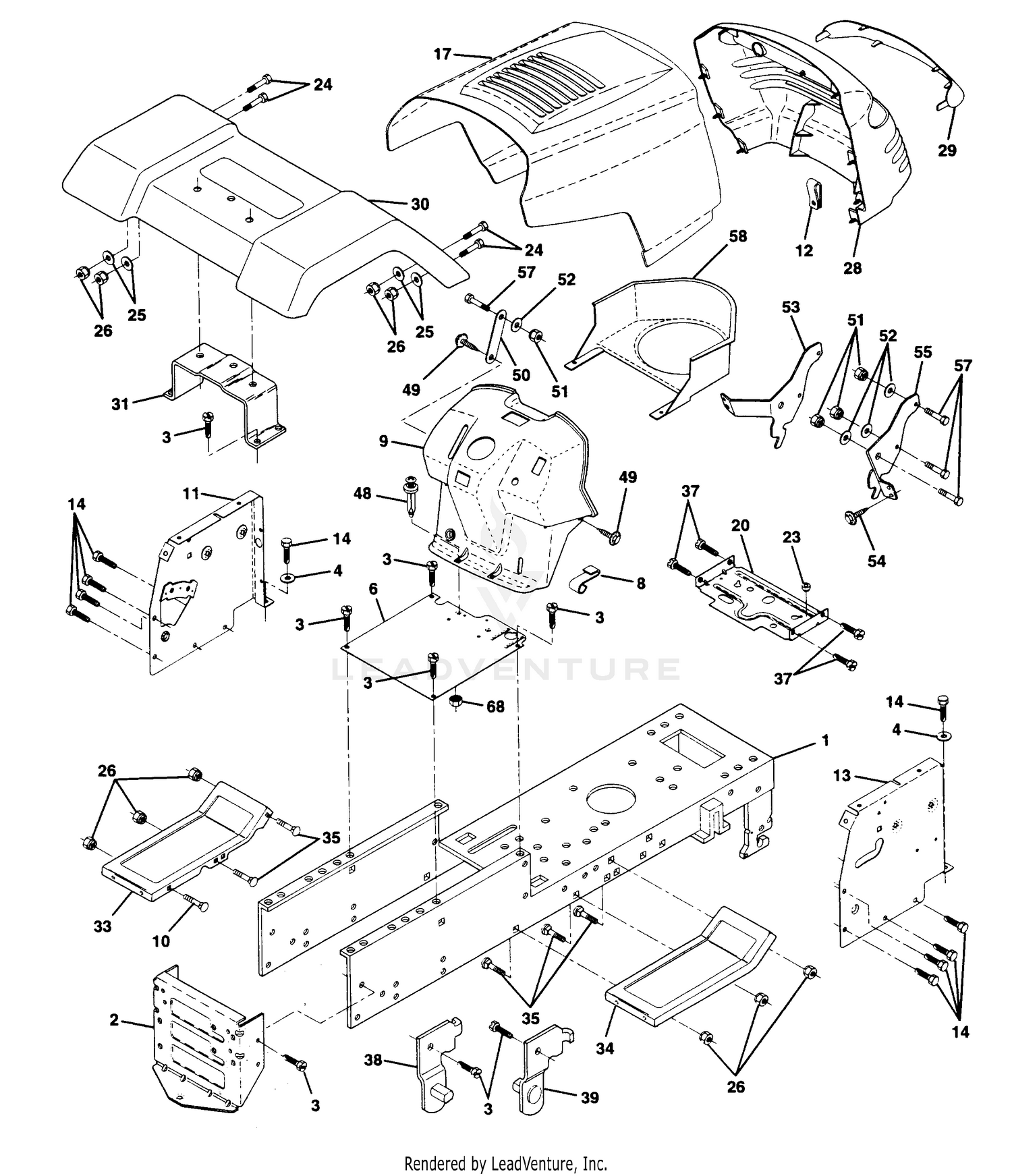

| Ref | Part Number | Description |
|---|
| 1 |
532145501 |
Chassis Weldment 11ga (AYP part number) Price: $130.75 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $37.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
819131216 |
Washer 13/32 x 3/4 x 16 Ga. (AYP part number) Price: $2.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 6 |
532145206 |
Saddle LT Fender Shift (AYP part number) Price: $15.92 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
532126471 |
Clip Insulator .406 (AYP part number) Price: $2.99 |
| 9 |
112-1725 |
SPRING-COMPRESSION Price: $14.14 |
| 9 |
532140072 |
Dash Private Label (AYP part number) Price: $85.44 |
| 10 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 11 |
532140311 |
Panel Pnt Dash Lh (AYP part number) Price: $22.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
532145660 |
Clip Tinnerman Grille P/L (AYP part number) Price: $2.99 |
| 13 |
532140178 |
Panel Dash Rh Weldment (AYP part number) Price: $17.99 |
| 14 |
817490608 |
Screw Thdrol 3/8-16x1/2 Ty-tt (AYP part number) Price: $3.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 17 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 17 |
532144473 |
Hood Paint Steel Private Label (AYP part number) Price: Call Us |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 19 |
107-2951 |
FRAME Price: $239.55 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532145210. Price: $7.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 22 |
130-8094 |
WASHER-PLAIN Price: $5.25 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 23 |
532124028 |
Bushing Price: $3.99 |
| 24 |
874780616 |
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 (AYP part number) Price: $3.99 |
| 25 |
106-3937 |
CARRIER FRAME ASM Price: $489.45 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 26 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 28 |
532140141 |
Grille Private Label (AYP part number) Price: $89.99 |
| 29 |
532140273 |
Lens Grille Private Label (AYP part number) Price: $17.99 |
| 30 |
532141324 |
Fender Pnt (AYP part number) Price: Call Us |
| 31 |
532136619 |
Bracket Pnt Fender (AYP part number) Price: $3.99 |
| 33 |
532147947 |
Footrest Pnt Lh (AYP part number) Price: $6.99 |
| 34 |
532147948 |
Footrest Pnt Rh (AYP part number) Price: Call Us |
| 35 |
872110606 |
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 (AYP part number) Price: $2.99 |
| 37 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 38 |
532139886 |
Bracket, Asm. Pivot, L.H., Mower Rear (AYP part number) Price: $5.99 |
| 39 |
532139887 |
Bracket, Asm. Pivot, R.H., Mower Rear (AYP part number) Price: $5.99 |
| 48 |
532138096 |
Rivet Push Plate D Plastic Blk. (AYP part number) Price: $3.99 |
| 49 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 50 |
532142779 |
Brace (AYP part number) Price: $2.99 |
| 51 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 52 |
819091416 |
Washer 9/32 x 7/8 x 16 Ga. (AYP part number) Price: $3.99 |
| 53 |
532144697 |
Bracket Grille LH (AYP part number) Price: $3.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030814. Price: $3.99 |
| 55 |
532144696 |
Bracket, Grille RH (AYP part number) Price: $3.99 |
| 57 |
874780412 |
Screw Hex 1/4-20 x 3/4 (AYP part number) Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT This part replaces 532140806. Price: $14.99 |
| 68 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
