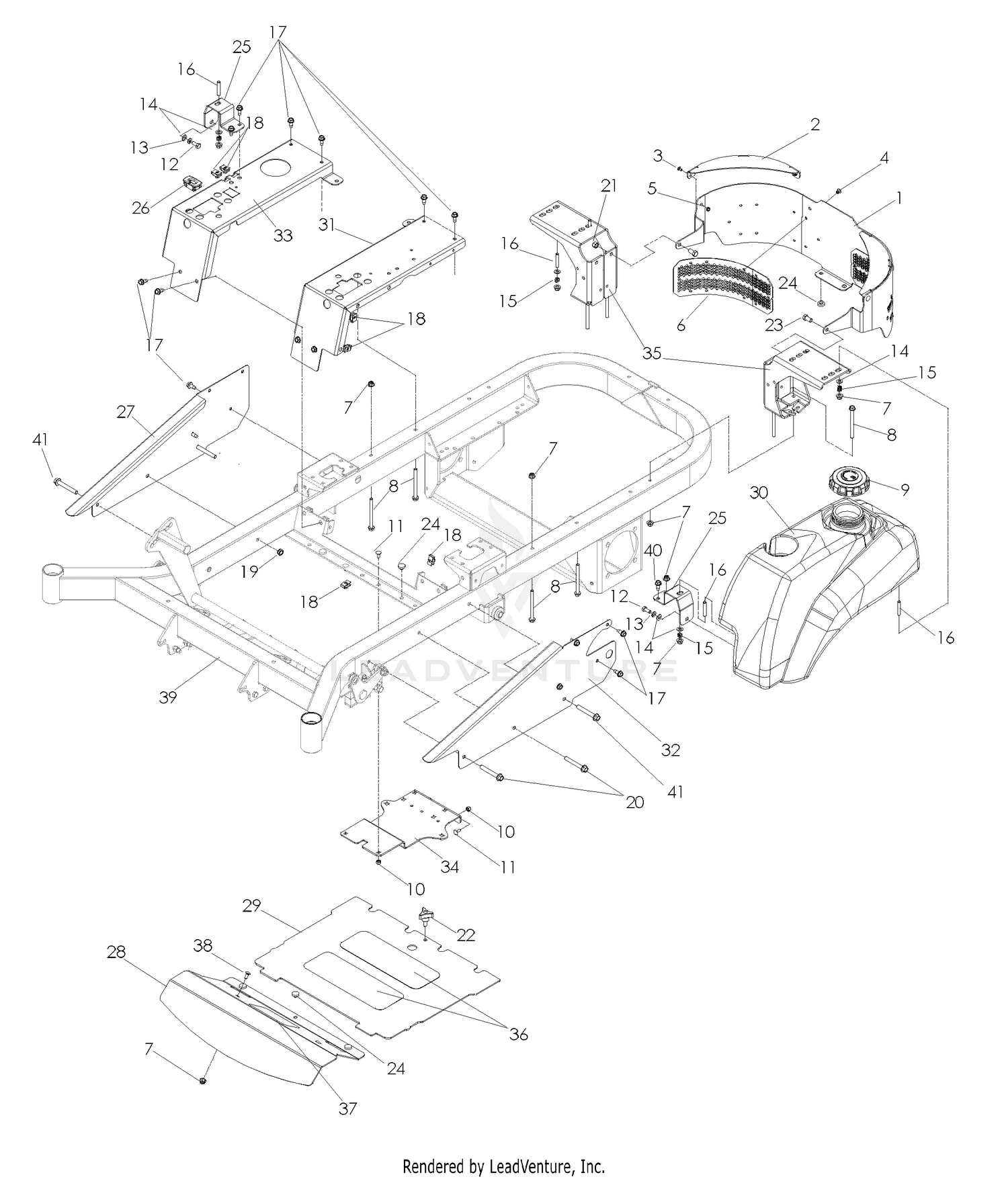

| Ref | Part Number | Description |
|---|
| 1 |
52-9260 |
SCREW-SET Price: $8.09 |
| 1 |
539131594 |
GUARD, REAR Price: $109.99 |
| 2 |
539131751 |
SUPPORT, TOP Price: $13.99 |
| 3 |
52-9230 |
RING-RETAINING Price: $26.68 |
| 3 |
539111777 |
RHSSNB 1/4-20 X 1/2 Price: $2.99 |
| 4 |
52-9240 |
BUSHING Price: $65.67 |
| 4 |
539200684 |
RIVERT, 3/16, STAVEX Price: $2.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 6 |
539131753 |
PANEL, HEX, RR Price: $20.99 |
| 7 |
59-6730 |
RACE Price: $10.63 |
| 7 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 8 |
59-6740 |
BEARING Price: $28.82 |
| 8 |
596241601 |
Bolts This part replaces 539131780. Price: $1.99 |
| 9 |
539130394 |
FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99 |
| 10 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 11 |
539111786 |
RHSSNB, 1/4-20X5/8 Price: $1.99 |
| 11 |
59-6820 |
CENTERING SPRING KIT Price: $50.64 |
| 12 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 13 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 14 |
59-6850 |
DISCONTINUED Price: Call Us |
| 14 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 15 |
539102845 |
SPRING Price: $2.99 |
| 15 |
59-6860 |
DRIVE Price: $204.59 |
| 16 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 16 |
76-6300 |
GEROTOR ASM Price: $478.69 |
| 17 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 17 |
76-6320 |
SPACER Price: $9.40 |
| 18 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 18 |
59-6890 |
CAP Price: $171.32 |
| 19 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 19 |
76-6310 |
DISCONTINUED Price: Call Us |
| 20 |
539131781 |
HHFS 3/8-16 X 2 3/4 Price: $4.99 |
| 20 |
59-6830 |
CENTERING PIN KIT Price: $3.98 |
| 21 |
52-9290 |
RETAINER-CHECKBALL Price: $15.41 |
| 21 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 22 |
52-9280 |
CHECKBALL Price: $7.01 |
| 22 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 23 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 24 |
52-9270 |
SEAT-CHECKBALL Price: $35.12 |
| 24 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 25 |
539131671 |
SUPPORT, TANK, BLK Price: $59.99 |
| 26 |
576179401 |
HOUR METER This part replaces 539110074. Price: $27.99 |
| 27 |
539131579 |
SIDE.RT.ORANGE Price: $34.99 |
| 28 |
539132380 |
PLATE, FOOTREST Price: $99.99 |
| 29 |
539132744 |
PLATE, FLOOR W/DECALS Price: $159.99 |
| 30 |
539104409 |
LEFT TANK W/CUP HOLDER Price: $249.99 |
| 31 |
539131589 |
PANEL, FILLER, LT Price: $49.99 |
| 32 |
539131577 |
SIDE.LT.ORANGE Price: $59.99 |
| 33 |
539131591 |
PANEL, FILLER, RT Price: $51.99 |
| 34 |
539131537 |
BATTERY MOUNT Price: $34.99 |
| 35 |
539131692 |
MOUNT, TANK, RR Price: $89.99 |
| 36 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 37 |
539121322 |
FOOT PAD Price: $3.99 |
| 38 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 39 |
539132743 |
FRAME W/DECALS 52", 61" Price: $899.99 |
| 39 |
539132749 |
FRAME W/DECALS 72" Price: $909.99 |
| 40 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
