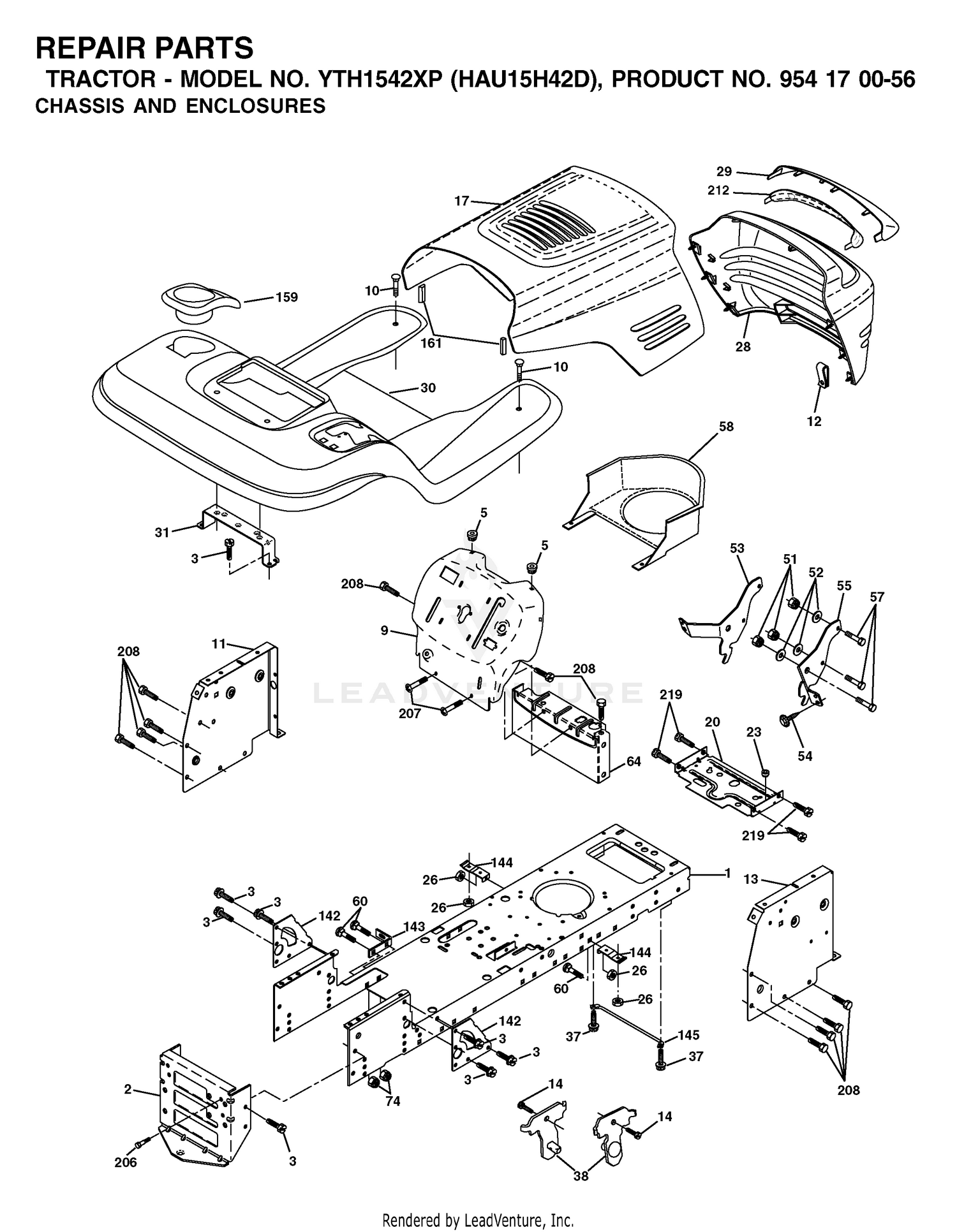

| Ref | Part Number | Description |
|---|
| 1 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 105-4500. Price: $3,119.29 |
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
237-166 |
O-RING Price: $10.46 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
100-3069 |
RH BRAKE ASM Price: $802.37 |
| 5 |
100-3070 |
LH BRAKE ASM Price: $802.37 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 7 |
33106-090 |
SCREW-HHF Price: $2.78 |
| 8 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 9 |
136-2300 |
TIRE AND WHEEL ASM This part replaces 131-3335. Price: $523.68 |
| 10 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
93-6498 |
FENDER-REAR Price: $312.87 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 12 |
93-6528-03 |
STRAP-MOUNT, FENDER Price: $37.52 |
| 13 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
94-7127 |
SPLASH GUARD ASM Price: $161.83 |
| 16 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 17 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
132-5631 |
HYD MOTOR ASM Price: $2,248.91 |
| 19 |
137-4285 |
HYDRAULIC MOTOR ASM This part replaces 132-5630. Price: $2,746.75 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK Price: $9.99 |
| 20 |
93-7984 |
GASKET Price: $20.21 |
| 21 |
33116-120 |
SCREW-HH Price: $1.70 |
| 22 |
119-4854 |
FITTING-STR Price: $54.99 |
| 23 |
340-104 |
FITTING-HYD, TEE Price: $74.38 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 24 |
104-3795 |
FITTING-TEE Price: $142.37 |
| 25 |
340-91 |
FITTING-STR Price: $36.83 |
| 26 |
117-0674 |
TUBE-TRACTION Price: $175.24 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
33096-00 |
WASHER-FLAT Price: $1.76 |
| 28 |
131-9634 |
HYDRAULIC HOSE ASM Price: $102.64 |
| 28 |
532179845 |
GRILLE/LENS ASM Price: $173.99 |
| 29 |
120-8563 |
HOSE ASM Price: $325.02 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 30 |
120-8564 |
HOSE ASM Price: $412.35 |
| 30 |
583713401 |
KIT.FENDER.PNT.STL.W/CPH. This part replaces 532181001. Price: $249.99 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532174930 |
DUCT, INTAKE AIR Price: $19.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 159 |
532155123 |
CUPHOLDER, BLK This part replaces 532166508. Price: $24.99 |
| 161 |
532164655 |
EXTRUSION BUMPER (3 2) (2 2) Price: $5.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
| 219 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
