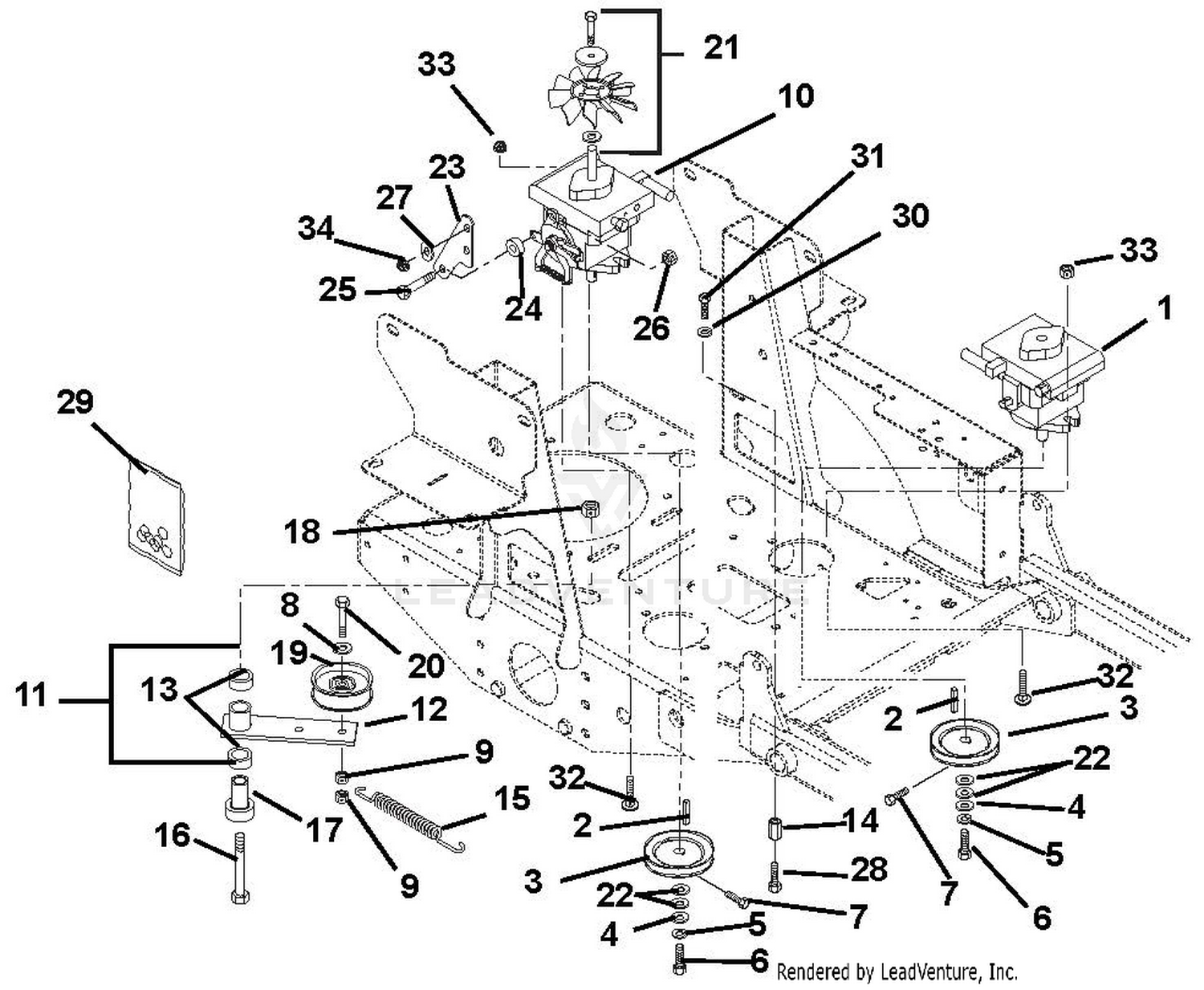

| Ref | Part Number | Description |
|---|
| 1 |
09297600 |
PUMP, HYD BDP-10A (LH) Price: $759.95 |
| 2 |
06607500 |
KEY-STR 5MMX25MMX5MM This part replaces 050995. Price: $3.45 |
| 3 |
07318900 |
SHEAVE, PUMP .592 X 4.345 This part replaces 051138. Price: $45.95 |
| 4 |
06401020 |
WSHR,FLT .281X1.000X.063 ZCC This part replaces 416904. Price: $0.95 |
| 5 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 6 |
05969800 |
BLT-HEX M6 X 1.0X12 YWZC Price: $1.95 |
| 7 |
05900008 |
BLT-HEX .25-20X.50 GR5 EPOXY Price: $1.95 |
| 8 |
06444300 |
WSHR-FL-STL .390X.75X.125 YWZC Price: $7.45 |
| 9 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 10 |
09285200 |
PUMP, BDP-10A-441 (THRU SHAFT) Price: $826.45 |
| 12 |
09217000 |
WMT, IDLER ARM GROUND DRIVE This part replaces 09217051. Price: $88.45 |
| 13 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 14 |
06533500 |
NUT COUPLING .375-16X1.75 Price: $3.45 |
| 15 |
08300728 |
SPRING- EXTENSION This part replaces 08336000. Price: $24.95 |
| 16 |
05901937 |
BLT, HEX .50-13X3.50 G5 ZCC This part replaces 05965800. Price: $4.45 |
| 17 |
07000031 |
BEARING, PEDESTAL Price: $74.45 |
| 18 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 19 |
07327500 |
IDLER, FLAT 4.00X1.06 Price: $40.95 |
| 20 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 21 |
09274900 |
FAN, COOLING Price: $40.95 |
| 22 |
06401118 |
WSHR, FLT .656X1.313X.095 ZCC This part replaces 06442800. Price: $2.45 |
| 23 |
09282900 |
BRACKET, RTN/DAMPER Price: $6.95 |
| 24 |
02513500 |
SPACER .344X1.000X.375 Price: $4.95 |
| 25 |
05901803 |
BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45 |
| 26 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 27 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 28 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 30 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 31 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 33 |
06500811 |
NUT,NYL-FLG .44-14 GF ZCC This part replaces 06500009. Price: $5.45 |
