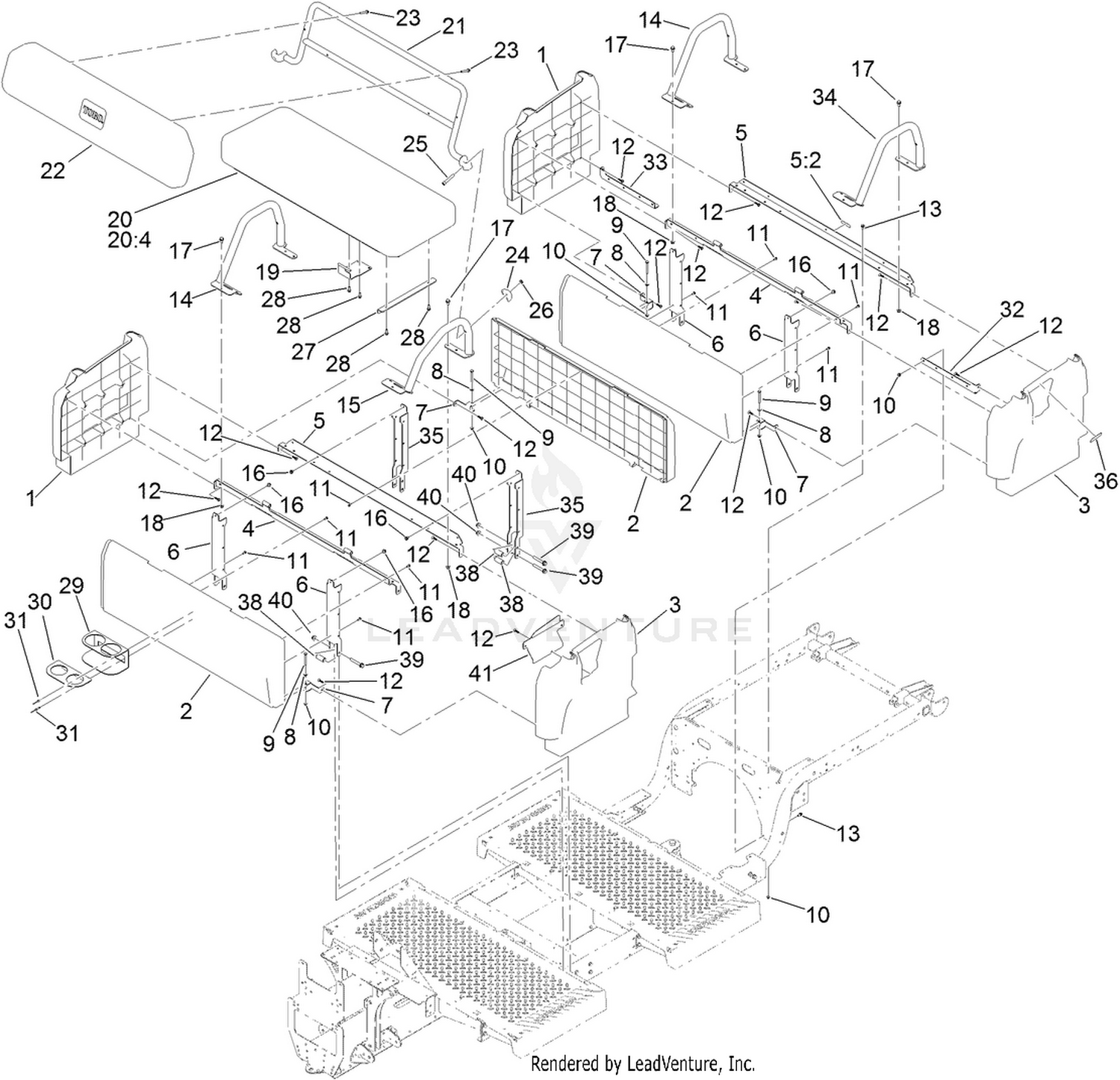

| Ref | Part Number | Description |
|---|
| 1 |
127-7805 |
SIDE-BASE, SEAT (RH) Price: $66.18 |
| 2 |
133-7188 |
PANEL-BASE, SEAT Price: $95.50 |
| 3 |
127-7807 |
SIDE-BASE, SEAT (LH) Price: $66.18 |
| 4 |
133-7345-03 |
SUPPORT-SEAT Price: $90.04 |
| 5 |
137-6991 |
SEAT SUPPORT ASM Price: $75.09 |
| 6 |
127-7841-03 |
CHANNEL-SUPPORT, SEAT Price: $35.19 |
| 7 |
127-7844-03 |
CLAMP-PLATE, FLOOR Price: $12.69 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
321-18 |
SCREW-HH Price: $1.89 |
| 10 |
104-7201 |
NUT-HF Price: $0.69 |
| 11 |
112-6349 |
SCREW-HWH Price: $0.27 |
| 12 |
120-2349 |
SCREW Price: $0.83 |
| 13 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 14 |
145-2075-05 |
HIP RESTRAINT ASM, RH This part replaces 131-8352-05. Price: $35.89 |
| 15 |
131-8353-05 |
RESTRAINT-HIP, LH Price: $93.58 |
| 16 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 17 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 18 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
133-7167-03 |
BRACKET-HINGE, SEAT Price: $18.55 |
| 20 |
138-0055 |
BENCH SEAT BOTTOM ASM Price: $404.50 |
| 21 |
133-3079-05 |
BACK REST Price: $239.35 |
| 22 |
138-0053 |
BENCH SEAT BACK REST ASM Price: $236.16 |
| 23 |
32105-18 |
SCREW-HHF Price: $0.47 |
| 24 |
132-8586-05 |
CASTING-MOUNT, BENCH SEAT (BACK) Price: $24.96 |
| 25 |
131-8591 |
SCREW-HSH Price: $2.37 |
| 26 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 27 |
133-7186-03 |
BRACKET-SUPPORT, BENCH SEAT Price: $17.96 |
| 28 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 29 |
133-7122-05 |
BRACKET-HOLDER, CUP Price: $34.00 |
| 30 |
133-7133-05 |
BRACKET-DIVIDER, CUP HOLDER Price: $22.81 |
| 31 |
133-7130 |
RIVET-POP Price: $0.89 |
| 32 |
127-7842-03 |
BRACKET-SUPPORT, SIDE (LH) Price: $16.45 |
| 33 |
127-7843-03 |
BRACKET-SUPPORT, SIDE (RH) Price: $16.45 |
| 34 |
147-3613-05 |
RESTRAINT-HIP, LH This part replaces 131-8354-05. Price: $42.93 |
| 35 |
131-8355-03 |
CHANNEL-SUPPORT, SEAT Price: $35.34 |
| 36 |
131-8410 |
DECAL-DANGER, FUEL Price: $2.50 |
| 38 |
131-8452 |
SPACER Price: $9.76 |
| 39 |
3234-39 |
SCREW-HHF Price: $1.09 |
| 40 |
104-8301 |
NUT-HF, NI Price: $1.09 |
