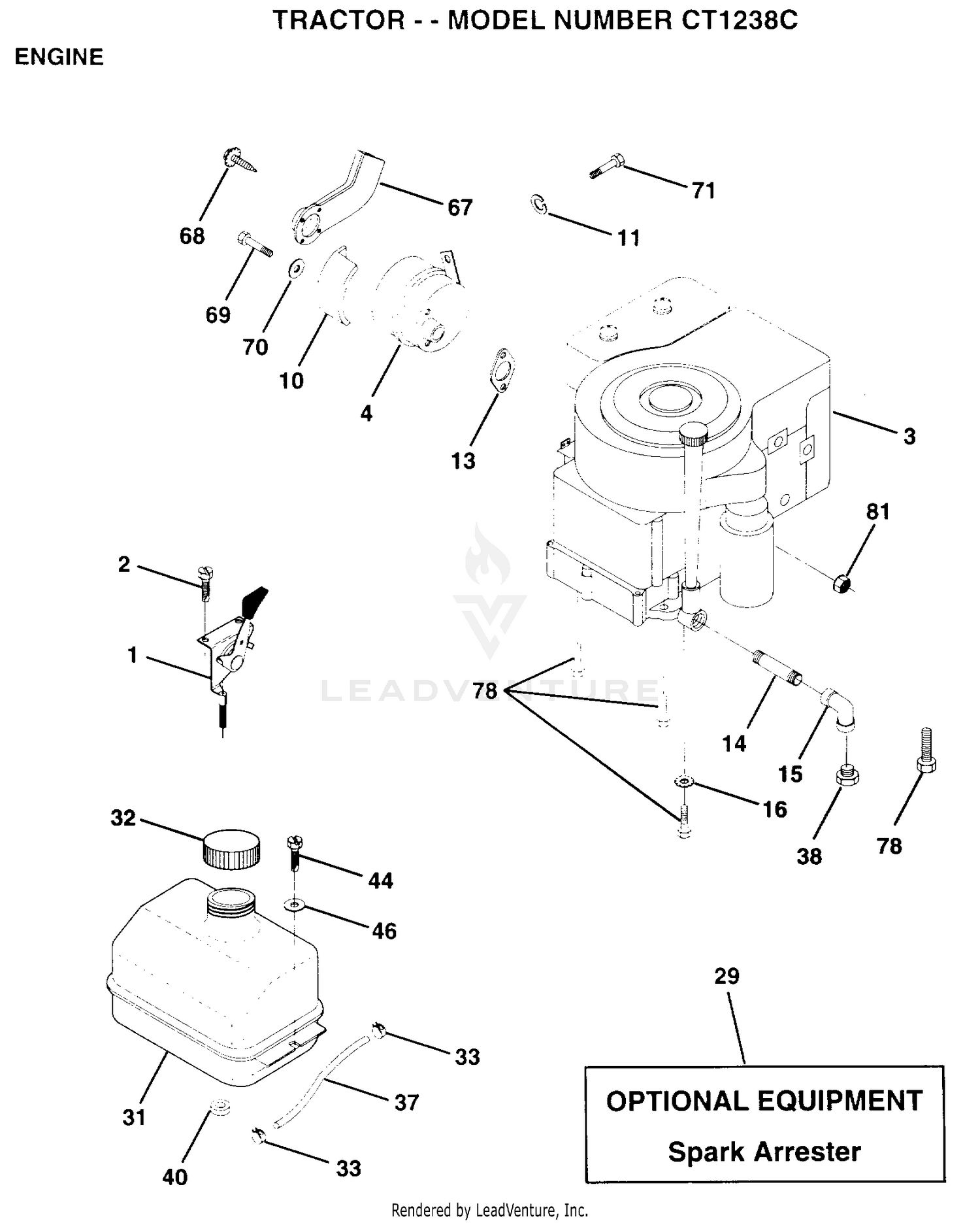

| Ref | Part Number | Description |
|---|
| 1 |
132771 |
THROTTLE CONTROL Price: Call Us |
| 1 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
69-5510 |
HOSE ASM Price: $77.25 |
| 3 |
282707 |
ENG B&S 10-12.5HP PWRBLT DC Price: Call Us |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
101273M |
MUFFLER LTV Price: Call Us |
| 4 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 5 |
71-2590 |
SHAFT-PIVOT Price: $228.41 |
| 6 |
69-7960-01 |
SUPPORT-AXLE Price: $461.54 |
| 7 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 8 |
100-3364-01 |
REAR AXLE ASM Price: $951.06 |
| 10 |
101159L |
SHIELD HEAT LTV Price: Call Us |
| 10 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 12 |
100-3362 |
CAP-SPINDLE Price: $44.10 |
| 13 |
100-4196 |
RING-RETAINING Price: $1.90 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 17 |
100-3358-03 |
SPINDLE-WHEEL, LH Price: $781.90 |
| 17 |
100-3359-03 |
SPINDLE-WHEEL, RH Price: $781.90 |
| 18 |
106-6895-03 |
BALL JOINT ASM Price: $258.08 |
| 19 |
23-7270 |
NUT-LUG Price: $10.37 |
| 20 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 21 |
100-3769 |
PROTECTOR-BEARING Price: $41.94 |
| 22 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 23 |
3220-7 |
NUT-JAM Price: $4.09 |
| 24 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 25 |
69-9870 |
WIDE WHEEL AND 6-PLY TIRE ASM Price: $513.71 |
| 26 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 27 |
117-8969 |
HUB ASM This part replaces 69-2960-03. Price: $336.24 |
| 28 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 29 |
69-2980 |
SEAL Price: $33.94 |
| 30 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 31 |
132-1308 |
HYD CYLINDER ASM This part replaces 98-0661. Price: $813.52 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 32 |
32136-13 |
NUT-SHH Price: $2.85 |
| 33 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 34 |
32128-23 |
NUT-HF Price: $1.51 |
| 35 |
3290-216 |
WASHER Price: $3.83 |
| 36 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 37 |
110-6143-01 |
TIE ROD ASM This part replaces 3-3710-01. Price: $513.93 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 38 |
340-70 |
NUT-LOCK Price: $2.10 |
| 39 |
95-6487-03 |
BRACKET-HOSE Price: $87.30 |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 40 |
69-6010 |
TUBE-HYD Price: $162.05 |
| 41 |
69-6020 |
TUBE-HYD Price: $138.98 |
| 42 |
100-3809 |
CAP-PROTECTOR, BEARING Price: $6.39 |
| 43 |
32152-5 |
NUT-HEX Price: $0.54 |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 44 |
3210-7 |
SCREW-HH Price: $0.61 |
| 46 |
19091416 |
WASHER Price: Call Us |
| 67 |
108767X |
DEFLECTOR MUFFLER Price: Call Us |
| 68 |
17030808 |
SUB= 17030814 Price: Call Us |
| 70 |
19111012 |
WASHER T Price: Call Us |
| 71 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
