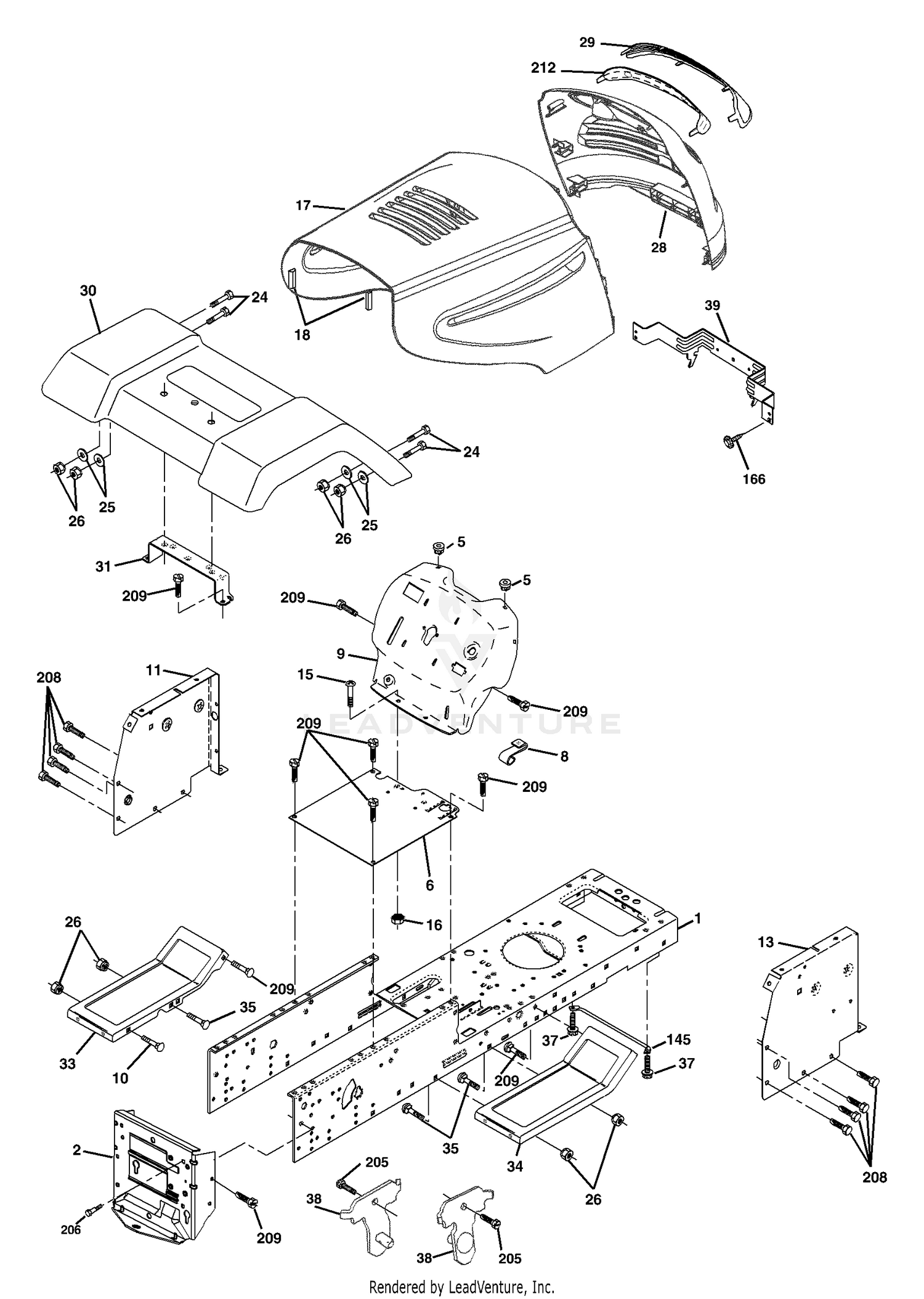

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 2 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 3 |
67-8190-01 |
BRACKET-SUPPORT, ENGINE Price: $50.66 |
| 4 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 5 |
2412-111 |
CLAMP Price: $4.39 |
| 6 |
174643X013 |
Saddle Silkscreen Price: Call Us |
| 6 |
3334-945 |
TIE-CABLE Price: $0.43 |
| 7 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 9 |
168347X011 |
Dash Price: Call Us |
| 9 |
83-9150 |
DECAL-FLUID, STARTING Price: $20.09 |
| 10 |
139-0686 |
RAIN CAP ASM This part replaces 105-2539. Price: $25.83 |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 12 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 13 |
179174X010 |
Panel Slkscr Dash RH Price: Call Us |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 15 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18 unc x 3/4 Price: Call Us |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 16 |
73510500 |
Nut Keps 5/16-18 unc Price: Call Us |
| 17 |
183394X417 |
Hood Price: Call Us |
| 17 |
32128-23 |
NUT-HF Price: $1.51 |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
98-4518-03 |
BRACKET-CLEANER, AIR Price: $75.61 |
| 19 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 20 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 21 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 22 |
105-0050-03 |
RESERVOIR BRACKET ASM Price: $65.30 |
| 24 |
110-3257 |
HOSE-FUEL Price: $17.26 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
104-3428 |
AIR CLEANER ASM Price: $271.20 |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 27 |
104-3434 |
HOSE-INLET, AIR Price: $108.76 |
| 29 |
183824X599 |
Lens Grille Basic Bar Price: Call Us |
| 29 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 30 |
105-7807-03 |
GUARD-BELT, FAN Price: $278.06 |
| 30 |
169465X417 |
Fender Price: Call Us |
| 32 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 33 |
179716X417 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X417 |
Footrest Pnt RH Price: Call Us |
| 34 |
70-8470 |
SCREW-HH Price: $1.76 |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 36 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 37 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 38 |
104-3774-03 |
BRACKET-BULKHEAD Price: $32.96 |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 39 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 166 |
171875 |
Screw Hwhd Hi-Lo #13-16 x 5/8 Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
183823 |
Insert Lens Reflect Price: Call Us |
