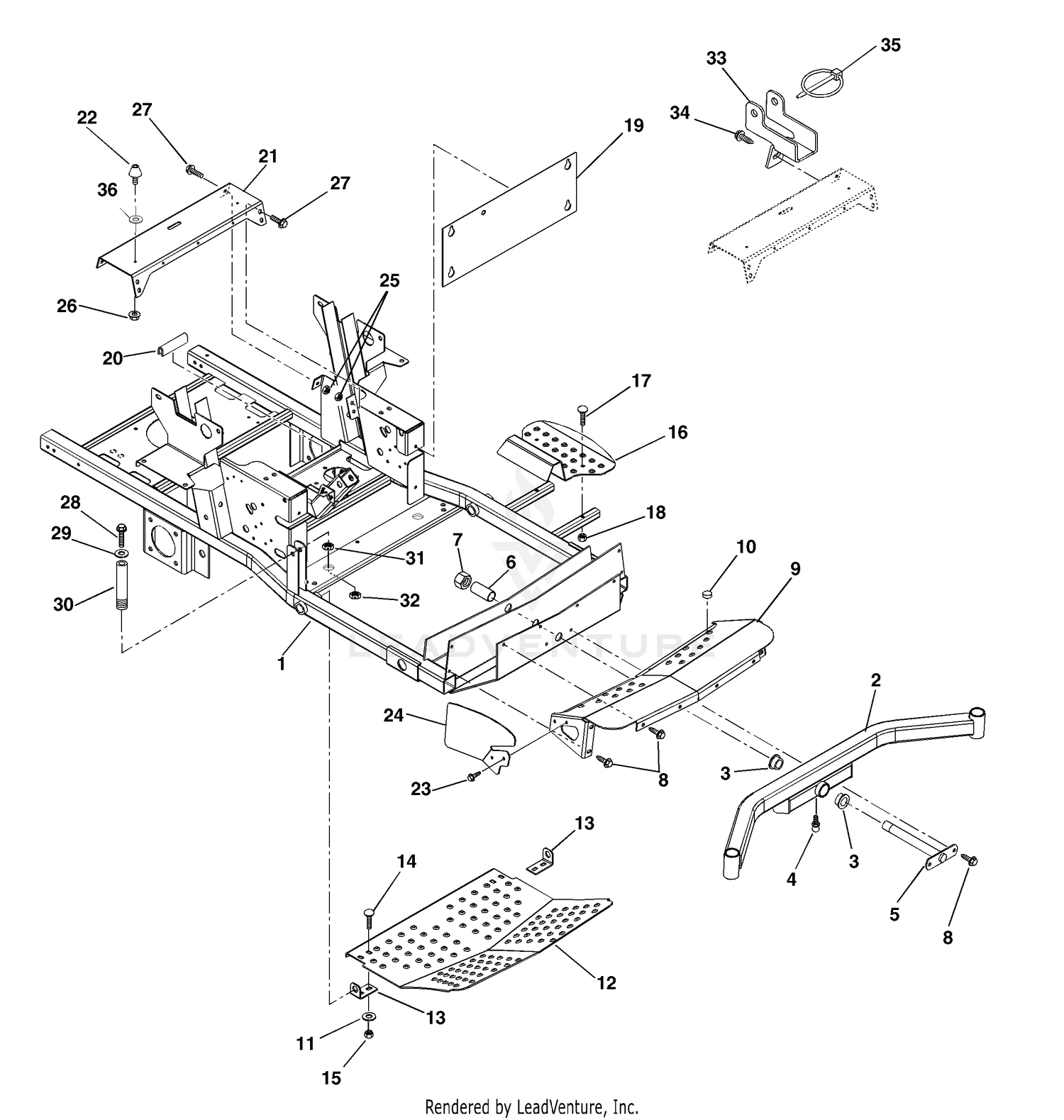

| Ref | Part Number | Description |
|---|
| 1 |
09248253 |
FRAME, SHORT WHEELBASE (RED) Price: $609.25 |
| 3 |
05520100 |
BSHG-FLG1.020X1.385X.75X1.75NY Price: $10.45 |
| 4 |
07012600 |
FTG-LUBE .25-28X.256 YWZC Price: $3.45 |
| 5 |
09232000 |
PIN - AXLE Price: $61.45 |
| 6 |
09231900 |
SPACER 1.009 X 1.250 X 4.23 Price: $19.45 |
| 7 |
06543200 |
NUT-LK-NYL 1.0-14 YWZC Price: $8.95 |
| 8 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 9 |
09278053 |
WMT, AXLE COVER This part replaces 09233453. Price: $89.95 |
| 10 |
07516000 |
BUTTON BUMPER Price: $0.95 |
| 11 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 12 |
09233353 |
PANEL - INSPECTION (RED) Price: $100.95 |
| 13 |
09231000 |
MOUNT - INSPECTION PANEL This part replaces 09231051. Price: $9.95 |
| 14 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06215500. Price: $2.45 |
| 15 |
06500831 |
NUT-NYL .38-16 G5 ZCC This part replaces 06535800. Price: $2.95 |
| 16 |
09231251 |
STEP, INGRESS (BLACK) This part replaces 09231253. Price: Call Us |
| 17 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC This part replaces 06212100. Price: $1.45 |
| 18 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 19 |
00483153 |
PLATE - KICK This part replaces 09234053. Price: $69.45 |
| 20 |
00918200 |
STRIP, COWL This part replaces 049767. Price: $5.45 |
| 21 |
09246453 |
CHANNEL - CROSS (RED) Price: $53.15 |
| 22 |
07533000 |
BUMPER, RUBBER CONE,STUD MOUNT Price: $13.45 |
| 23 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 24 |
09255851 |
GUARD, FOOT Price: Call Us |
| 25 |
07053300 |
NUT-RTNR .375-16X.37 Price: $3.45 |
| 27 |
07049900 |
BLT-SERHFWH .375-16X1.0 YWZC Price: $2.45 |
| 28 |
05975000 |
BLT-HEX .50-20X1.00 GR5 YWZC Price: $3.45 |
| 29 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 30 |
09260800 |
ASM,FSTNR 30" ROTARY MWR This part replaces 09255700. Price: Call Us |
| 31 |
06539900 |
NUT-JAM .75-16 ZCC Price: $3.45 |
| 32 |
06536900 |
NUT-JAM CTRLK .75-16 YWZC Price: $5.45 |
