| Ref | Part Number | Description |
|---|
| 2 |
BS-797673 |
Kit-Bushing/Seal (Magneto Side) This part replaces BS-399265. Price: $19.95 |
| 3 |
BS-391086S |
Seal-Oil (Magneto Side) This part replaces BS-391086. Price: $7.18 |
| 4 |
BS-212914 |
HEAD, CYLINDER Not Available Price: |
| 5 |
BS-271866S |
CYLINDER HEAD GASKET Not Available This part replaces BS-271866. Price: |
| 6 |
BS-495735 |
BREATHER ASSEMBLY Not Available This part replaces BS-391406. Price: |
| 7 |
BS-27803S |
BREATHER GASKET Not Available This part replaces BS-27803. Price: |
| 8 |
BS-691666 |
BREATHER ASSEMBLY SCREW Not Available This part replaces BS-93394. Price: |
| 9 |
BS-692253 |
BREATHER TUBE Not Available This part replaces BS-280100. Price: |
| 10 |
BS-271702S |
CRANKCASE GASKET Not Available This part replaces BS-271702. Price: |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 11 |
BS-93723 |
SCREW Not Available Price: |
| 12 |
751-3058 |
TUBE-OIL DRAIN Not Available Price: |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 13 |
751-3001 |
PLUG-HEX HEAD 1/4" Not Available Price: |
| 13 |
76-0960 |
LINK-DRIVE Price: $345.26 |
| 14 |
76-1010 |
SCREW Price: $21.23 |
| 14 |
BS-491647 |
CRANKSHAFT Not Available Price: |
| 16 |
BS-291675S |
OIL SEAL Not Available This part replaces BS-291675. Price: |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 17 |
BS-93585 |
SCREW-SEM-SUMP MOUNTING Not Available Price: |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 18 |
BS-222698S |
Key-Flywheel (Aluminum) This part replaces BS-222698. Price: $3.71 |
| 20 |
BS-499996 |
PISTON RING SET STD Not Available This part replaces BS-394665. Price: |
| 21 |
BS-260924 |
LOCK PISTON PIN Not Available Price: |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 24 |
76-0940 |
END COVER ASM Price: $431.83 |
| 24 |
BS-222299 |
LOCK Not Available Price: |
| 25 |
BS-92909 |
SCREW CONNECTING ROD Not Available Price: |
| 26 |
BS-261185 |
VALVE EXHAUST Not Available Price: |
| 27 |
BS-261462 |
VALVE INTAKE Not Available Price: |
| 28 |
BS-65906 |
SPRING Not Available Price: |
| 29 |
BS-26828 |
SPRING Not Available Price: |
| 30 |
BS-690656 |
VALVE RETAINER Not Available This part replaces BS-221596. Price: |
| 31 |
BS-691939 |
VALVE RETAINER Not Available This part replaces BS-292260. Price: |
| 32 |
BS-494553 |
RETAINER-ROTO Not Available This part replaces BS-93630. Price: |
| 33 |
BS-262248 |
TAPPET, VALVE Not Available Price: |
| 34 |
BS-212897 |
CAMSHAFT & GEAR Not Available Price: |
| 35 |
BS-67218 |
ELBOW-FUEL LINE Not Available Price: |
| 37 |
BS-262348 |
GOVERNOR LINK Not Available Price: |
| 38 |
BS-796260 |
GOVERNOR SPRING Not Available This part replaces BS-260695. Price: |
| 39 |
BS-691968 |
Governor/Oil Slinger This part replaces BS-490815. Price: $46.54 |
| 40 |
BS-491593 |
PLATE-CONTROL Not Available Price: |
| 41 |
BS-692012 |
Governor Crank This part replaces BS-231058. Price: $47.28 |
| 43 |
BS-691691 |
Washer (Governor Crank) This part replaces BS-222450. Price: $10.24 |
| 44 |
BS-692207 |
LINK SPRING Not Available This part replaces BS-260584. Price: |
| 45 |
BS-298090S |
Fuel Filter, 1/4", 298090 This part replaces BS-298090. Price: $5.76 |
| 46 |
BS-691024 |
Clamp-Casing This part replaces BS-221535. Price: $6.90 |
| 47 |
710-0432 |
HEX SCREW #10-32 x .38 Not Available Price: |
| 48 |
BS-222744 |
SHIELD CYLINDER Not Available Price: |
| 49 |
BS-93163 |
Screw, Cylinder Shield Mtg Sems Price: Call Us |
| 50 |
BS-222725 |
COVER CYLINDER HEAD Not Available Price: |
| 51 |
BS-691077 |
Washer (Ground Terminal) This part replaces BS-92791. Price: $11.38 |
| 52 |
712-0142 |
Nut, Hex, #8-32 Price: $3.90 |
| 53 |
BS-690593 |
OIL FILL BRACKET Not Available This part replaces BS-223394. Price: |
| 54 |
BS-691084 |
Terminal Ground This part replaces BS-93722. Price: $11.38 |
| 55 |
BS-391841 |
CAP & DIPSTICK, OIL FILLER Not Available Price: |
| 56 |
BS-281370S |
Seal-Dipstick Tube This part replaces BS-68838. Price: $6.73 |
| 57 |
BS-280134 |
OIL FILLER TUBE Not Available Price: |
| 58 |
BS-231597 |
BUSHING-SHAFT (BS-49 Not Available Price: |
| 59 |
BS-92613 |
BOLT Not Available Price: |
| 60 |
BS-231082 |
HEX NUT Not Available Price: |
| 61 |
BS-791850 |
Clamp-Hose (Green) This part replaces BS-93053. Price: $3.78 |
| 62 |
BS-93306 |
COTTER PIN Not Available Price: |
| 63 |
BS-93307 |
RETAINER Not Available Price: |
| 64 |
BS-692407 |
Governor Shaft Seal This part replaces BS-491323. Price: $8.27 |
| 65 |
BS-690804 |
SLOTTED HEX SCREW Not Available This part replaces BS-93496. Price: |
| 66 |
BS-691284 |
TIMING GEAR Not Available This part replaces BS-262135. Price: |
| 67 |
BS-212359 |
LINK COUNTERWEIGHT Not Available Price: |
| 69 |
BS-298909 |
Pin, Counterweight Price: $8.83 |
| 70 |
BS-93875 |
Screw, Counterweight Price: Call Us |
| 71 |
BS-691870 |
O-RING SEAL Not Available This part replaces BS-270920. Price: |
| 73 |
BS-691802 |
INTAKE VALVE SEAT Not Available This part replaces BS-261463. Price: |
| 74 |
BS-210940 |
EXHAUST VALVE SEAT Not Available Price: |
| 75 |
BS-261961 |
VALVE GUIDE Not Available Price: |
| 76 |
BS-691972 |
Insulator This part replaces BS-398525. Price: $9.75 |
| 77 |
BS-39572 |
Screw, Carburetor Price: Call Us |
| 78 |
BS-261242 |
ECCENTRIC Not Available Price: |
| 79 |
BS-94160 |
Pin, Eccentric Price: $3.30 |
| 752B010501 |

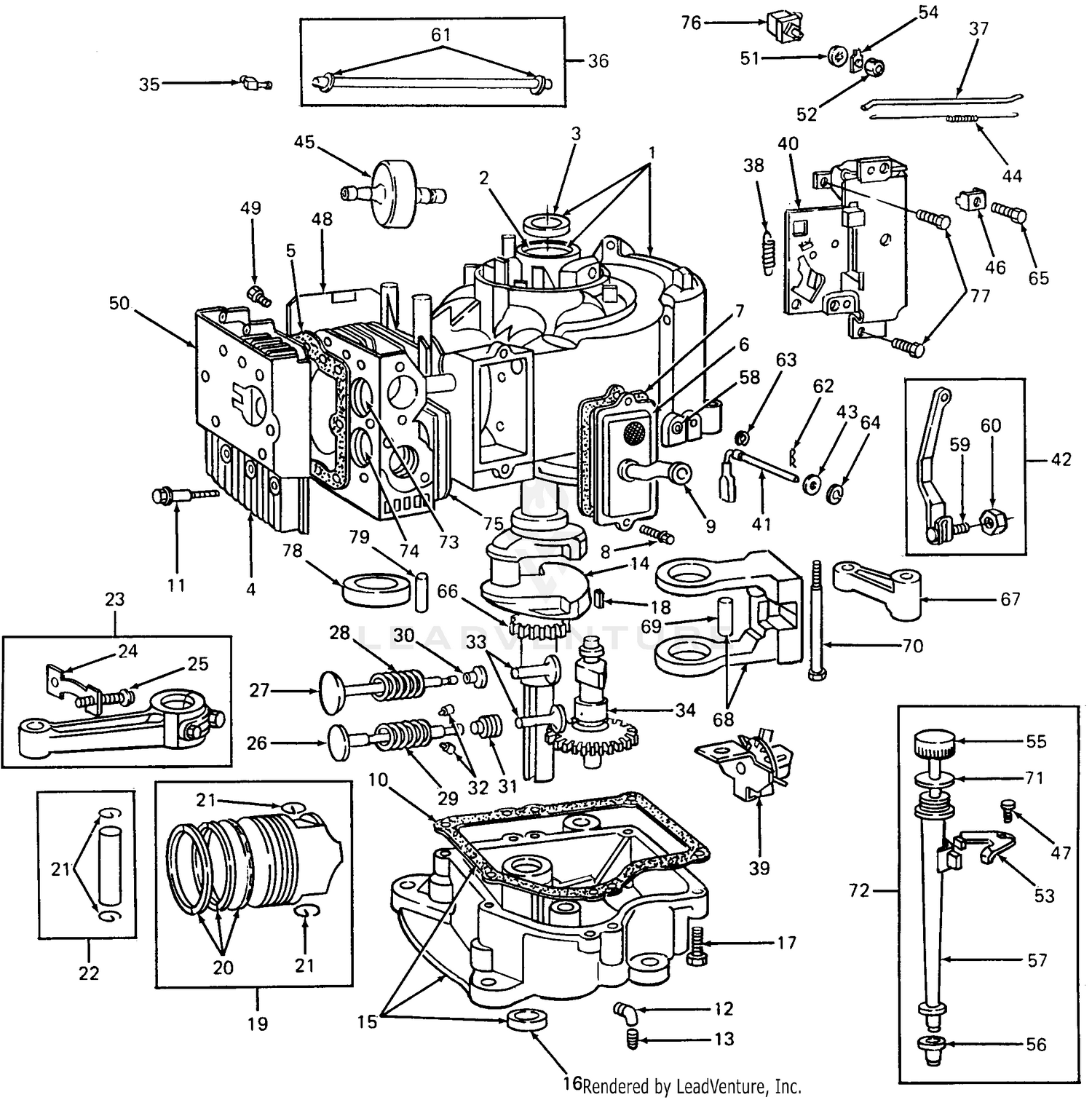

Engine |
Assembly - 10 HP Price: Call Us 752B010501 |
| 501152801 |
501152801 |
NEEDLE BEARING Price: $19.99 |
| 501289302 |
501289302 |
GASKET Price: $6.99 |
| 502258001 |
502258002 |
CYLINDER This part replaces 502258001. Price: $159.99 |
| 502271901 |
537141901 |
PLATE This part replaces 502271901. Price: $7.99 |
| 503235111 |
503235111 |
SPARK PLUG M14X1.25 NGK BPMR7A Price: $4.99 |
| 503235112 |
503235112 |
BPMR6A NGK SPARK PLUG Price: $8.99 |
| 503289015 |
503289015 |
PISTON RING Price: $14.99 |
| 737431200 |
737431200 |
WRIST PIN CLIP Price: $3.99 |
