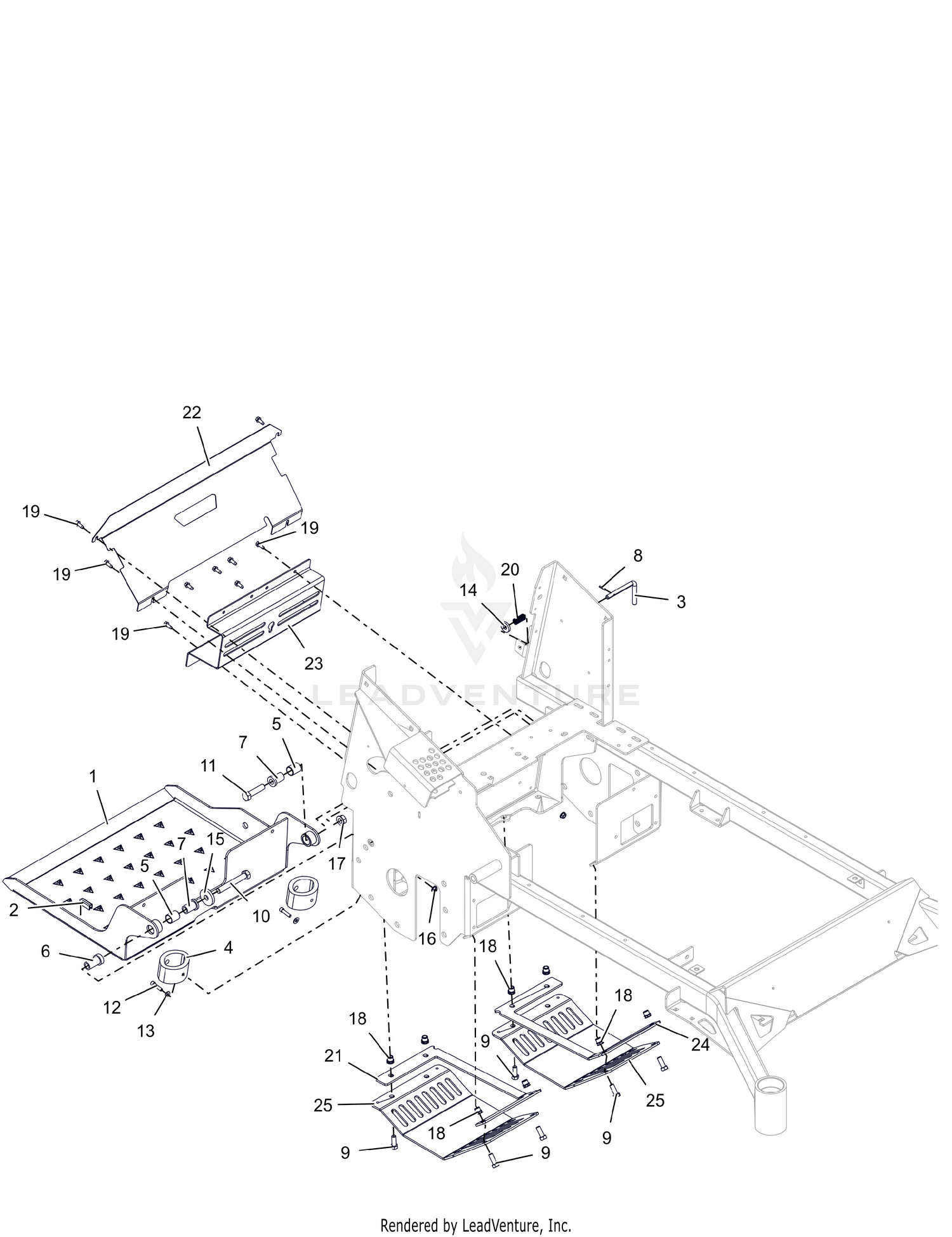

| Ref | Part Number | Description |
|---|
| 1 |
30196251 |
WLDMT, OPERATOR PLATFORM (BLACK) Price: Call Us |
| 2 |
00918200 |
STRIP, COWL Price: $5.45 |
| 3 |
05254400 |
PIN- PLATFORM LOCK Price: $31.45 |
| 4 |
05255200 |
BUMPER, PLATFORM Price: $30.45 |
| 5 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 6 |
05501526 |
BSHG-FLG .515X.746X1.681X1.000 Price: $39.95 |
| 7 |
05527200 |
BSHG-FLG .515X.746X1.290X1.000 Price: $26.95 |
| 8 |
05803400 |
PIN-ROLL .125X.75 Price: $0.45 |
| 9 |
05901721 |
BLT, HEX .38-16X1.00 G8ZCCEP30 Price: $1.95 |
| 10 |
05901735 |
BLT, HEX .50-13X3.50F G5 ZCC Price: $5.45 |
| 11 |
05901929 |
BLT, HEX .50-13X2.00 G5 ZCC Price: $2.95 |
| 12 |
05902033 |
SCR, SKH .25-20X1.00 Price: $1.45 |
| 13 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC Price: $0.45 |
| 14 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 15 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 16 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 17 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 18 |
07002412 |
NUT, THREADED INSERT .38-16 ZC120 Price: Call Us |
| 19 |
07400135 |
SCR,TAP .25-20X.625 HWH ZCC Price: $2.45 |
| 20 |
08300028 |
SPRING, COMPRESSION Price: $4.45 |
| 21 |
09695851 |
PLATE, SKID TENSION (BLACK) Price: Call Us |
| 22 |
09696059 |
PANEL- GUARD Price: $45.95 |
| 23 |
30197759 |
GUARD, FOOT (ORANGE) Price: Call Us |
| 24 |
30149051 |
PLATE- LH SKID TENSION Price: $23.95 |
