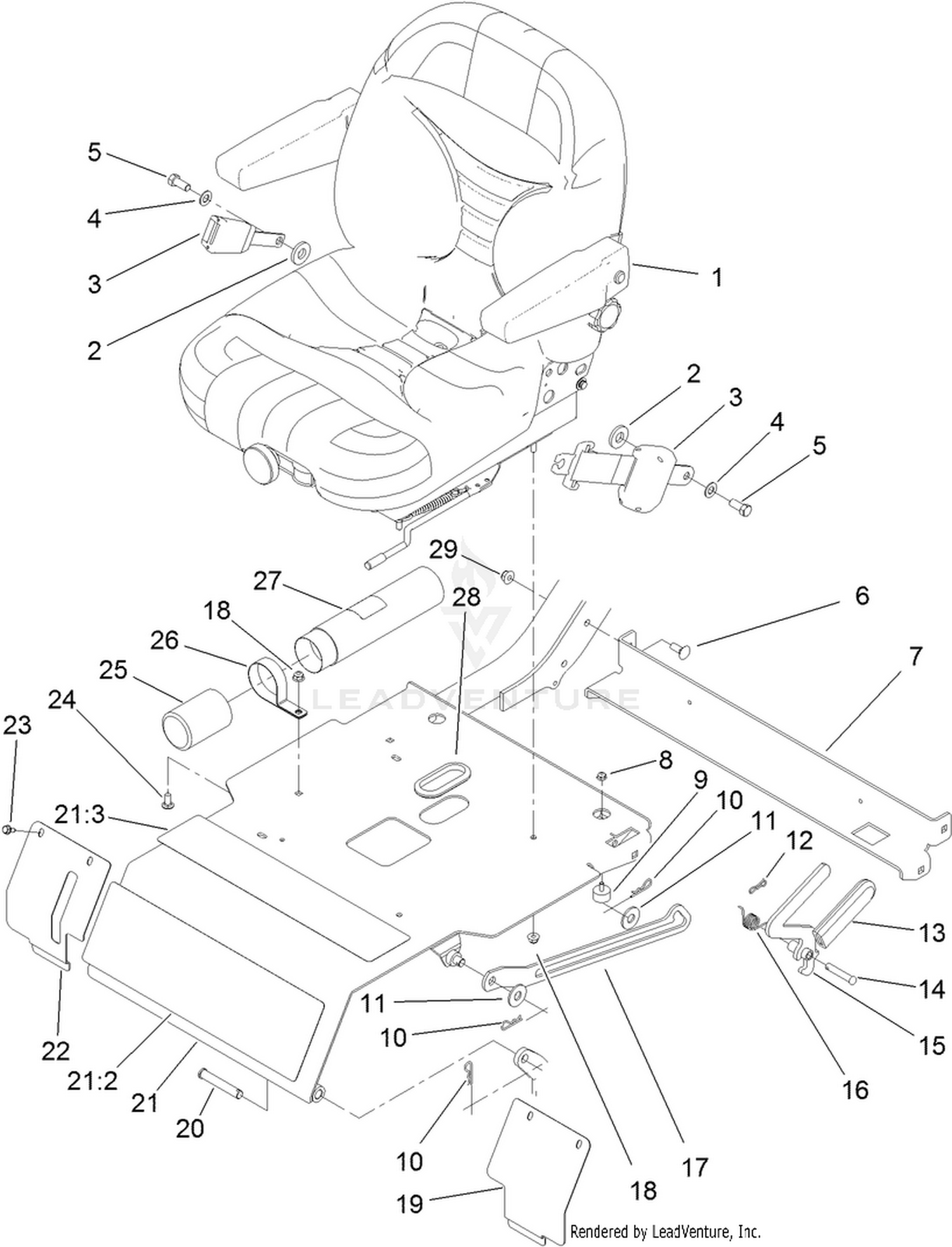

Seat and Seat Plate Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-2286 | SEAT Price: $1,815.98 |
| 2 | 99-7667 | WASHER-FLAT Price: $4.80 |
| 3 | 110-0413 | SEATBELT-RETRACTABLE Price: $286.99 |
| 4 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 5 | 3212-4 | SCREW-HH Price: $2.73 |
| 6 | 3231-2 | BOLT-CARR Price: $0.81 |
| 7 | 120-0095-03 | SUPPORT-SEAT Price: $76.25 |
| 8 | 104-7201 | NUT-HF Price: $0.69 |
| 9 | 240-14 | BUMPER-RUBBER Price: $13.84 |
| 10 | 3290-467 | PIN-HAIR Price: $0.27 |
| 11 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 12 | 119-1415 | PIN-COTTER, LOCKING Price: $0.22 |
| 13 | 1-633268 | GRIP-LEVER Price: $13.99 |
| 14 | 283-82 | PIN-CLEVIS Price: $3.94 |
| 15 | 140-7053 | LEVER-SEAT This part replaces 121-3390-03. Price: $25.57 |
| 16 | 121-3386 | SPRING-TORSION Price: $10.33 |
| 17 | 120-0097-03 | PROP-SEAT Price: $36.69 |
| 18 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 19 | 120-9191-03 | COVER-LH Price: $27.70 |
| 20 | 283-55 | PIN-CLEVIS Price: $11.14 |
| 21 | 120-9197 | SEAT PLATE ASM Price: $387.22 |
| 22 | 120-9192-03 | COVER-RH Price: $27.70 |
| 23 | 32144-10 | SCREW-HWH Price: $4.29 |
| 24 | 3230-23 | SCREW-CARR Price: $0.89 |
| 25 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 26 | 2412-133 | CLAMP-R Price: $3.19 |
| 27 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 28 | 237-164 | GROMMET Price: $16.34 |
