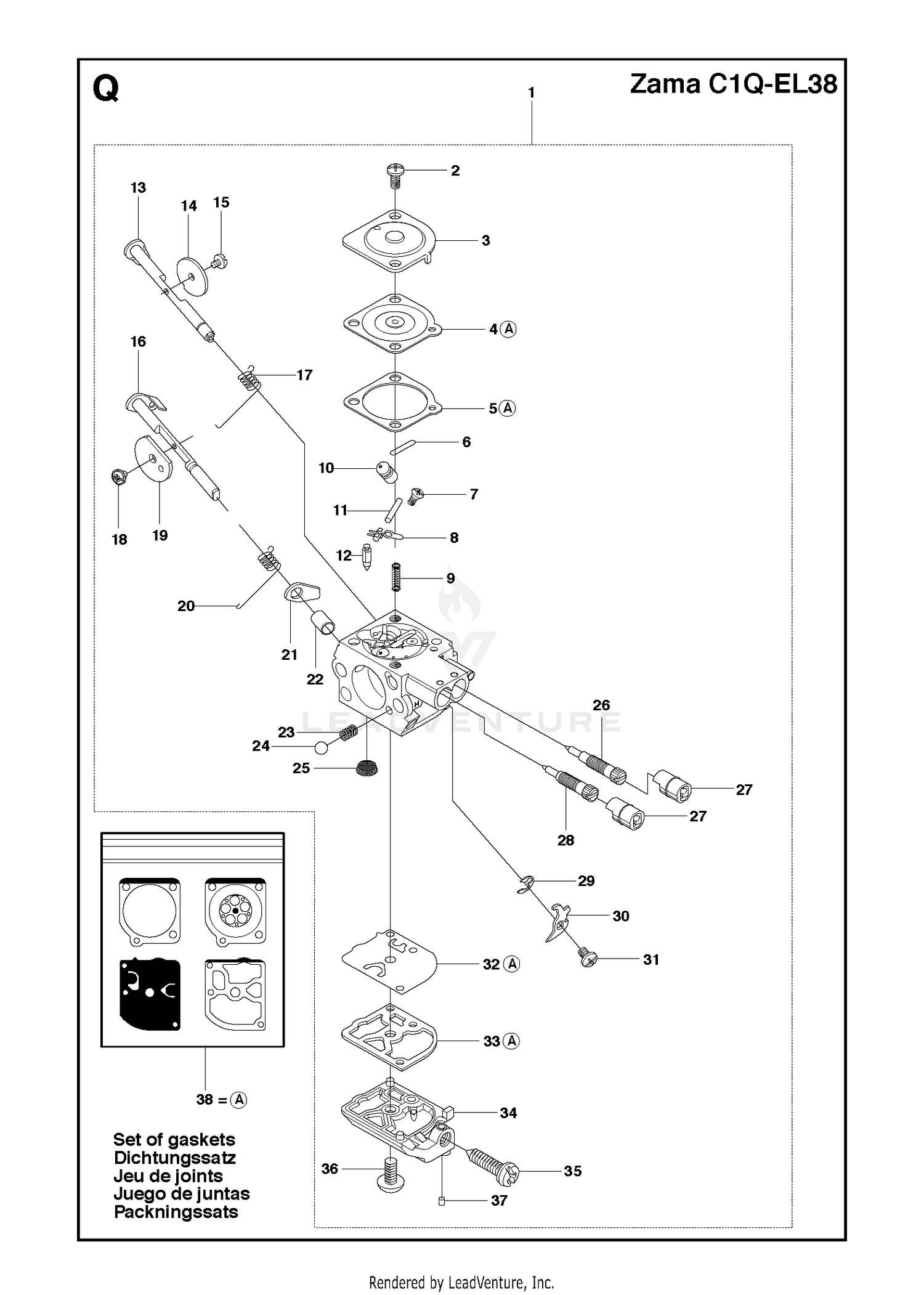

CARBURETOR DETAILS
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 323-6 | SCREW-HH Price: $0.66 |
| 2 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 3 | 503974301 | COVER Price: $5.99 |
| 4 | 504105601 | DIAPHRAGM Price: $14.99 |
| 4 | 94-5321-03 | GUARD-MUFFLER This part replaces 94-5321. Price: $214.85 |
| 5 | 3274-84 | SCREW-HSH Price: $2.51 |
| 5 | 537020401 | GASKET Price: $3.99 |
| 6 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 6 | 503535601 | PLUG Price: $3.99 |
| 7 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 7 | 503480101 | SCREW Price: $2.99 |
| 8 | 46-6560 | BUSHING Price: $2.94 |
| 8 | 503665901 | LEVER Price: $3.99 |
| 9 | 109-0275 | HOSE-FUEL This part replaces 94-6809. Price: $12.99 |
| 10 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 10 | 537387301 | JET Price: $12.99 |
| 11 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 11 | 94-6805 | STAND PIPE ASM - FUEL Price: $30.04 |
| 12 | 115-5304 | CAP-FUEL This part replaces 93-3101. Price: $26.87 |
| 12 | 503479701 | INLET NEEDLE Price: $8.99 |
| 13 | 504102701 | SHAFT ASSY Price: $24.99 |
| 13 | 94-6815 | BRACKET - FRONT Price: $45.14 |
| 14 | 27-7310 | DECAL-REFUELING Price: $27.52 |
| 14 | 537417201 | THROTTLE Price: $6.99 |
| 15 | 503479201 | SCREW Price: $2.99 |
| 15 | 94-3435 | TANK - FUEL, 4.5 GA Price: $229.84 |
| 16 | 32136-4 | NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 16 | 501327101 | SHAFT ASSY Price: $32.99 |
| 17 | 3256-57 | WASHER-FLAT Price: $0.41 |
| 17 | 544372401 | RETURN SPRING Price: $3.99 |
| 18 | 3-3287 | SPACER Price: $3.69 |
| 18 | 503481801 | SCREW Price: $2.99 |
| 19 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 19 | 537370301 | CHOKE CAP Price: $6.99 |
| 20 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 20 | 544372601 | SPRING Price: $2.99 |
| 21 | 544372501 | LEVER Price: $6.99 |
| 22 | 544427001 | SLEEVE Price: $4.99 |
| 23 | 537012601 | SPRING Price: $2.99 |
| 24 | 537012501 | BALL Price: $2.99 |
| 25 | 503481301 | FUEL INLET SCREEN Price: $2.99 |
| 27 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 29 | 537385201 | CLIP Price: $2.99 |
| 30 | 537417401 | LEVER Price: $5.99 |
| 31 | 503479001 | SCREW Price: $2.99 |
| 32 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 33 | 537020101 | GASKET Price: $3.99 |
| 34 | 537416801 | COVER Price: $24.99 |
| 35 | 537020701 | SCREW Price: $6.99 |
| 36 | 503479601 | SCREW Price: $2.99 |
| 37 | 503481101 | PLUG Price: $3.99 |
