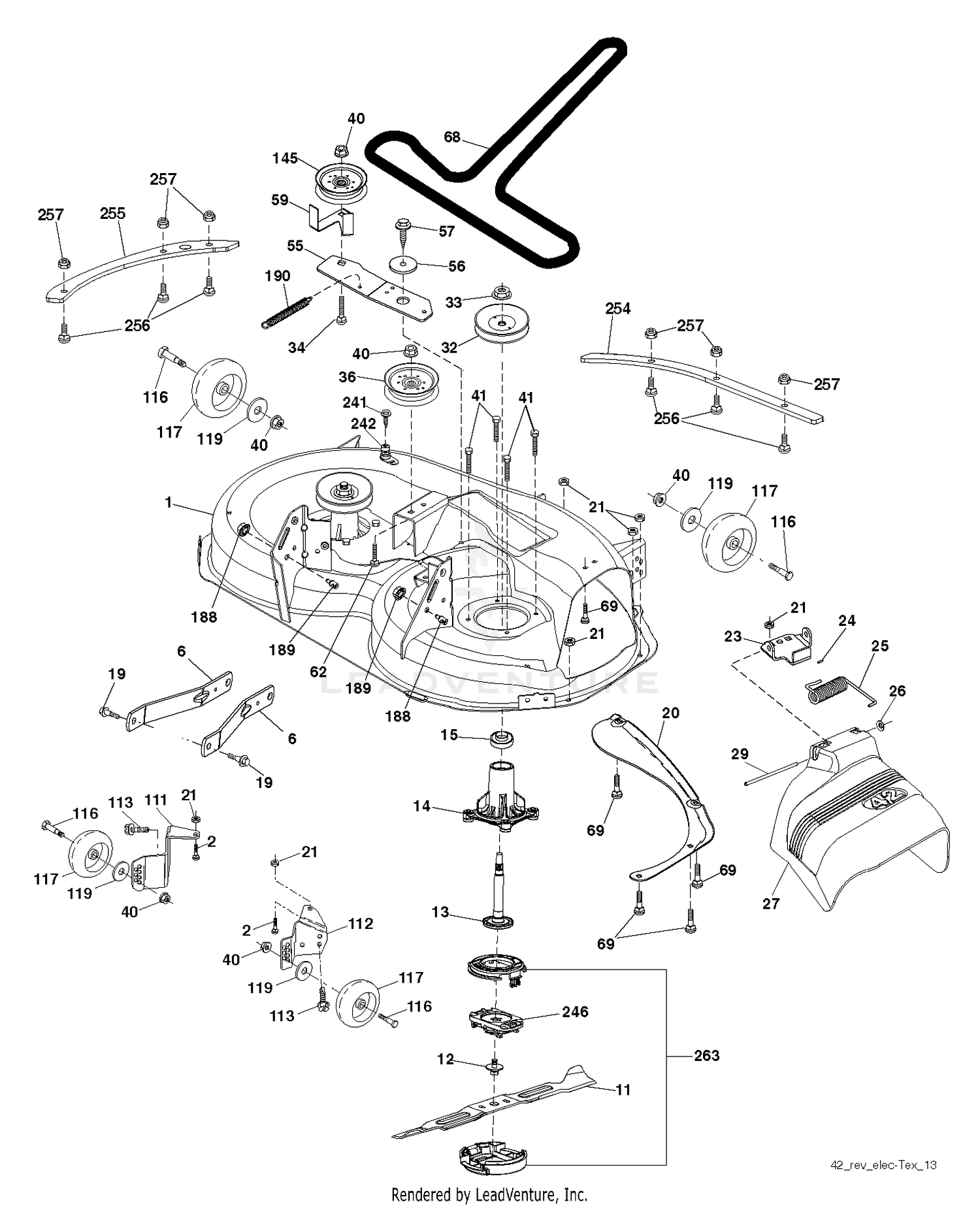

| Ref | Part Number | Description |
|---|
| 1 |
598602801 |
Decks This part replaces 532441275. Price: $349.99 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 11 |
580921101 |
BLADE.REVOLUTION.42"3IN1.PT43 Price: $24.99 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
587820201 |
KIT,MANDREL,NONGREASE,REVOL This part replaces 580854701. Price: $32.99 |
| 14 |
587820201 |
KIT,MANDREL,NONGREASE,REVOL This part replaces 580796101. Price: $32.99 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 55 |
531171201 |
SERVICE KIT IDLER.ARM.42" This part replaces 532437110. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 111 |
531170801 |
SERVICE KIT BRKT.WHEEL.GAUGE B This part replaces 532404784. Price: $8.99 |
| 112 |
531170901 |
SERVICE KIT BRKT.WHEEL.GAUGE B This part replaces 532404785. Price: $8.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 246 |
580954003 |
HOLDER.BLADE.REVOLUTION Price: $179.99 |
| 254 |
585316805 |
PLATES.RENFRC.42DECK.PT431FRNT Price: $11.99 |
| 255 |
585317005 |
PLATES.RENFRCE.42DECK.X431SIDE Price: $11.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 263 |
586638501 |
CAP.REVOLUTION ASM Price: $29.99 |
