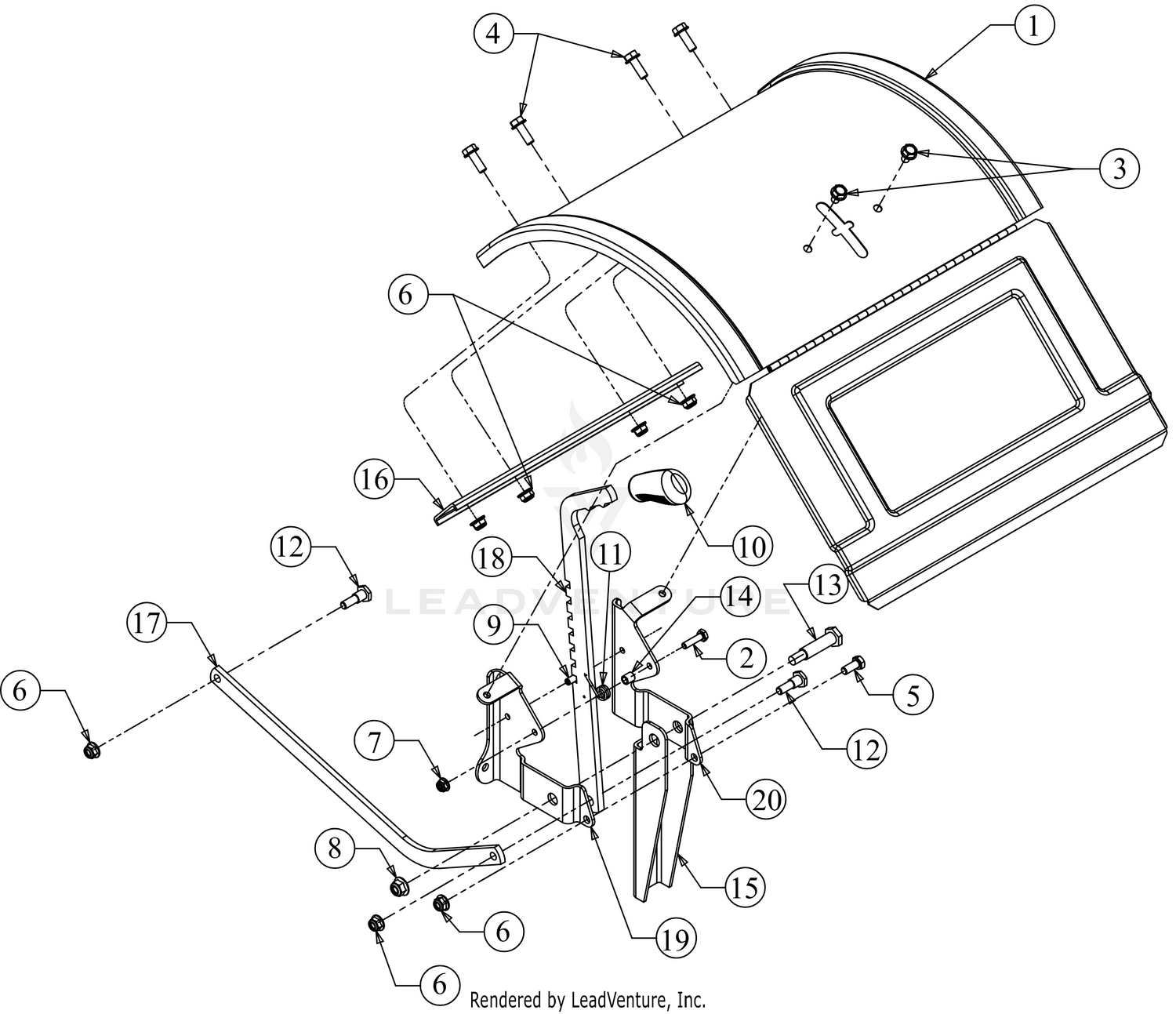

Tine Shield
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 686-04077B-0638 | TINE SHIELD ASSEMBLY Price: $171.74 |
| 2 | 710-0597 | SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 3 | 710-0604A | SCREW 5/16-18 x .625 Price: $3.96 |
| 4 | 710-1238A | SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 5 | 710-3008 | SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 8 | 712-04065 | NUT Price: $3.68 |
| 9 | 715-0108 | SPRING PIN 1/4 x 1.00 Price: $4.38 |
| 10 | 720-04163 | GRIP Price: $8.03 |
| 11 | 732-04320 | TORSION SPRING Price: $3.85 |
| 12 | 738-04320 | SHOULDER SCREW Price: $4.56 |
| 13 | 738-0533 | SCREW:SHLDR:0.498X1.630:3/8-16 This part replaces 938-0533. Price: $7.42 |
| 14 | 750-05349 | ROUND SPACER Price: $3.50 |
| 15 | 786-04092-0638 | REVERSE STOP ARM Price: $24.18 |
| 16 | 786-04098-0638 | SUPPORT BRACKET Price: $28.70 |
| 17 | 786-04104-0638 | DEPTH DRAG BAR Price: $32.17 |
| 18 | 786-04292A-0638 | DEPTH BAR Price: $58.80 |
| 19 | 786-04363-0638 | TAIL BRACKET (LH) Price: $21.77 |
