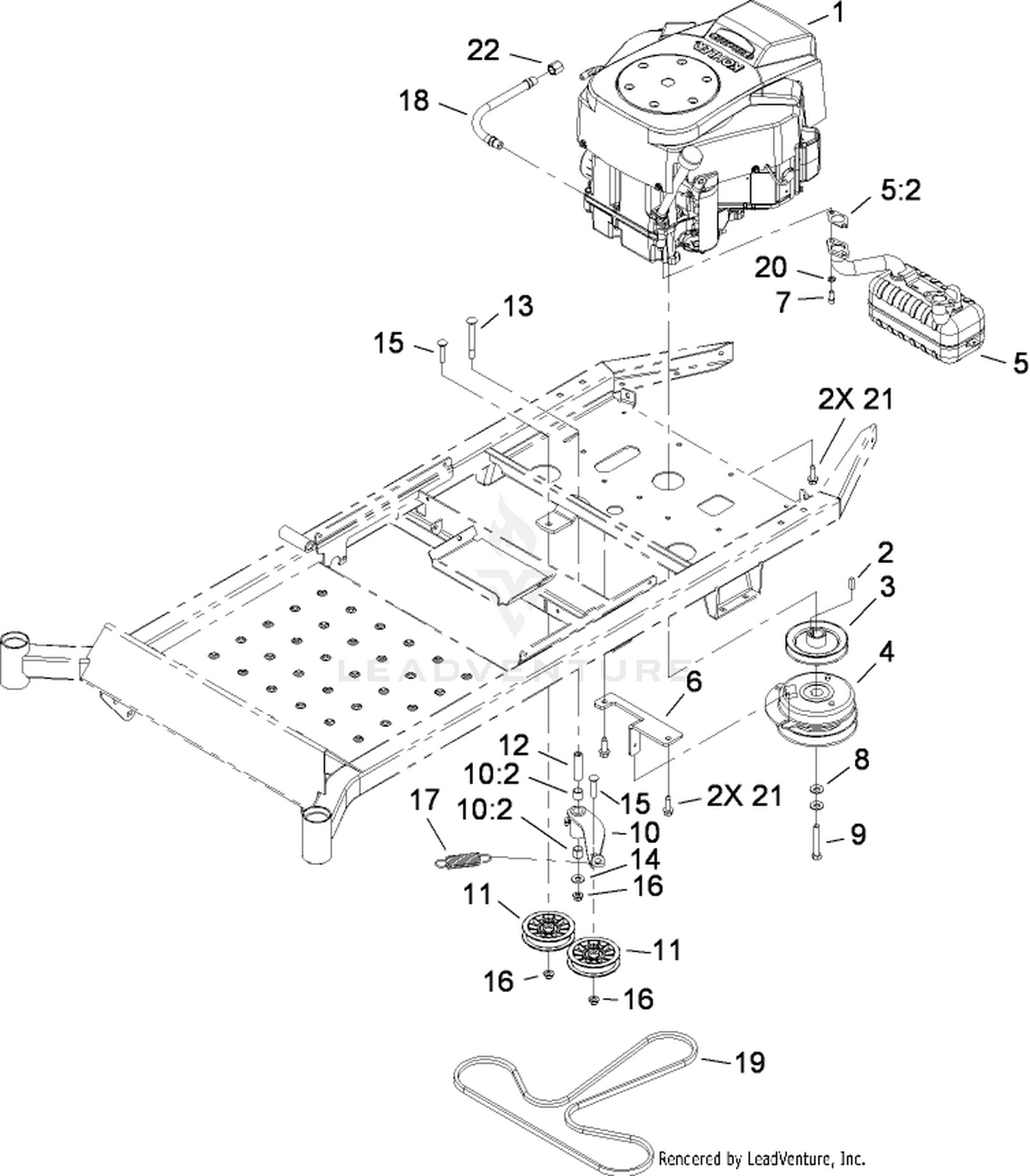

| Ref | Part Number | Description |
|---|
| 2 |
5-7280 |
KEY Price: $4.64 |
| 3 |
109-3386 |
SHEAVE-SPLIT STEEL Price: $38.62 |
| 4 |
110-6766 |
CLUTCH-ELECTRIC, PTO Price: $392.90 |
| 5 |
109-8951 |
MUFFLER ASM Price: $142.53 |
| 6 |
109-8855-03 |
ANCHOR-CLUTCH Price: $28.44 |
| 7 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 8 |
1-603610 |
WASHER-SPRING Price: $3.19 |
| 9 |
3212-11 |
SCREW-HH Price: $7.59 |
| 10 |
109-9162 |
IDLER ARM ASM Price: $91.80 |
| 11 |
109-3397 |
PULLEY-IDLER, FLAT Price: $17.19 |
| 12 |
1-603384 |
BUSHING-PIVOT, IDLER Price: $8.74 |
| 13 |
3231-11 |
SCREW-CARR Price: $4.09 |
| 14 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 15 |
3231-5 |
SCREW-CARR Price: $1.39 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
1-603402 |
SPRING-EXTENSION Price: $5.46 |
| 18 |
82-4201 |
HYD HOSE ASM Price: $46.23 |
| 19 |
126-9835 |
BELT-V This part replaces 109-3388. Price: $41.99 |
| 20 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 21 |
32144-109 |
SCREW-THD Price: $1.29 |
