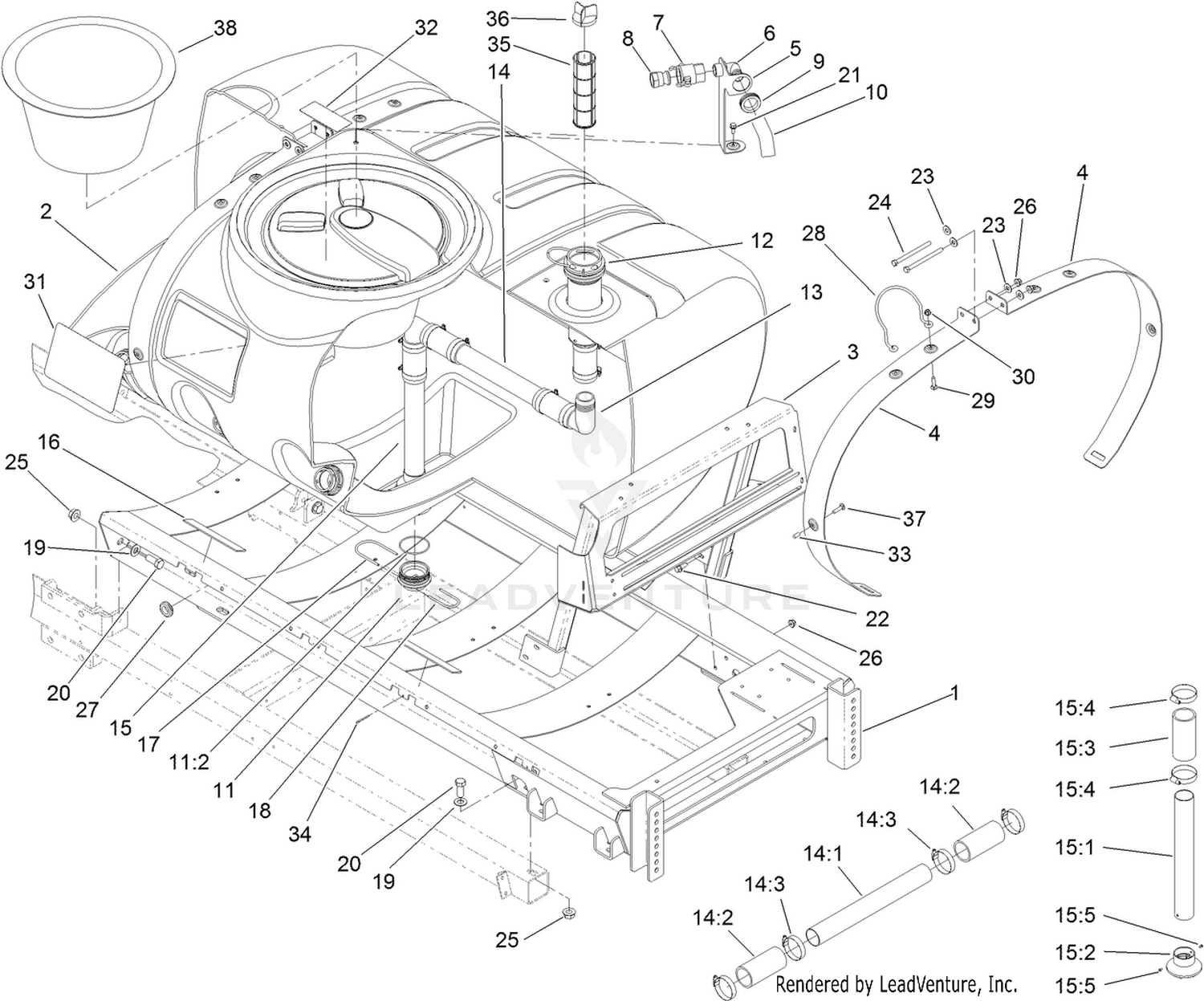

Saddle and Tank Mount
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-8010-03 | TANK SADDLE ASM Price: $1,553.92 |
| 2 | 117-8005 | TANK ASM Price: $2,772.40 |
| 3 | 117-7927-03 | VALVE-SUPPORT Price: $310.72 |
| 4 | 117-8029-03 | BAND-TANK Price: $87.15 |
| 5 | 110-5082-03 | BRACKET-ANTI SIPHON Price: $55.49 |
| 6 | 41140 | ELBOW Price: $11.18 |
| 7 | 100-6779 | COUPLING-FEMALE Price: $58.88 |
| 8 | 41316 | ADAPTER-QUICK Price: $31.51 |
| 9 | 110-5090 | GROMMET Price: $7.08 |
| 10 | 110-5088 | HOSE-FILL Price: $18.92 |
| 11 | 117-7928 | ADAPTER ASM Price: $36.88 |
| 12 | 120-0716 | FILTER ASM Price: $190.25 |
| 13 | 104-9095 | ELBOW Price: $14.00 |
| 14 | 117-7955 | MIDDLE SUCTION TUBE ASM Price: $145.61 |
| 15 | 117-7956 | LOWER SUCTION TUBE ASM Price: $107.90 |
| 16 | 104-7102 | PAD-BATTERY Price: $3.53 |
| 17 | 117-7996 | FORK Price: $9.74 |
| 18 | 100-8635 | FORK Price: $4.91 |
| 19 | 3256-27 | WASHER-FLAT Price: $0.47 |
| 20 | 327-4 | SCREW-HH Price: $2.20 |
| 21 | 3234-5 | SCREW-HHF Price: $0.42 |
| 22 | 3234-11 | SCREW-HHF Price: $1.23 |
| 23 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 24 | 120-0649 | BOLT-TAP HH Price: $12.44 |
| 25 | 32128-50 | NUT-FLANGE Price: $1.78 |
| 26 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 27 | 1-543286 | GROMMET Price: $7.85 |
| 28 | 119-5019 | STOP-LID Price: $29.34 |
| 29 | 3230-2 | BOLT-CARR Price: $0.47 |
| 30 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 31 | 119-5042 | DECAL-TANK Price: $65.87 |
| 32 | 120-0622 | DECAL-WARNING Price: $9.31 |
| 33 | 42452 | CAP-PROTECTIVE Price: $1.13 |
| 34 | 3290-343 | PIN-HAIR Price: $0.76 |
| 35 | 100-6991 | ELEMENT-FILTER, GREEN Price: $63.09 |
| 35 | 100-6992 | ELEMENT-FILTER, RED Price: $64.02 |
| 35 | 100-8642 | SCREEN-SUCTION Price: $64.17 |
| 36 | 100-8641 | VANE-SCREEN Price: $32.05 |
| 37 | 3230-1 | BOLT-CARR Price: $1.49 |
