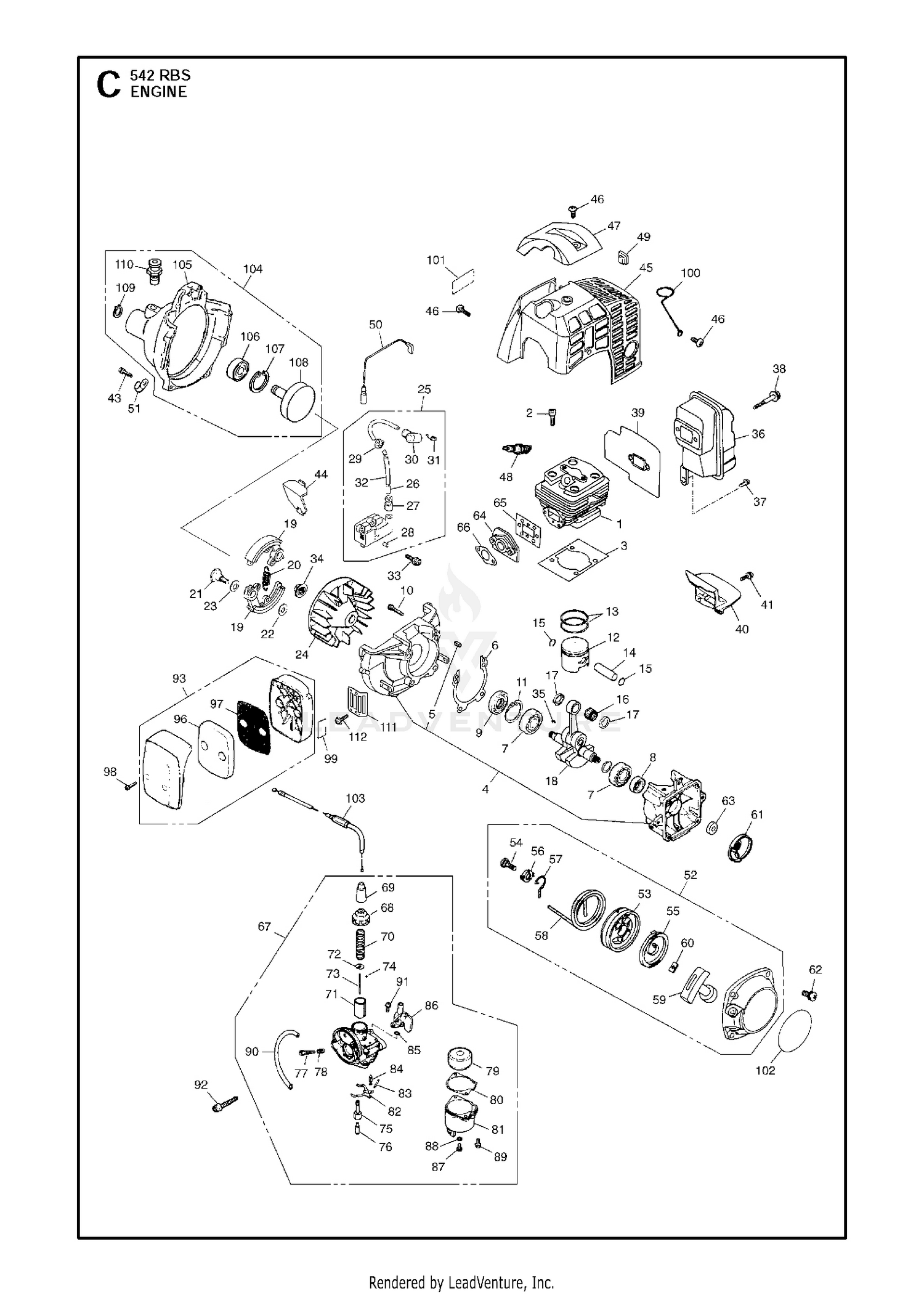

ENGINE
Parts (108)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515361401 | CYLINDER Price: $32.99 |
| 2 | 513412501 | BOLT Price: $2.99 |
| 3 | 510064301 | GASKET Price: $4.99 |
| 4 | 585565201 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 505296101 | PIN Price: $2.99 |
| 6 | 505296401 | GASKET Price: $2.99 |
| 7 | 597610701 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 504121501 | SEAL Price: $7.99 |
| 9 | 505296701 | SEAL Price: $6.99 |
| 10 | 506609401 | BOLT Price: $2.99 |
| 11 | 504121001 | RING Price: $2.99 |
| 12 | 505296901 | PISTON Price: $34.99 |
| 13 | 510917901 | RING, PISTON 2/PK Price: $7.99 |
| 14 | 522639301 | PIN Price: $3.99 |
| 15 | 516283001 | RING Price: $2.99 |
| 16 | 505297301 | ROLLER BEARING Price: $6.99 |
| 17 | 513752401 | WASHER Price: $5.99 |
| 18 | 585153001 | CRANKSHAFT COMPL Price: $109.99 |
| 19 | 599764701 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 599764801 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 505297801 | SCREW Price: $4.99 |
| 22 | 505298001 | WASHER Price: $2.99 |
| 23 | 505298101 | WASHER Price: $2.99 |
| 24 | 521743401 | ROTOR Price: $49.99 |
| 26 | 505298401 | CORD.HIGH Price: $2.99 |
| 27 | 516744001 | RP_CAP This part replaces 505042801. Price: $2.99 |
| 28 | 521743701 | PIN Price: $1.99 |
| 29 | 521358801 | RP GROMMET This part replaces 515415301. Price: $2.99 |
| 30 | 505298801 | CAP Price: $5.99 |
| 31 | 515415201 | SPRING Price: $2.99 |
| 32 | 521749501 | TUBE (RPLS 263072210) Price: $2.99 |
| 33 | 514233801 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 516437401 | NUT(RPLS 1140-43230&182301) This part replaces 504118001. Price: $2.99 |
| 35 | 506689401 | KEY Price: $2.99 |
| 36 | 515369901 | MUFFLER Price: $29.99 |
| 37 | 505299401 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 505299501 | BOLT Price: $2.99 |
| 39 | 526522801 | GASKET Price: $5.99 |
| 40 | 505299701 | PLATE.MUFFLER Price: $4.99 |
| 41 | 505299801 | SCREW Price: $2.99 |
| 43 | 505300201 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 505300401 | PLATE Price: $14.99 |
| 45 | 577328101 | NEEDS DESCRIPTION Price: Call Us |
| 46 | 505300601 | SCREW Price: $2.99 |
| 47 | 505301101 | NEEDS DESCRIPTION Price: Call Us |
| 48 | 530030179 | PLUG SPARK (RCJ6-Y) This part replaces 503235109. Price: $3.99 |
| 49 | 505301301 | GROMMET Price: $2.99 |
| 50 | 521743601 | CORD Price: $4.99 |
| 51 | 544264901 | RP_CLAMP This part replaces 521525101. Price: $2.99 |
| 52 | 515366901 | RECOIL ASSY Price: $39.99 |
| 53 | 504114701 | REEL Price: $9.99 |
| 54 | 515367101 | SCREW Price: $2.99 |
| 55 | 504115001 | SPRING, SPIRAL Price: $9.99 |
| 56 | 504114601 | COLLAR Price: $3.99 |
| 57 | 504114801 | SWING ARM Price: $4.99 |
| 58 | 505302801 | NEEDS DESCRIPTION Price: Call Us |
| 59 | 505303401 | KNOB Price: $6.99 |
| 60 | 504114001 | KNOB Price: $3.99 |
| 61 | 504114401 | PULLEY Price: $7.99 |
| 62 | 505304401 | SCREW Price: $2.99 |
| 63 | 505304601 | COLLAR Price: $2.99 |
| 64 | 515369801 | INSULATOR Price: $5.99 |
| 65 | 505304901 | GASKET Price: $3.99 |
| 66 | 515369701 | GASKET Price: $0.79 |
| 67 | 512277901 | NEEDS DESCRIPTION Price: Call Us |
| 68 | 513369701 | NEEDS DESCRIPTION Price: Call Us |
| 69 | 513192101 | CAP Price: $2.99 |
| 70 | 513231801 | SPRING.THROTTLE Price: $1.99 |
| 71 | 515370401 | VALVE.THROTTLE Price: $52.99 |
| 72 | 521730801 | NEEDS DESCRIPTION Price: Call Us |
| 73 | 515370501 | NEEDLE Price: $13.99 |
| 74 | 513165201 | NEEDS DESCRIPTION Price: Call Us |
| 75 | 513357501 | NEEDS DESCRIPTION Price: Call Us |
| 76 | 513357601 | JET Price: $6.45 |
| 77 | 513682901 | SCREW.ADJUST Price: $3.99 |
| 78 | 513370401 | SPRING Price: $0.74 |
| 79 | 513232201 | FLOAT Price: $10.47 |
| 80 | 513245901 | PACKING Price: $3.11 |
| 81 | 513245801 | CHAMBER Price: $18.77 |
| 82 | 513246001 | HINGE Price: $8.99 |
| 83 | 513246101 | PIN Price: $0.12 |
| 84 | 513246301 | VALVE.NEEDLE Price: $16.99 |
| 85 | 513246601 | RING Price: $1.10 |
| 86 | 513251701 | COCK Price: $21.99 |
| 87 | 513246801 | NEEDS DESCRIPTION Price: Call Us |
| 88 | 513246901 | NEEDS DESCRIPTION Price: Call Us |
| 89 | 510464101 | NEEDS DESCRIPTION Price: Call Us |
| 90 | 515370701 | NEEDS DESCRIPTION Price: Call Us |
| 91 | 510464201 | SCREW Price: $0.06 |
| 92 | 510483201 | SCREW Price: $0.80 |
| 93 | 577328301 | NEEDS DESCRIPTION Price: Call Us |
| 96 | 513259301 | ELEMENT Price: $3.99 |
| 97 | 513247701 | SCREEN Price: $1.99 |
| 98 | 515370801 | SCREW Price: $0.99 |
| 99 | 513185301 | LABEL Price: $2.99 |
| 100 | 513494601 | NEEDS DESCRIPTION Price: Call Us |
| 101 | 577331701 | NEEDS DESCRIPTION Price: Call Us |
| 102 | 577331801 | NEEDS DESCRIPTION Price: Call Us |
| 103 | 510939001 | NEEDS DESCRIPTION Price: Call Us |
| 104 | 521743301 | NEEDS DESCRIPTION Price: Call Us |
| 105 | 525919701 | NEEDS DESCRIPTION Price: Call Us |
| 106 | 529269801 | BEARING Price: $5.99 |
| 107 | 506609901 | RING Price: $2.99 |
| 108 | 576203801 | NEEDS DESCRIPTION Price: Call Us |
| 109 | 516124101 | RING Price: $3.99 |
| 110 | 512527001 | STOPPER Price: $11.99 |
| 111 | 505296201 | GUARD Price: $1.99 |
| 112 | 505299801 | SCREW Price: $2.99 |
