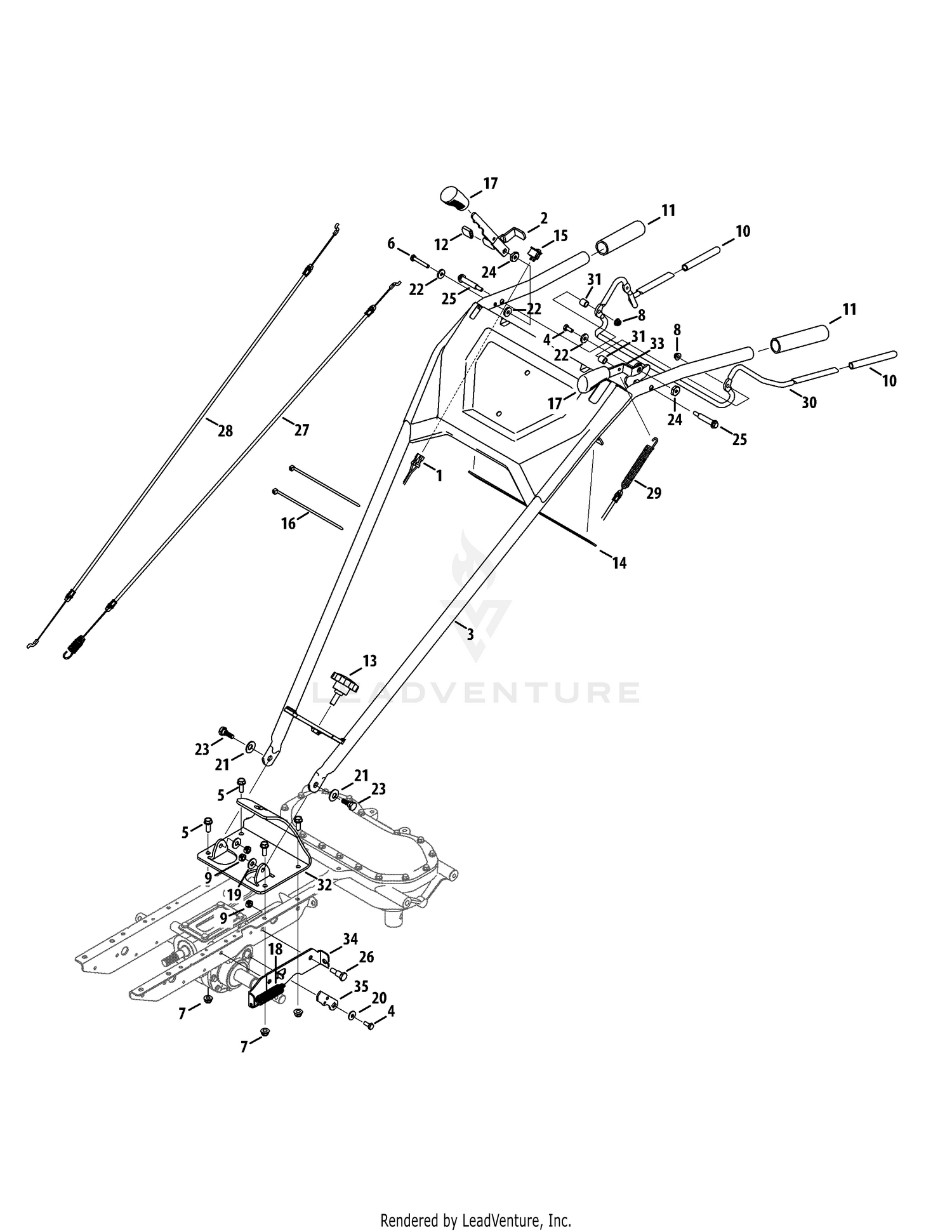

| Ref | Part Number | Description |
|---|
| 1 |
929-04157 |
Harness Assembly Adapter Price: $20.80 |
| 2 |
686-04135 |
REVERSE HANDLE ASSEMBLY This part replaces 686-04135-0638. Price: $19.56 |
| 3 |
686-05012-0638 |
HANDLE ASSEMBLY (MTD RED) Not Available Price: |
| 4 |
710-0433 |
Hex Screw, 1/4-20 x .625 Price: $4.02 |
| 5 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 6 |
710-3288 |
Hex Head Screw, 1/4-20 x 1.62 Price: $5.94 |
| 7 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 8 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 9 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 912-3009. Price: $5.99 |
| 10 |
720-0269 |
Clutch Grip Price: $4.24 |
| 11 |
720-0274 |
Grip, 1.0 x 5.0 Price: $9.99 |
| 12 |
920-04173 |
Reverse Handle Grip Price: $3.70 |
| 13 |
720-05076 |
Star Knob, 3/8-16 Price: $16.59 |
| 14 |
721-04687 |
Foam Tape, 1.25 x 13.53 x .10 Price: $11.07 |
| 15 |
725-2009 |
Rocker Switch Price: $4.53 |
| 16 |
726-0317 |
Cable Tie, 8.5 LG Price: $4.26 |
| 17 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 18 |
732-05201 |
EXTENSION SPRING Not Available Price: |
| 19 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 20 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 21 |
736-0407 |
Bell Washer, .45 x 1.00 x .062 Price: $3.64 |
| 22 |
736-0176 |
Flat Washer .265 x .938 x .120 This part replaces 936-0176. Price: $3.95 |
| 23 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 24 |
738-0440 |
Spacer, .375 x .165 Price: $5.45 |
| 25 |
738-05077 |
Shoulder Screw, 1/4-20 .375 x 1.62 Price: $5.52 |
| 26 |
738-0754 |
Shoulder Screw, .437 Dia. x .54 Price: $3.76 |
| 27 |
946-04413A |
Forward Cable Price: $30.97 |
| 28 |
946-04414A |
Cable (REV) This part replaces 746-04414A. Price: $34.13 |
| 29 |
946-05168 |
NEUTRAL CABLE Not Available Price: |
| 30 |
747-06372-0637 |
Clutch Bail Price: $33.68 |
| 31 |
750-06198 |
Spacer, .383 x .500 x .535 Price: $5.52 |
| 32 |
786-05015-0638 |
Height Adjustment Mounting Plate Price: $39.45 |
| 33 |
786-05018 |
NEUTRAL HANDLE Not Available Price: |
| 34 |
786-05019A-0638 |
NEUTRAL CABLE BRACKET(MTD RED) Not Available This part replaces 786-05019-0638. Price: |
