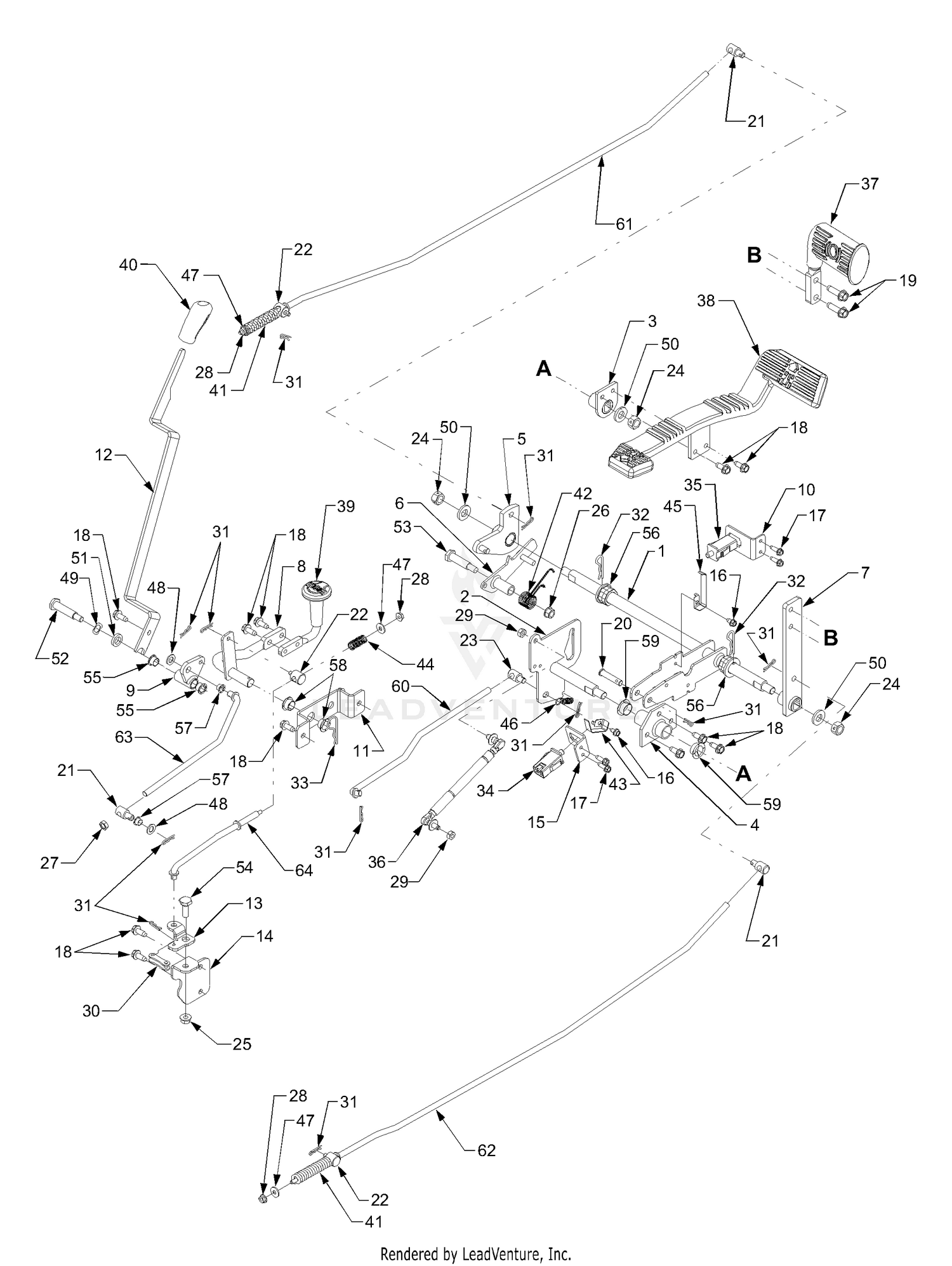

| Ref | Part Number | Description |
|---|
| 1 |
603-0671 |
BRAKE SHAFT ASSEMBLY Not Available Price: |
| 1 |
70-1480 |
RELAY Price: $105.19 |
| 2 |
3218-2 |
NUT-JAM Price: $0.25 |
| 2 |
603-0672A |
FWD/REV SHAFT ASSEMBLY Not Available This part replaces 603-0672. Price: |
| 3 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 3 |
603-0673A |
PEDAL MOUNTING LINK ASSEMBLY Not Available Price: |
| 4 |
603-0674A |
PEDAL BEARING PLATE Not Available Price: |
| 4 |
93-2169-01 |
BRACKET-RELAY This part replaces 93-2169. Price: $26.63 |
| 5 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 5 |
603-0678 |
BRAKE LINK ASSEMBLY (LH) Not Available Price: |
| 6 |
603-0679A |
BRAKE LINK ASSEMBLY Not Available Price: |
| 6 |
66-2750 |
DISCONTINUED Price: Call Us |
| 7 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 7 |
603-0680 |
BRAKE LINK ASSEMBLY (RH) Not Available Price: |
| 8 |
33115-040 |
SCREW-HH Price: $1.22 |
| 8 |
603-0749 |
DIFF LOCK SHAFT ASSEMBLY Not Available Price: |
| 9 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 9 |
603-0770 |
PTO SELECT LINK ASSEMBLY Not Available Price: |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
703-3152 |
REVERSE SWITCH BRACKET Not Available Price: |
| 11 |
66-8800 |
RELAY Price: $87.56 |
| 11 |
703-3541 |
DIFF PIVOT BRACKET Not Available Price: |
| 12 |
33113-01 |
Screw-HH Price: Call Us |
| 12 |
703-3571 |
PTO HANDLE SELECTI Not Available Price: |
| 13 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 13 |
703-3575 |
LINK-DIFF LOCK PIV Not Available Price: |
| 14 |
703-3582 |
DIFF ACTUATOR BRACKET Not Available Price: |
| 15 |
33113-030 |
SCREW-HH Price: $0.54 |
| 15 |
703-4099-0637 |
REVERSE SWITCH BRACKET Not Available This part replaces 703-4099. Price: |
| 16 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 16 |
94-1325 |
TIE-MOUNT, PUSH Price: $3.20 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
710-0642 |
Screw, Hex Wash Hd Tapp 1/4-20 x .75 Price: $4.05 |
| 18 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 18 |
710-1260A |
Screw, Hex Wash Hd Tapp 5/16-18 x .75 Price: $3.34 |
| 19 |
710-0654A |
Screw, Hex Wash Hd Tapp 3/8-16 x 1.0 Price: $3.75 |
| 19 |
93-2123-03 |
DISCONTINUED This part replaces 93-2123. Price: Call Us |
| 20 |
2412-104 |
CLAMP-R Price: $2.37 |
| 20 |
711-0415 |
Pin, Clevis, 3/8 x 1.75 Price: $4.04 |
| 21 |
911-0723A |
FERRULE 3/8-24 x .375 x 1.31 LG Not Available This part replaces 711-0723A. Price: |
| 21 |
93-2343 |
DISCONTINUED Price: Call Us |
| 22 |
711-1362 |
FERRULE .385 x .25 Not Available Price: |
| 22 |
93-2344 |
DISCONTINUED Price: Call Us |
| 23 |
711-3397 |
FERRULE 3/8-24 Not Available Price: |
| 23 |
93-2340 |
WIRE HARNESS Price: $1,039.80 |
| 24 |
3290-415 |
RIVET Price: $0.28 |
| 24 |
712-0239 |
Nut, Hex Lock, 1/2-20 Price: $5.01 |
| 25 |
712-0379 |
Nut, Hex Flange Lock, 3/8-24 Price: $4.02 |
| 26 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 26 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 27 |
712-0711 |
Nut, Hex Jam, 3/8-24 Price: $3.90 |
| 27 |
93-2036 |
CLAMP - AIR HOSE Price: $8.96 |
| 28 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 28 |
912-3027 |
Nut, Hex Flange Lock 1/4-20 This part replaces 712-3027. Price: $3.85 |
| 29 |
712-3077 |
HEX NUT M8X1.25 GR8.8 Not Available Price: |
| 29 |
93-2270 |
HYD HOSE ASM Price: $91.88 |
| 30 |
117-9471 |
KIT-SERVICE,GR3250-D STEERING This part replaces 93-2269. Price: $105.67 |
| 30 |
913-3000 |
CHAIN LINK Not Available This part replaces 713-3000. Price: |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 32 |
714-0147 |
Pin, Internal Cotter Price: $4.20 |
| 32 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 33 |
714-3020 |
Pin, Internal Cotter Price: $3.90 |
| 33 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 34 |
925-3164A |
Switch, Interlock This part replaces 725-3164A. Price: $37.67 |
| 34 |
93-2035 |
HOSE - AIR CLEANER Price: $81.72 |
| 35 |
925-3191A |
Switch, Plunger This part replaces 725-3191A. Price: $47.64 |
| 35 |
93-2256 |
HYD HOSE ASM Price: $52.48 |
| 36 |
927-04033 |
DAMPER CYLINDER FW This part replaces 727-04033. Price: $137.79 |
| 36 |
93-2255 |
HYD HOSE ASM Price: $52.69 |
| 37 |
2412-39 |
CLAMP-R Price: $1.70 |
| 37 |
731-3296 |
BRAKE FOOT PEDAL Not Available Price: |
| 38 |
731-3299A |
FWD/REV FOOT PEDAL Not Available Price: |
| 38 |
94-4519 |
TUBE-CONVOLUTE Price: $2.24 |
| 39 |
731-3320 |
DIFF LOCK PEDAL Not Available Price: |
| 39 |
92-3188 |
DIODE-BOARD, CIRCUIT Price: $53.82 |
| 40 |
731-3321 |
Grip, Handle Price: $18.83 |
| 41 |
732-0324 |
Spring, Compression Not Available Price: |
| 42 |
932-0756A |
Spring, Torsion This part replaces 732-0756A. Price: $12.90 |
| 43 |
732-0859A |
SPRING Not Available This part replaces 732-0859. Price: |
| 44 |
732-3065 |
Spring, Compression Price: $3.22 |
| 45 |
732-3117 |
Spring, Switch Actuator Price: $7.01 |
| 46 |
732-3118 |
Spring, Extension Price: $8.78 |
| 47 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 48 |
736-0185 |
Washer, Flat, .375 x .738 x .063 Price: $3.43 |
| 49 |
736-0232 |
Washer, Wave, .53 x .78 x .013 Price: $4.02 |
| 50 |
736-3019 |
Washer, Flat, .53 x .1.06 x .134 Price: $5.45 |
| 51 |
736-3069 |
FLAT WASHER .531IDX.875ODX. Not Available Price: |
| 52 |
738-0509 |
SHOULDER SCREW .498 DI Not Available Price: |
| 53 |
738-0533 |
SCREW:SHLDR:0.498X1.630:3/8-16 This part replaces 7380533. Price: $7.42 |
| 54 |
938-0689 |
Screw, Shoulder, 3/8-24 x 1/2 x .180 This part replaces 738-0689. Price: $7.87 |
| 55 |
741-0491 |
Bearing, Nylon. .50 ID x .341 Price: $4.39 |
| 56 |
941-0598 |
Hex Flange Bearing, .752 This part replaces 741-0598. Price: $11.91 |
| 57 |
941-3073 |
Bearing, Flng., .375 x .580 x .250 This part replaces 741-3073. Price: $4.66 |
| 58 |
741-3074 |
Bearing, Flange .626 x .938 x .344 Price: $4.22 |
| 59 |
741-3084 |
Bearing, Flange .751 x 1.125 x .375 Price: $4.55 |
| 60 |
747-3396 |
HYDRO CONTROL ROD Not Available Price: |
| 61 |
747-3399A |
BRAKE ROD (LH) Not Available This part replaces 747-3399. Price: |
| 62 |
747-3400 |
BRAKE ROD (RH) Not Available Price: |
| 63 |
747-3414 |
PTO CONTROL ROD Not Available Price: |
| 531002458 |
531002458 |
HANDLE Price: $6.99 |
| 531002459 |
531002459 |
STARTER ROPE Price: $7.99 |
| 531002460 |
531002460 |
SLEEVE Price: $9.99 |
| 531002461 |
531002461 |
STARTER HOUSING Price: $44.99 |
| 531002462 |
531002462 |
SPRING Price: $12.99 |
| 531002463 |
531002463 |
STARTER PULLEY Price: $9.99 |
| 531002464 |
531002464 |
CARRIER CPL Price: $19.99 |
| 531002465 |
531002465 |
NUT Price: $1.34 |
| 531002493 |
531002493 |
WASHER Price: $3.99 |
| 724132701 |
724132701 |
SCREW MRX 5X12 Price: $2.99 |
