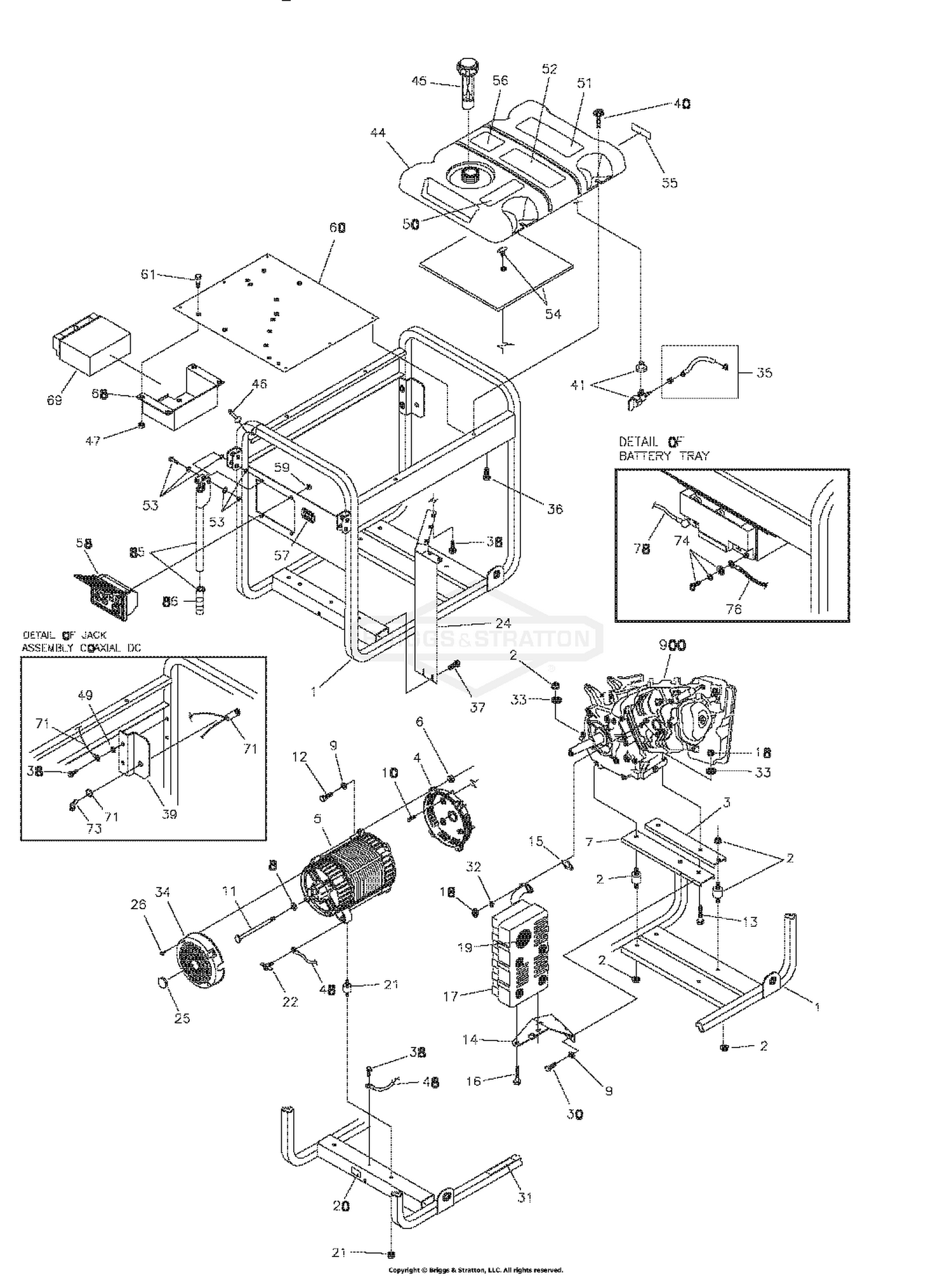

| Ref | Part Number | Description |
|---|
| 1 |
B204408GS |
KIT, Cradle (Includes #20 & 31) Price: $369.99 |
| 2 |
196400GS |
KIT, Vibration Mount Price: $5.00 |
| 3 |
B92531GS |
BRACKET, Support Engine Price: $24.49 |
| 4 |
190220GS |
ADAPTER, Engine Price: $40.82 |
| 5 |
~NSP |
ASSY., Alt (see page 5) Price: Call Us |
| 7 |
B92731GS |
BRACKET, Support Eng/Muffler Price: $19.05 |
| 8 |
96796GS |
WASHER, 8.4 x 22.2 x 3 Price: $2.79 |
| 10 |
190274DGS |
SBHC, 3/8-16 x 7/8" Price: $2.85 |
| 11 |
73068GS |
HHCS, 5/16 - 24 x 8-7/8 Price: $23.99 |
| 14 |
193048GS |
BRACKET, Muffler Price: $22.99 |
| 15 |
~NSP |
GASKET, Exhaust Price: Call Us |
| 17 |
192569GS |
MUFFLER Price: $148.05 |
| 18 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
195625GS |
KIT, Vibration Mount Price: $13.39 |
| 22 |
86494GS |
SCREW, Wing M6 - 1.0 x 16 Price: $2.51 |
| 24 |
194390GS |
ASSY., Heat Shield Price: $75.99 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
TAPTITE, M5 - 0.8 x 10 Price: $2.69 |
| 31 |
196830GS |
DECAL, Exhaust Warning Price: $13.89 |
| 32 |
31579GS |
SPACER Price: Call Us |
| 34 |
195422GS |
COVER, RBC Plastic with Cap Price: $12.35 |
| 35 |
791745 |
LINE, Fuel Price: $8.97 |
| 36 |
192376GS |
SCREW, 12 - 24 x 1/2 Thread Forming Price: $2.89 |
| 37 |
56893GS |
CRIMPTITE, 10-24 x 1/2 Price: $1.95 |
| 38 |
B2153GS |
SCREW, Self Driller, 12-14 x 7/8 Price: $3.95 |
| 39 |
204598GS |
BRACKET, Float Jack Price: $8.49 |
| 40 |
199256GS |
BOLT, Shoulder, M6 - 1.0 w/Neoprene washer Price: $1.60 |
| 41 |
192980GS |
VALVE, Fuel Price: $16.43 |
| 44 |
194217GS |
ASSY., Tank Fuel (Includes Items 41, 50, 51, 52 & 56) Price: $97.20 |
| 45 |
B4363GS |
CAP, Tank Gauge Price: $38.55 |
| 46 |
B4135GS |
PIN, Handle Release Price: $6.09 |
| 47 |
77395GS |
NUT, M6, Flange, Lock Price: $3.09 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 50 |
188333GS |
DECAL, Instruction Fuel Level Price: $20.85 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
189235GS |
DECAL, Start Instructions Price: $17.22 |
| 53 |
194034GS |
KIT, Folddown Handle Hardware Price: $9.51 |
| 54 |
194448GS |
KIT, Insulation w/Clip Price: $25.55 |
| 55 |
197798GS |
DECAL, Fuel Shutoff Price: $7.89 |
| 56 |
202997GS |
DECAL, Warning, CO Price: $12.80 |
| 57 |
202602GS |
METER-HOUR This part replaces 198245GS. Price: $66.91 |
| 58 |
201576GS |
ASSY. Control Panel Price: $224.69 |
| 59 |
189164GS |
PALNUT, 3/16 Price: $3.28 |
| 60 |
204594GS |
HEATSHEILD Price: $78.99 |
| 68 |
195680GS |
TRAY, Battery Price: $58.29 |
| 69 |
193463GS |
BATTERY Price: $139.09 |
| 71 |
204623GS |
ASSY, Jack, Coaxial Price: $9.75 |
| 73 |
192351GS |
LUG Price: $1.65 |
| 74 |
193347GS |
KIT, Battery Hardware Price: $2.49 |
| 76 |
185939ZGS |
WIRE-A, #55, Black Price: $14.49 |
| 78 |
204497GS |
WIRE-A, #13, Red Price: $10.90 |
| 85 |
B193200GS |
ASSY,. Fold Down Handle Price: $34.76 |
| 86 |
198669GS |
GRIP, Handle Price: $7.69 |
