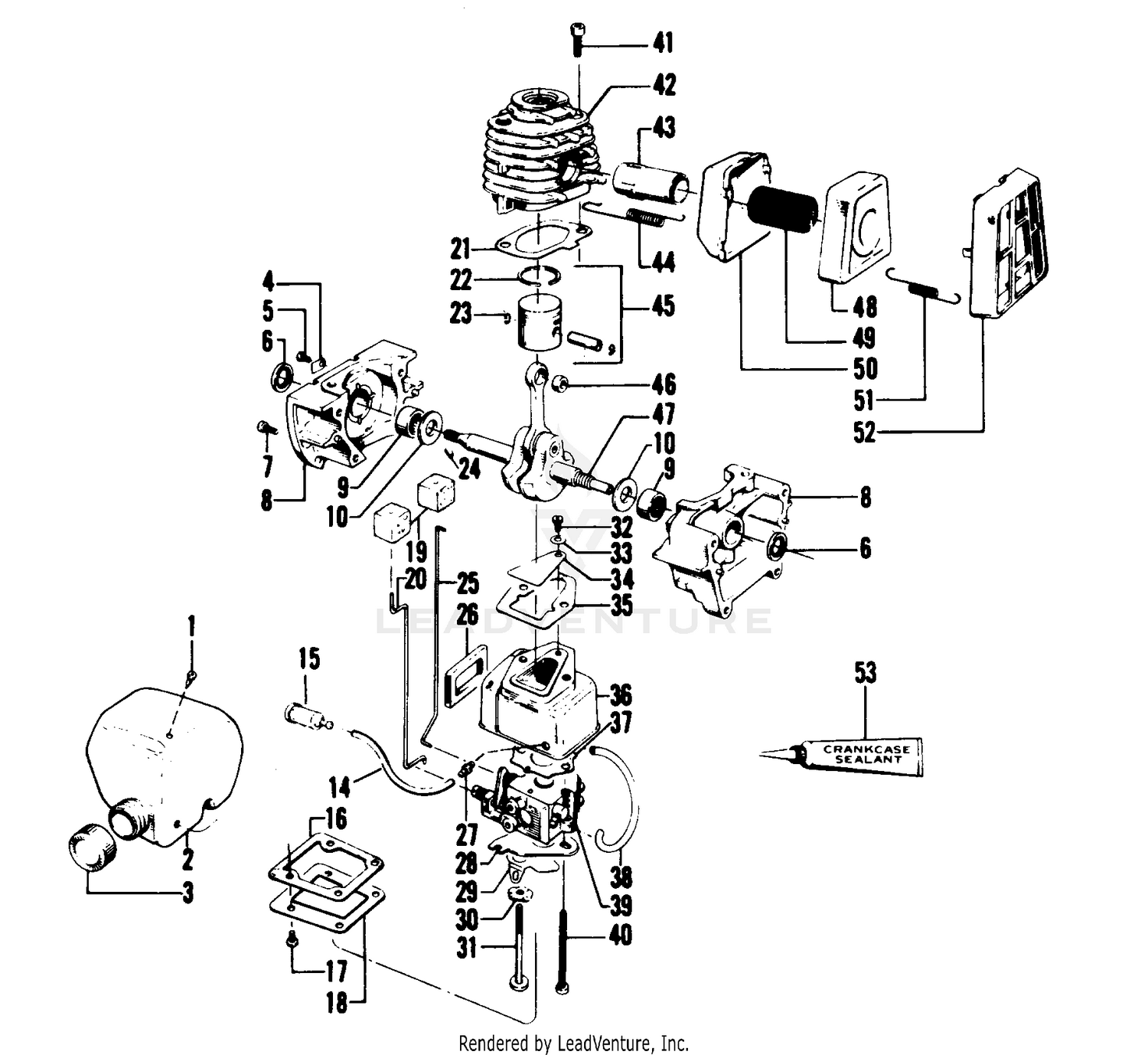

| Ref | Part Number | Description |
|---|
| 1 |
3296-5 |
NUT-HEX Price: $3.09 |
| 1 |
530026119 |
Duck Bill Valve Price: $1.99 |
| 2 |
18-7260 |
DISCONTINUED Price: Call Us |
| 2 |
530010776 |
Fuel Tank Ass'y (Incl. #1, 3, 14 & 15) Price: $3.33 |
| 3 |
18-7530 |
BALL JOINT ASSY CENTE This part replaces 18-7550. Price: $41.95 |
| 3 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 4 |
18-7450 |
UPPER RAKE WA RH *R Price: $333.54 |
| 4 |
530024651 |
Clamp - Choke Wire Price: $3.33 |
| 5 |
530015004 |
Screw - #8 - 32 x 5/16" - Choke Wire Clamp Price: $1.99 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 6 |
530019059 |
Seal - Crankcase Price: $4.99 |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
530015168 |
Screw - #10 - 24 x 5/8" - Crankcase Price: $1.46 |
| 8 |
18-7560 |
DISCONTINUED Price: Call Us |
| 8 |
530010316 |
Crankcase Assembly (Inc.6, 9 & Qty 4 of 7) Price: $3.33 |
| 9 |
20-4670 |
DRAG LINK Price: $15.18 |
| 9 |
530032029 |
Crankshaft Bearing This part replaces 530032058. Price: $7.99 |
| 10 |
18-7570-01 |
WEIGHT-DRAG (MAIN) This part replaces 18-7570. Price: $43.13 |
| 10 |
530015351 |
Washer - Crankshaft Thrust Price: $3.99 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
3217-6 |
NUT-HEX Price: $1.19 |
| 14 |
18-7520 |
DISCONTINUED Price: Call Us |
| 14 |
530021042 |
Fuel Line Price: $3.33 |
| 15 |
18-7380 |
DISCONTINUED Price: Call Us |
| 15 |
530091878 |
Fuel Pick-Up Assembly Price: $5.99 |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 16 |
530019112 |
Gasket - Carburetor Case Cover Price: $2.99 |
| 17 |
3217-7 |
NUT-HEX Price: $0.28 |
| 17 |
530015235 |
Screw - #8 - 18 x 9/16" - Carburetor Case Cover Price: Call Us |
| 18 |
18-7590 |
WEIGHT-DRAG (SECOND)*R Price: $17.41 |
| 19 |
18-7580 |
DISCONTINUED Price: Call Us |
| 19 |
530023373 |
Boot - Throttle - Choke Wire Price: $1.99 |
| 20 |
18-7420 |
L/H UPPER RAKE WA *R Price: $236.44 |
| 21 |
3217-5 |
NUT-HEX Price: $0.25 |
| 21 |
530069219 |
Engine Gasket Kit This part replaces 530019111. Price: $11.54 |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 22 |
530024929 |
Piston Ring Price: $5.99 |
| 23 |
321-4 |
SCREW-HH Price: $0.99 |
| 23 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 24 |
18-7660-01 |
SWIVEL BRKT ASM This part replaces 18-7660. Price: $65.88 |
| 24 |
530015126 |
Key - Flywheel Price: $1.99 |
| 25 |
18-7650-01 |
WEIGHT-DRAG This part replaces 18-7650. Price: $23.01 |
| 25 |
530024902 |
Throttle Wire Price: $3.33 |
| 26 |
530019105 |
Seal - Carburetor Case Price: Call Us |
| 26 |
77-5080-01 |
DRAG-SWIVEL This part replaces 18-7640. Price: $18.00 |
| 27 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 27 |
530025472 |
Fuel Line Fitting Price: $1.99 |
| 28 |
321-5 |
SCREW-HH This part replaces 321-31. Price: $0.22 |
| 29 |
18-7460 |
DISCONTINUED Price: Call Us |
| 29 |
530024558 |
Choke Shutter Price: $2.99 |
| 30 |
18-7360 |
LH WHL HOOP WA *R Price: $429.11 |
| 30 |
530015254 |
Wave Washer Price: $1.99 |
| 31 |
323-34 |
SCREW-HH This part replaces 323-3. Price: $0.54 |
| 31 |
530015404 |
Screw - #10 - 24 x 2-1/8" - Fil. Hd. - Carburetor Shoulder Price: $2.99 |
| 32 |
325-5 |
SCREW-HH Price: $1.20 |
| 32 |
530015241 |
Screw - #6 - 19 x 5/16" - Pan Hd. Reed Valve Price: $1.99 |
| 33 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 33 |
530023367 |
Washer - #6 - Reed Valve Screw Price: Call Us |
| 34 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 34 |
530024438 |
Reed Valve Price: Call Us |
| 35 |
323-6 |
SCREW-HH Price: $0.66 |
| 35 |
530019108 |
Gasket - Carburetor Housing to Crankcase Price: $2.99 |
| 36 |
18-7220 |
DISCONTINUED Price: Call Us |
| 36 |
530024409 |
Carburetor Housing Price: $9.99 |
| 37 |
530019115 |
Carburetor Gasket Price: $3.33 |
| 38 |
18-7170 |
DISCONTINUED Price: Call Us |
| 38 |
530021043 |
Fuel Line - Carburetor Price: $3.33 |
| 39 |
18-7280 |
RAKE MT WA *R Price: $660.32 |
| 39 |
530035183 |
Carburetor - See Service Ref. 3 Price: $65.89 |
| 40 |
18-7530 |
BALL JOINT ASSY CENTE Price: $41.95 |
| 40 |
530015379 |
Screw - #10 - 24 x 1-7/8" - Carburetor Price: $2.99 |
| 41 |
530015239 |
Screw - #1/4 - 20 x 3/4" - Cylinder Price: $1.99 |
| 42 |
530012071 |
Cylinder Price: $3.33 |
| 43 |
530024363 |
Diffuser - Muffler Price: $3.33 |
| 44 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 45 |
530022238 |
Piston Assembly (Inc. 22, 23, & Pin) Price: $3.33 |
| 46 |
530032057 |
Bearing - Wrist Pin Price: $3.28 |
| 47 |
530022202 |
Crankshaft & Rod Assembly Price: $3.33 |
| 48 |
530024361 |
Cover - Muffler Price: $3.33 |
| 49 |
530024364 |
Screen - Spark Arresting Price: $3.33 |
| 50 |
530024362 |
Body - Muffler Price: $3.33 |
| 51 |
530024932 |
Spring - Muffler Guard Price: $3.33 |
| 52 |
530024855 |
Guard - Muffler Price: $5.99 |
