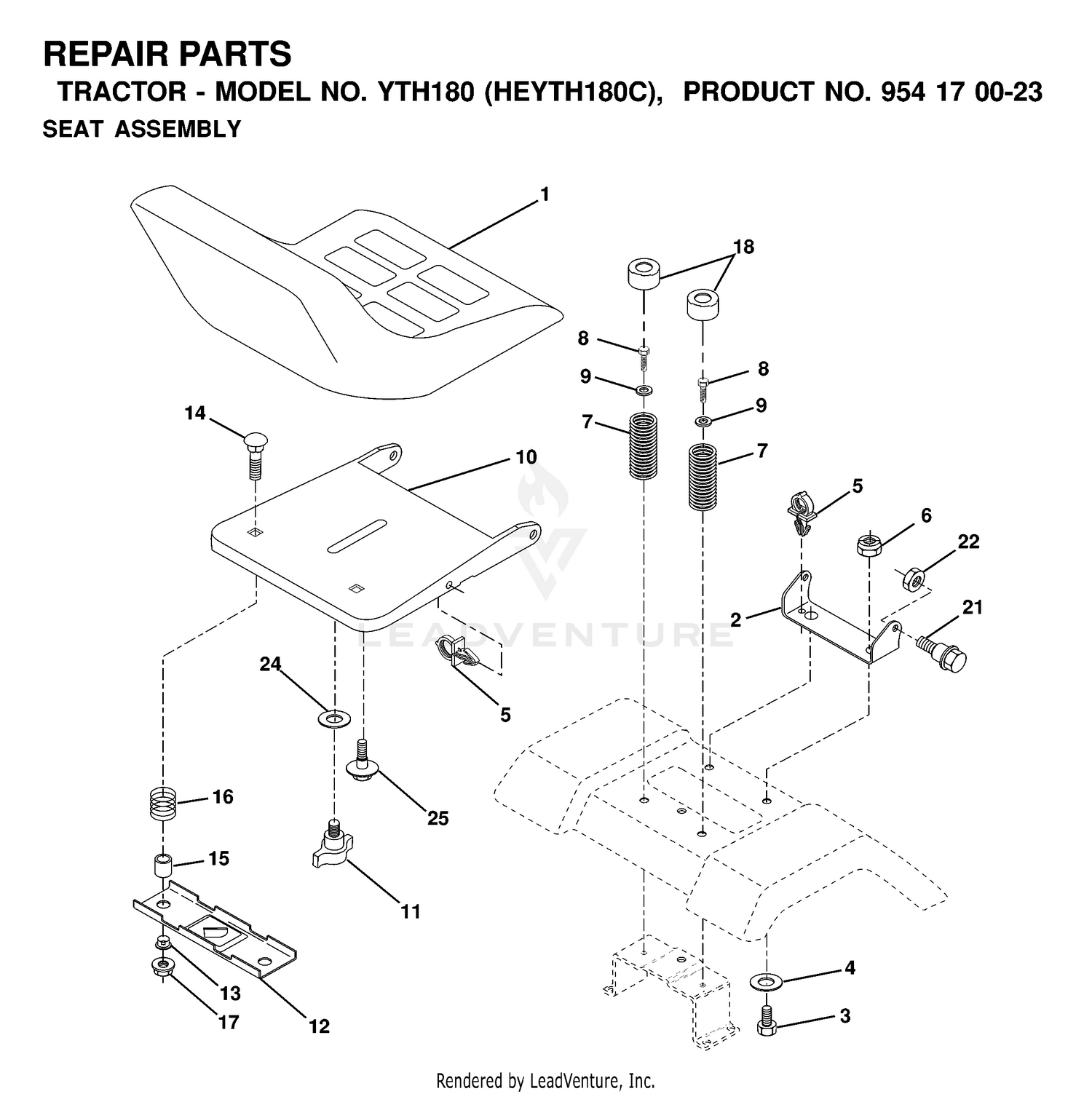

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532140840. Price: $219.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
130-1546 |
PISTON (STD) Price: $270.64 |
| 10 |
130-1549 |
PISTON (+0.50MM) Price: $230.54 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $17.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
532124238 |
CAP SPRING Price: $4.99 |
| 20 |
130-1506 |
PISTON RING ASM (STD) Price: $205.88 |
| 20 |
130-1507 |
PISTON RING ASM (+0.50MM) Price: $207.53 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 50 |
117-7586 |
CONNECTING ROD ASM Price: $547.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON Price: $19.81 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 90 |
130-1375 |
CRANKSHAFT ASM Price: $1,550.05 |
| 110 |
117-7561 |
GEAR-CRANKSHAFT Price: $87.12 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
127-0445 |
GEAR-DRIVE, OIL PUMP Price: $14.70 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
127-0444 |
COLLAR-CRANKSHAFT Price: $42.94 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) Price: $66.99 |
| 170 |
127-0432 |
METAL-CRANKSHAFT (-0.4MM) Price: $39.56 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) Price: $21.04 |
| 200 |
127-0417 |
METAL-SIDE (+0.40MM) Price: $12.65 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) Price: $18.42 |
| 210 |
127-0438 |
METAL-SIDE (+0.40MM) Price: $12.65 |
| 210 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
| 220 |
130-1547 |
PISTON KIT Price: $523.66 |
| 220 |
130-1548 |
PISTON KIT Price: $444.81 |
| 230 |
130-1498 |
ENGINE METAL KIT (-0.20MM/+0.20MM) Price: $363.00 |
| 230 |
130-1501 |
ENGINE METAL KIT (STD) Price: $217.10 |
