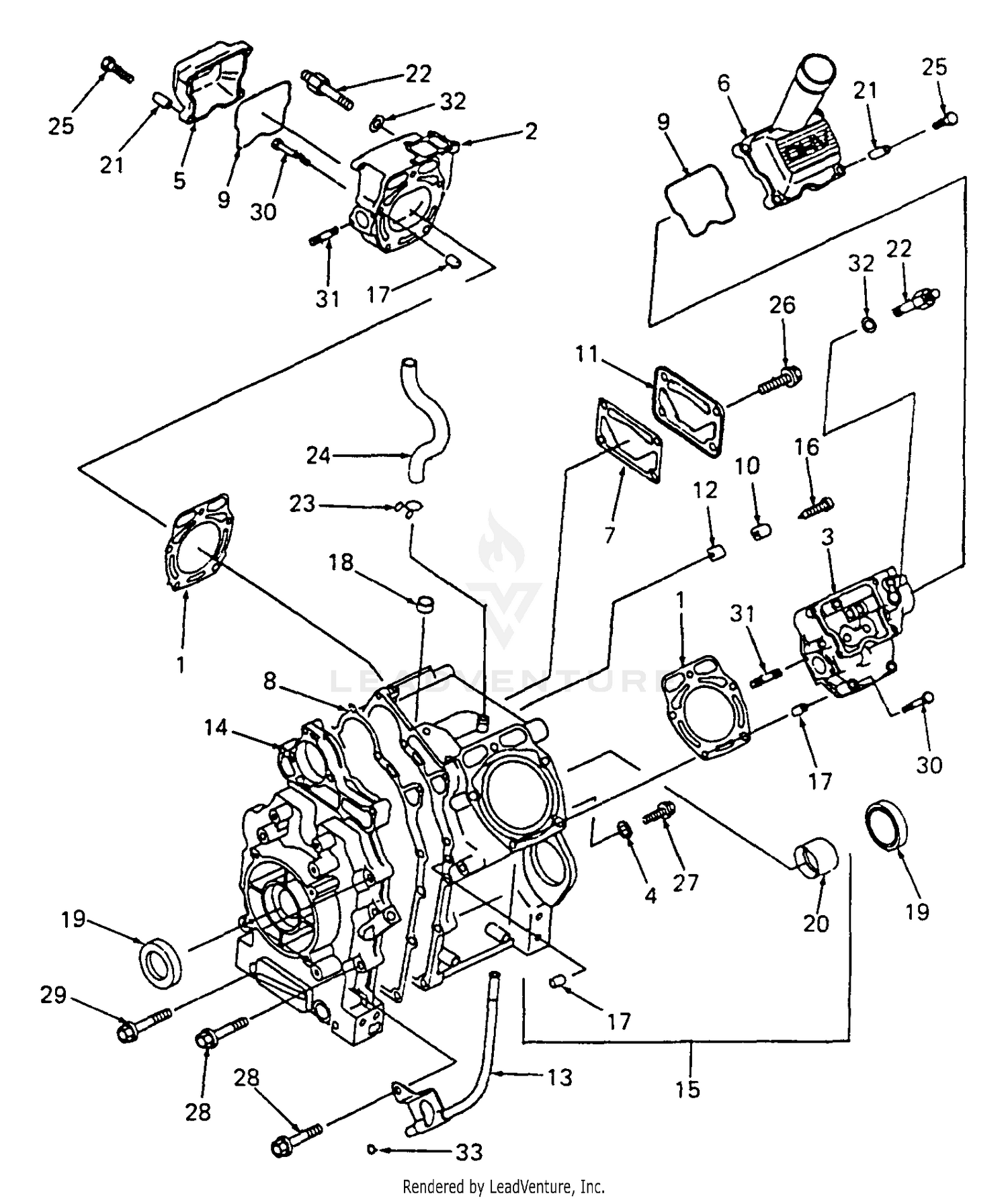

Crankcase And Cylinder Heads
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | KM-11004-2107 | CYLINDER HEAD GASKET Not Available Price: |
| 2 | KM-11008-2135 | CYLINDER HEAD ASSEMBLY Not Available This part replaces KM-11008-2087. Price: |
| 3 | KM-11008-6015 | HEAD COMPLETE, CYLINDER Not Available Price: |
| 4 | KM-11009-3028 | GASKET-FLANGED BOL Not Available Price: |
| 5 | KM-11022-2056 | CASE-ROCKER Not Available Price: |
| 6 | KM-11022-2063 | CASE-ROCKER Not Available Price: |
| 7 | KM-11060-2089 | GASKET-CRN Not Available Price: |
| 8 | KM-11060-2449 | CRANKCASE COVER Not Available This part replaces KM-11060-2284. Price: |
| 9 | KM-11061-2182 | VALVE COVER GASKET This part replaces KM-11060-2332. Price: $10.49 |
| 10 | KM-13183-2120 | PLATE Not Available Price: |
| 11 | KM-14024-2292 | COVER Not Available Price: |
| 12 | KM-16126-2146 | VALVE Not Available Price: |
| 13 | KM-3215120319H | PIPE-OIL GAUGE Not Available Price: |
| 14 | KM-49015-6130 | COVER-CRAN Not Available Price: |
| 15 | KM-49120-2287 | CRANKCASE-COMPLETE Not Available This part replaces KM-49120-6075. Price: |
| 16 | KM-92009-2308 | SCREW Price: $2.40 |
| 17 | KM-92043-1037 | DOWEL PIN Price: $2.60 |
| 18 | KM-92049-2097 | OIL SEAL Not Available Price: |
| 19 | KM-92049-2112 | OIL SEAL Not Available This part replaces KM-92049-2110. Price: |
| 20 | KM-92141-2122 | BEARING-PLANE Not Available This part replaces KM-92141-2110. Price: |
| 21 | KM-92143-2010 | COLLAR Not Available Price: |
| 22 | KM-92150-2254 | BOLT Not Available Price: |
| 23 | KM-92170-2002 | CLAMP Not Available Price: |
| 24 | KM-92190-2147 | TUBE Not Available Price: |
| 25 | KM-130BA0625 | Flanged Bolt, 6 x 25 This part replaces KM-130B0625. Price: $2.45 |
| 26 | KM-130BA0816 | Bolt Flange This part replaces KM-130B0816. Price: $1.41 |
| 27 | KM-130AB0812 | FLANGE BOLT 8X12 Not Available This part replaces KM-130C0812. Price: |
| 28 | KM-130BA0845 | FLANGED BOLT 8X45 Not Available This part replaces KM-130G0845. Price: |
| 29 | KM-130BA0860 | FLANGED BOLT 8X60 Not Available This part replaces KM-130G0860. Price: |
| 30 | KM-130BA0865 | FLANGED BOLT 8X65 This part replaces KM-130G0865. Price: $1.89 |
| 31 | KM-172G0620 | BOLT-STUD Not Available Price: |
| 32 | KM-410B0800 | WASHER PLA Not Available Price: |
