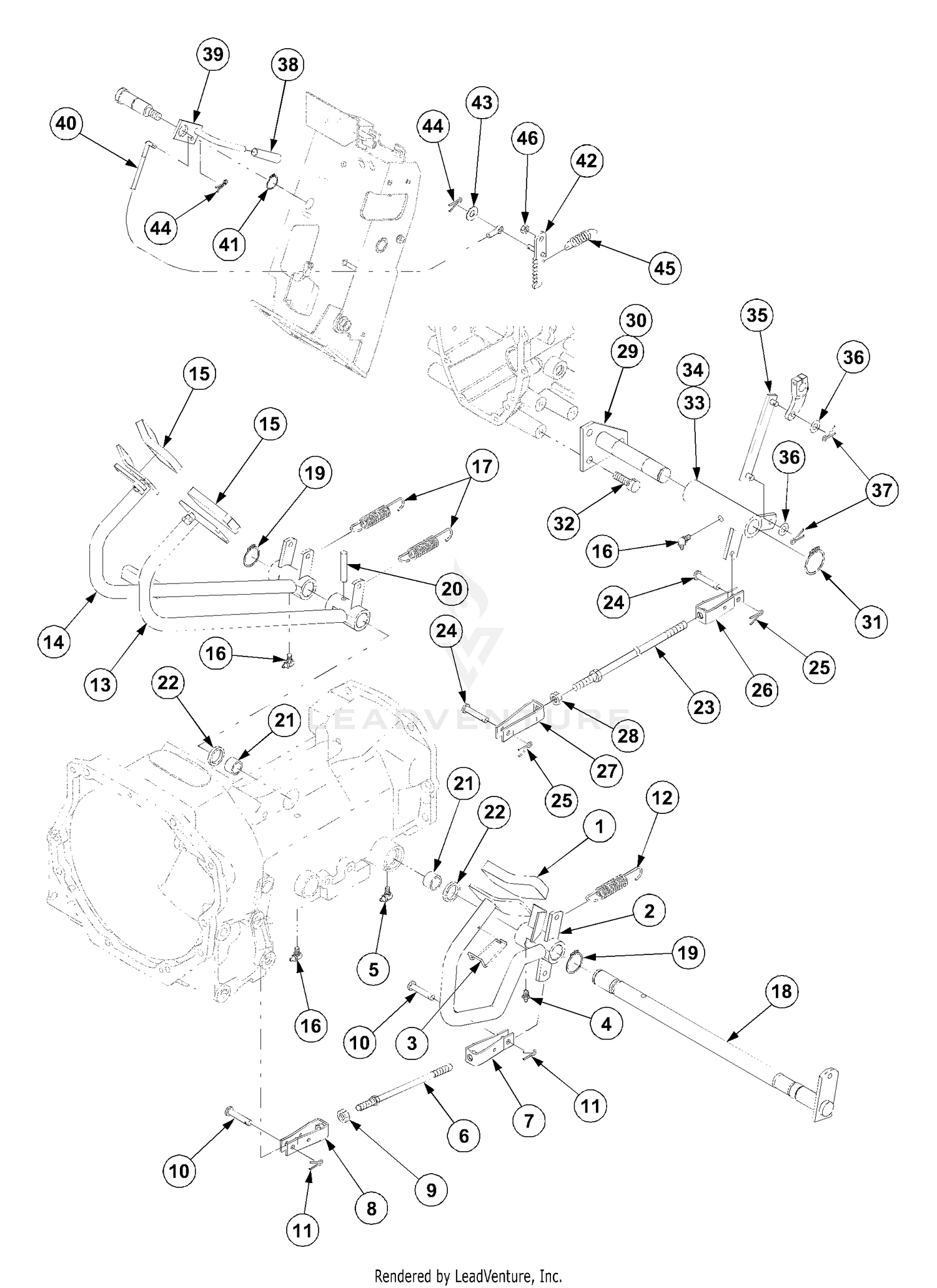

CB Controls
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 165552 | HOUSING.ASM.MOWER Price: Call Us |
| 1 | MA-11931812000 | COVER,PEDAL Not Available Price: |
| 2 | 72140506 | BOLT Price: Call Us |
| 2 | MA-19571811AG0 | PEDAL-CLUT Not Available Price: |
| 3 | 165569 | BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 3 | MA-10391815001 | HOOK-PEDAL Not Available Price: |
| 4 | 165558 | BRKT.BAR.SWAY.DECK Price: Call Us |
| 4 | MA-A6503100300 | NIPPLE-GREASE Not Available Price: |
| 5 | 4939M | SUB= 85902 Price: Call Us |
| 5 | MA-A6503100300 | NIPPLE-GREASE Not Available This part replaces MA-A6513100300. Price: |
| 6 | 165557 | BAR.SWAY.92.CRD Price: Call Us |
| 6 | MA-10441813000 | CLUTCH ROD Not Available Price: |
| 7 | MA-10441814000 | YOKE-CLUTC Not Available Price: |
| 8 | 850857 | BLADE BOLT Price: Call Us |
| 8 | MA-10391823000 | YOKE-CLUTC Not Available Price: |
| 9 | 10030600 | SUB= 10040600 Price: Call Us |
| 9 | MA-A3010110002 | NUT Not Available Price: |
| 10 | 140296 | WASHER.HARD.BLADE Price: Call Us |
| 10 | MA-05621108025 | CLEVIS PIN C/B Not Available Price: |
| 11 | 165560 | BLADE.3-1.LH.92.CRD Price: Call Us |
| 11 | MA-05200125015 | COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 12 | 129895 | BEARING.BALL Price: Call Us |
| 12 | MA-10441841000 | SPRING-PEDAL RETUR Not Available Price: |
| 13 | 137645 | SUB= 137646 Price: Call Us |
| 14 | 128774 | HSG ASM MANDREL Price: Call Us |
| 15 | 110485X | BEARING Price: Call Us |
| 15 | MA-11931812000 | COVER,PEDAL Not Available Price: |
| 16 | 165561 | BLADE.3-1.RH.CRD.92 Price: Call Us |
| 16 | MA-A6503100300 | NIPPLE-GREASE Not Available This part replaces MA-A6513100300. Price: |
| 17 | 72140610 | BOLT.3/8-14X1.25 Price: Call Us |
| 18 | 72110608 | BOLT D Price: Call Us |
| 19 | 132827 | BOLT SHD 5/16-18 Price: Call Us |
| 19 | MA-07400002500 | RING-"C" Not Available This part replaces MA-07400102500. Price: |
| 20 | 165484 | BOLT.3/8-24X1.25 Price: Call Us |
| 20 | MA-05500008040 | SPRING PIN Not Available Price: |
| 21 | 73680500 | SUB= 73690500 Price: Call Us |
| 21 | MA-07972025200 | BUSHING-BRAKE SHAF Not Available Price: |
| 22 | 165243 | BRKT.IDLER.SPRT.CRD Price: Call Us |
| 22 | MA-08400025355 | OIL SEAL BRAKE Not Available Price: |
| 23 | MA-19571826000 | BRAKE ROD Not Available Price: |
| 24 | 165242 | BRKT.SUSP.LF.92.CRD Price: Call Us |
| 24 | MA-05621108025 | CLEVIS PIN C/B Not Available Price: |
| 25 | 165244 | BRKT.SUSP.RF.92.CRD Price: Call Us |
| 25 | MA-05200125015 | COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 26 | 165237 | BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 26 | MA-10441814000 | YOKE-CLUTC Not Available Price: |
| 27 | 165568 | BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 27 | MA-10391823000 | YOKE-CLUTC Not Available Price: |
| 28 | 165567 | BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 28 | MA-A3010110002 | NUT Not Available Price: |
| 29 | MA-19571828AG0 | BRACKET (LH) Not Available Price: |
| 30 | MA-19571829AG0 | BRACKET (RH) Not Available Price: |
| 31 | 129963 | WASHER Price: Call Us |
| 31 | MA-07400002500 | RING-"C" Not Available This part replaces MA-07400102500. Price: |
| 32 | 153531 | PULLEY.MAND.36/46 Price: Call Us |
| 32 | MA-F1540110030 | BOLT W/WASHER Not Available Price: |
| 33 | 137266 | SUB= 139729 Price: Call Us |
| 33 | MA-19571831AG0 | LINK (LH) PI Not Available Price: |
| 34 | 165239 | BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 34 | MA-19571832AG0 | LINK (RH) PI Not Available Price: |
| 35 | 165238 | BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 35 | MA-19571835000 | PLATE-BRAK Not Available Price: |
| 36 | 146763 | PULLEY.IDLER.4.25 Price: Call Us |
| 36 | MA-27613615000 | WASHER Not Available Price: |
| 37 | 19131316 | WASHER Price: Call Us |
| 37 | MA-05200125015 | COTTER PIN Not Available This part replaces MA-05200125016. Price: |
| 38 | MA-14212284000 | GRIP Not Available Price: |
| 39 | MA-19571837000 | LEVER-PARK Not Available Price: |
| 40 | 73680600 | SUB= 73690600 Price: Call Us |
| 40 | MA-19571838000 | CABLE-PARKING BRAK Not Available Price: |
| 42 | MA-19561829001 | RATCHET-PA Not Available Price: |
| 42 | MA-19561829002 | RATCHET-PA Not Available Price: |
| 43 | MA-03500130613 | WASHER Not Available Price: |
| 44 | 165724 | COVER.MANDREL.LH.92.CRD Price: Call Us |
| 44 | MA-05200125012 | PIN-SPLIT Not Available Price: |
| 45 | 165556 | COVER.MANDREL.RH.92.CRD Price: Call Us |
| 46 | 137729 | SCREW.1/4-20X5/8 Price: Call Us |
| 55 | 165445 | ARM.IDLER.92.CRD Price: Call Us |
| 56 | 122052X | SPACER RETAINER Price: Call Us |
| 61 | 165945 | SPRING.TENSION.BELT Price: Call Us |
| 68 | 165555 | HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 | 165482 | SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 | 137644 | BOLT.SHOULDER Price: Call Us |
| 117 | 133957 | WHEEL GAGE DONUT Price: Call Us |
| 118 | 73930600 | LOCKNUT Price: Call Us |
| 119 | 19121414 | WASHER Price: Call Us |
| 124 | 72110612 | BOLT.3/8-16X1.50 Price: Call Us |
| 128 | 153390 | WASHER.FELT. Price: Call Us |
| 130 | 72110506 | SUB= 72270506 Price: Call Us |
| 131 | 165661 | CHUTE.BAGGER.CRD Price: Call Us |
| 130794 | MANDREL | ASM Price: Call Us 130794 |
| 165579 | MANDREL.ASM.CRD.LH.THREADS | Price: Call Us 165579 |
