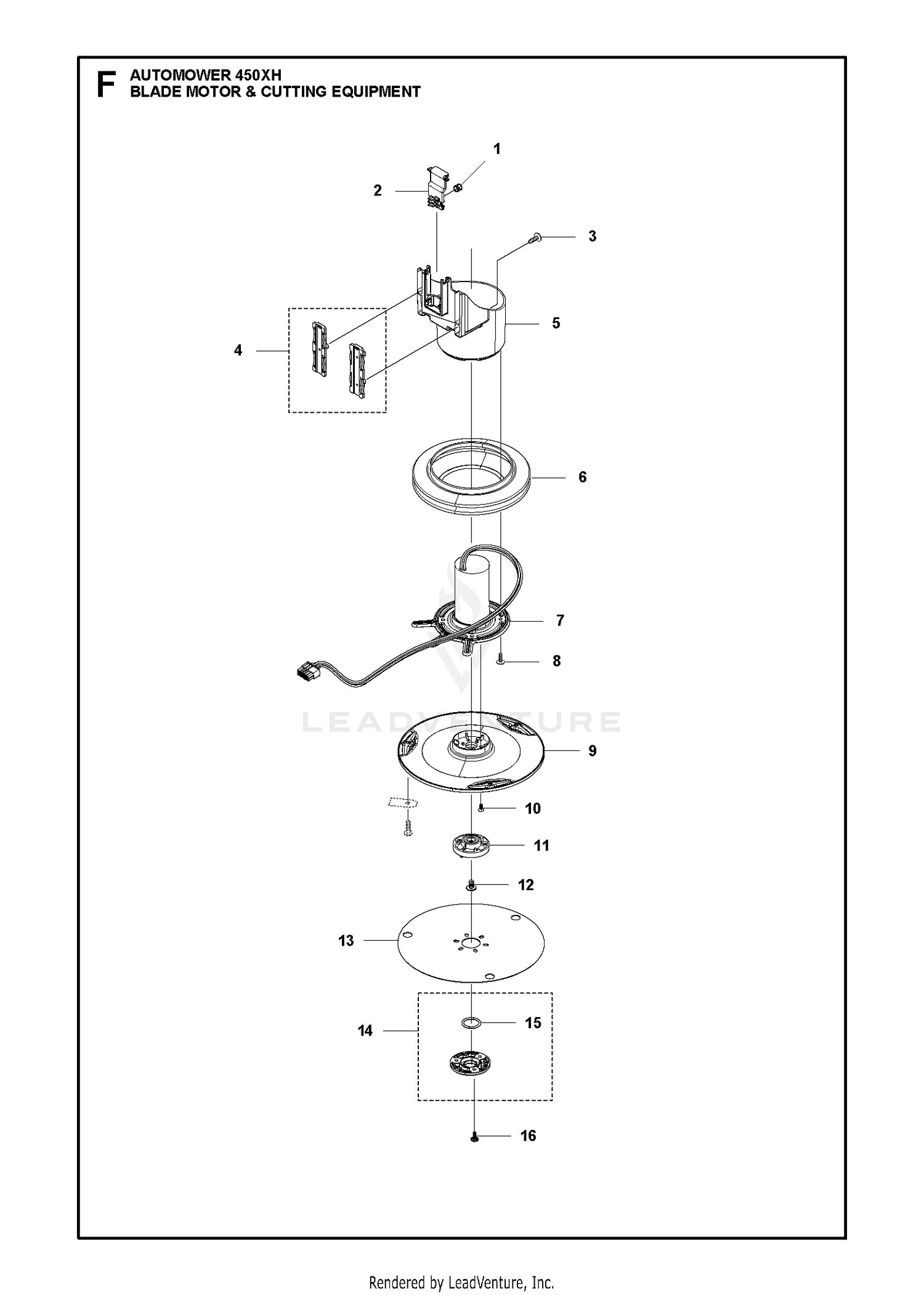

BLADE MOTOR & CUTTING EQUIPMENT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580624401 | SPRING LINK Price: $3.99 |
| 3 | 575543314 | SCREW 14MM Price: $3.99 |
| 4 | 581621801 | BEARING KIT Price: $6.99 |
| 5 | 579564501 | HOUSING CUTTING MOTOR Price: $19.99 |
| 6 | 579666403 | BELLOWS CUTTING SYSTEM Price: $14.99 |
| 8 | 575543314 | SCREW 14MM Price: $3.99 |
| 9 | 587378101 | CUTTING DISC Price: $27.99 |
| 10 | 535130502 | SCREW TORX M4X8 8.8 NYLON PATC Price: $2.99 |
| 11 | 588421702 | BEARING HOUSING ASSY Price: $22.99 |
| 12 | 535076001 | SCREW Price: $3.99 |
| 13 | 587378001 | SKID PLATE Price: $34.99 |
| 15 | 585297501 | O-RING 20X2,5 MM Price: $3.99 |
| 16 | 575543314 | SCREW 14MM Price: $3.99 |
