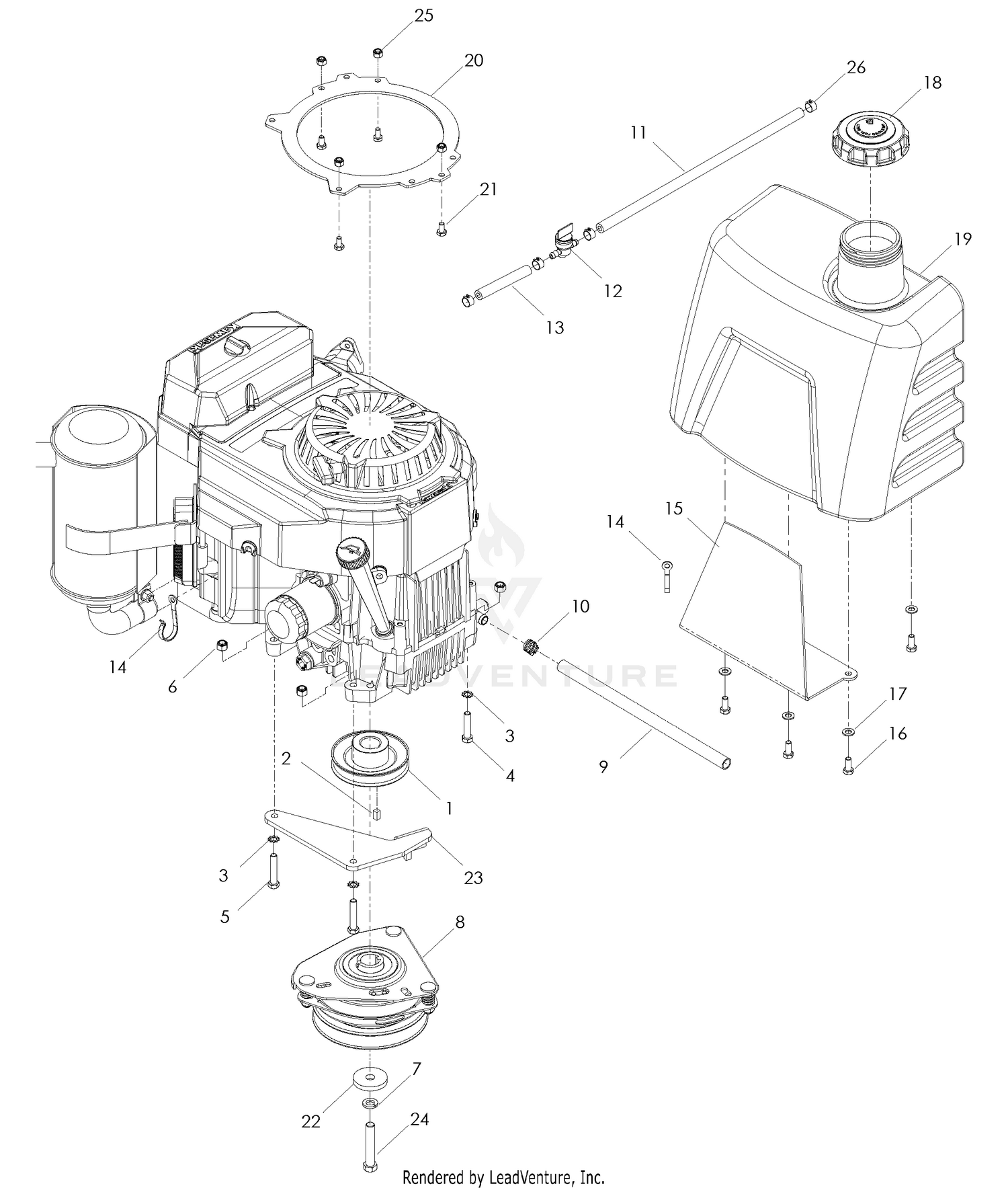

| Ref | Part Number | Description |
|---|
| 1 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 1 |
539132525 |
PULLEY - ENGINE Price: $31.99 |
| 2 |
139-2650 |
CYLINDER, HYD This part replaces 94-6357. Price: $608.23 |
| 2 |
539105718 |
SQUARE KEY - 1/4 X .5 Price: $0.62 |
| 3 |
539109556 |
WASHER 5/16 EXT STAR Price: $2.99 |
| 3 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 4 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 4 |
93-2403 |
DISCONTINUED Price: Call Us |
| 5 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 5 |
92-8995 |
BUSHING Price: $8.90 |
| 6 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 6 |
94-9610 |
BUSHING-FLANGE Price: $2.37 |
| 7 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 7 |
98-4626 |
DISCONTINUED This part replaces 94-9626. Price: Call Us |
| 8 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 8 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 9 |
539107937 |
OIL DRAIN HOSE Price: $2.99 |
| 9 |
94-3483-01 |
DISCONTINUED This part replaces 94-3483. Price: Call Us |
| 10 |
539976966 |
HOSE CLAMP T-1865 Price: $3.99 |
| 10 |
93-2368 |
BUSHING-FLANGE Price: $2.10 |
| 11 |
104-2091 |
ROLLER-ANTI SCALP This part replaces 93-2362. Price: $45.52 |
| 11 |
539108212 |
FUEL LINE 13" Price: $1.99 |
| 12 |
104-2078 |
SHAFT-ROLLER This part replaces 93-2363. Price: $73.88 |
| 12 |
539916325 |
FUEL VALVE Price: $9.99 |
| 13 |
3296-19 |
NUT-HEX Price: $0.65 |
| 13 |
505215101 |
FUEL LINE 3" Price: $2.99 |
| 14 |
3213-1 |
SCREW-HH Price: $1.42 |
| 14 |
539107098 |
CLAMP Price: $11.99 |
| 15 |
104-7719 |
BALL JOINT ASM This part replaces 94-9647. Price: $137.95 |
| 15 |
539132633 |
PLATE ID, ORANGE Price: $96.99 |
| 16 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 16 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 17 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 17 |
95-1639 |
FITTING-STR,ORIF Price: $63.47 |
| 18 |
32120-72 |
RING-SNAP Price: $2.09 |
| 18 |
539130394 |
FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99 |
| 19 |
575320601 |
FUEL TANK, 6 GAL This part replaces 539132549. Price: $159.99 |
| 19 |
63-2290 |
WASHER-THRUST Price: $2.27 |
| 20 |
539132548 |
ADAPTER - RECOIL Price: $49.99 |
| 20 |
93-2258 |
HYD HOSE ASM Price: $43.64 |
| 21 |
596437001 |
Screws This part replaces 539990071. Price: $2.99 |
| 21 |
94-3452 |
PIN Price: $10.04 |
| 22 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 22 |
94-8199 |
TUBE-PIVOT Price: $23.74 |
| 23 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 23 |
539132527 |
CLUTCH STOP Price: $34.99 |
| 24 |
327-17 |
SCREW-HH Price: $8.50 |
| 24 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 25 |
3211-2 |
SCREW-HH Price: $2.17 |
| 25 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 26 |
94-3477 |
HYD HOSE ASM Price: $65.92 |
| 27 |
325-6 |
SCREW-HH Price: $1.42 |
| 28 |
3218-5 |
NUT-JAM Price: $0.27 |
| 29 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 30 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 31 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 32 |
94-4548 |
BUMPER-RECESSED Price: $4.68 |
| 33 |
32144-44 |
SCREW-HWH, THREAD ROLL Price: $1.39 |
| 34 |
325-4 |
SCREW-HH Price: $0.95 |
| 35 |
93-7489 |
ORIFICE VALVE ASM Price: $191.40 |
| 37 |
95-2927 |
FITTING-ELBOW 90 Price: $97.89 |
| 38 |
237-78 |
O-RING Price: $3.85 |
| 39 |
237-21 |
O-RING Price: $0.70 |
| 40 |
94-9648 |
BALL STUD Price: $19.68 |
| 41 |
94-8172 |
DISCONTINUED Price: Call Us |
| 42 |
95-2903 |
ANGLE-BASKET SEAL Price: $16.47 |
| 43 |
93-2551 |
SEAL-BASKET Price: $7.89 |
