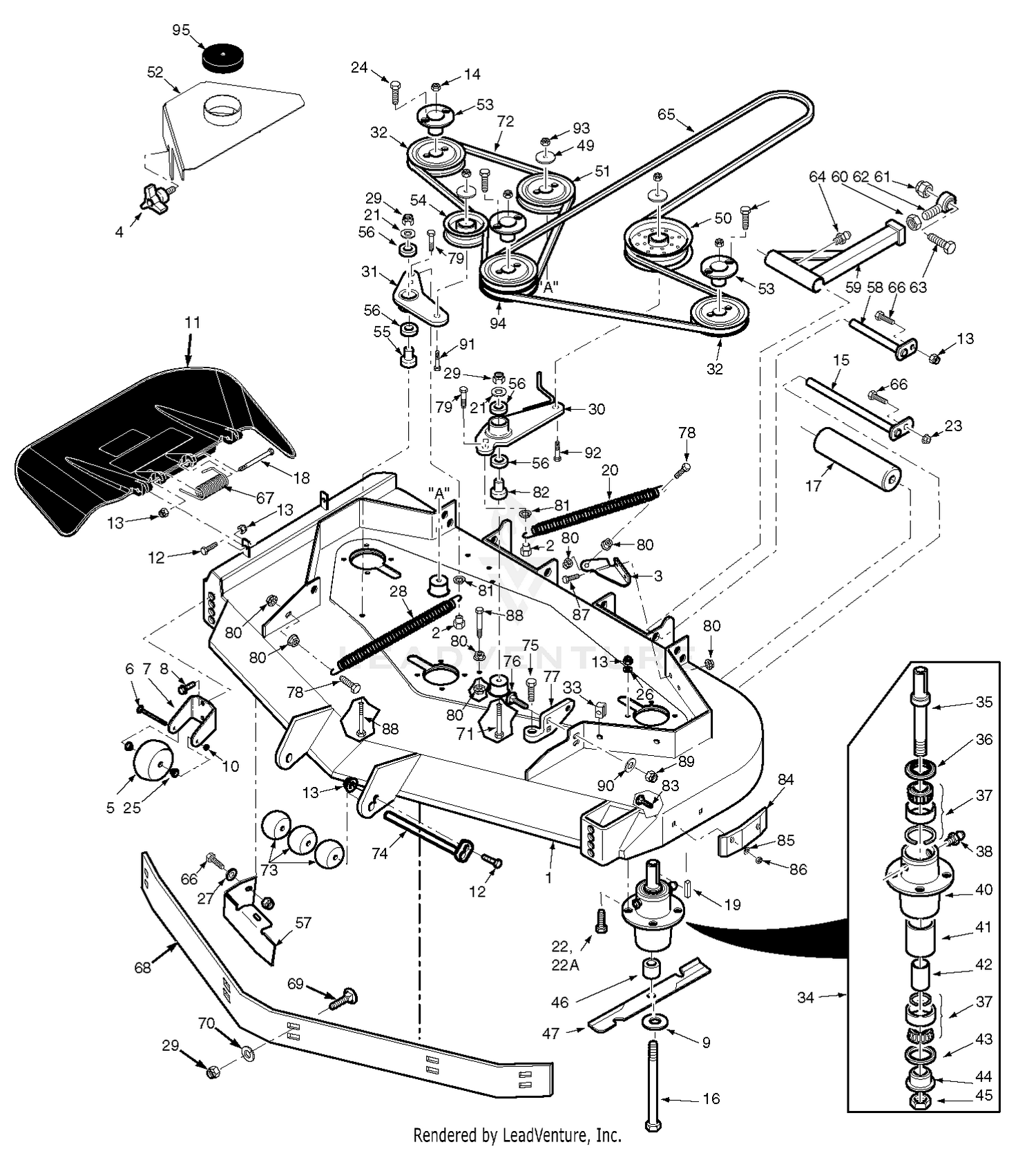

| Ref | Part Number | Description |
|---|
| 1 |
461862 |
Cutter Deck Velocity Plus Price: Call Us |
| 2 |
43687 |
Boss, Spring Anchor Price: Call Us |
| 3 |
424371 |
Bracket, LH Spring Anchor 61V Price: Call Us |
| 4 |
481625-01 |
Wing Nut, 3/8-16 Price: Call Us |
| 5 |
481632 |
Anti-Scalp Wheel Price: Call Us |
| 6 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 7 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 8 |
04017-27 |
Bolt, Serrated Flange 3/8-16 x 1" Price: Call Us |
| 9 |
04043-06 |
Flatwasher, 5/8" Hardened Price: Call Us |
| 10 |
04021-05 |
Locknut, 3/8-16 Center Lock Price: Call Us |
| 11 |
461846 |
Discharge Chute Assy. Price: Call Us |
| 12 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2", Rear Price: Call Us |
| 12 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4", Front Price: Call Us |
| 13 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 14 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 15 |
45944 |
Shaft, Roller Price: Call Us |
| 16 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 17 |
48038 |
Roller, Rear Price: Call Us |
| 18 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 19 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 20 |
483246 |
Spring, LH Deck Drive Price: Call Us |
| 21 |
04043-04 |
Flatwasher, 3/8" - .938 x .391 x .105" Price: Call Us |
| 23 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 25 |
48100-15 |
Bushing, .376 ID Oilite Price: Call Us |
| 26 |
04030-03 |
Lockwasher 5/16" Price: Call Us |
| 27 |
04040-15 |
Flatwasher 5/16" Price: Call Us |
| 28 |
483703 |
Spring, RH Deck Drive Price: Call Us |
| 29 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 30 |
462269 |
Idler Arm This part replaces 461940. Price: Call Us |
| 32 |
483286 |
Pulley, Tapered Bore 6.33" Dia. Price: Call Us |
| 33 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 34 |
461663 |
Spindle Assembly Price: Call Us |
| 35 |
43589 |
Shaft, Spindle Price: Call Us |
| 36 |
481024 |
Seal Upper Price: Call Us |
| 37 |
481022 |
Bearing Assembly Price: Call Us |
| 38 |
48114-04 |
Grease Fitting Price: Call Us |
| 39 |
48677 |
Valve, Grease Relief Price: Call Us |
| 40 |
43644 |
Housing, Spindle Price: Call Us |
| 41 |
43312 |
Spacer, Outside Price: Call Us |
| 42 |
43296 |
Spacer, Inside Price: Call Us |
| 43 |
481025 |
Seal, Lower Price: Call Us |
| 44 |
43297 |
Bushing, Bottom Price: Call Us |
| 45 |
481035 |
Nut, Special 1-1/16 - 18 Price: Call Us |
| 46 |
43590 |
Spacer, Spindle Price: Call Us |
| 47 |
482879 |
Cutter Blade, 21" (61H) Price: Call Us |
| 48 |
483287 |
Pulley, Double Groove 6.33" Dia. Price: Call Us |
| 49 |
424367 |
Dust Shield Price: Call Us |
| 50 |
483210 |
Idler Pulley, 5" Dia. Price: Call Us |
| 51 |
48181 |
Idler Pulley, 5" Dia. Price: Call Us |
| 52 |
424575 |
Belt Cover (61V) Price: Call Us |
| 53 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 54 |
486045 |
Pulley, 3-1/2" Dia. This part replaces 483415. Price: Call Us |
| 55 |
43689 |
Pivot, Idler Price: Call Us |
| 56 |
48224 |
Bearing Price: Call Us |
| 57 |
424209 |
Turbo Baffle, Bolt On Price: Call Us |
| 58 |
451240 |
Push Arm Shaft Price: Call Us |
| 59 |
461516 |
Push Arm (Includes 64,60,62) Price: Call Us |
| 60 |
04020-16 |
Nut, 5/8-18 UNF Price: Call Us |
| 61 |
04021-13 |
Nut, Elastic Stop 5/8-11 Price: Call Us |
| 62 |
48763 |
Rod End, 5/8 Male RH Thread Price: Call Us |
| 63 |
04001-79 |
Bolt, Hex Head 5/8-11 x 4-1/2" Price: Call Us |
| 64 |
48114-04 |
Grease Fitting, 90 Degree Price: Call Us |
| 65 |
483243 |
Belt, Deck Drive 61V Price: Call Us |
| 66 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 67 |
483378 |
Spring, Discharge Chute This part replaces 483185. Price: Call Us |
| 68 |
424841 |
Baffle Custom-Cut, 61V (7-Position) Price: Call Us |
| 69 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 70 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105" Price: Call Us |
| 71 |
04001-77 |
Bolt, Hex Head 3/8-16 X 3-1/2" Price: Call Us |
| 72 |
483157 |
Belt, Deck Drive RH Price: Call Us |
| 73 |
482295 |
Wheel, Anti Scalp Price: Call Us |
| 74 |
45944 |
Roller Shaft Price: Call Us |
| 75 |
483167 |
Bolt, Special Price: Call Us |
| 76 |
04003-40 |
Bolt, Carriage 7/16-14 x 1-1/4" Price: Call Us |
| 77 |
461929 |
Lever Assy., Deck Level Price: Call Us |
| 78 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8 Price: Call Us |
| 79 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 80 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 81 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 82 |
43689 |
Pivot, Idler Short Price: Call Us |
| 83 |
04003-12 |
Bolt, Carr. 5/16-18 x 3/4" Price: Call Us |
| 84 |
483176 |
Wear Pad Price: Call Us |
| 85 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065" Price: Call Us |
| 86 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 87 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 88 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 89 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 90 |
04040-11 |
Flatwasher, 7/16-.500 x 1.250 x .083" Price: Call Us |
| 91 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 92 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 93 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 94 |
483287 |
Pulley, Double Groove 6.33" Dia. Price: Call Us |
