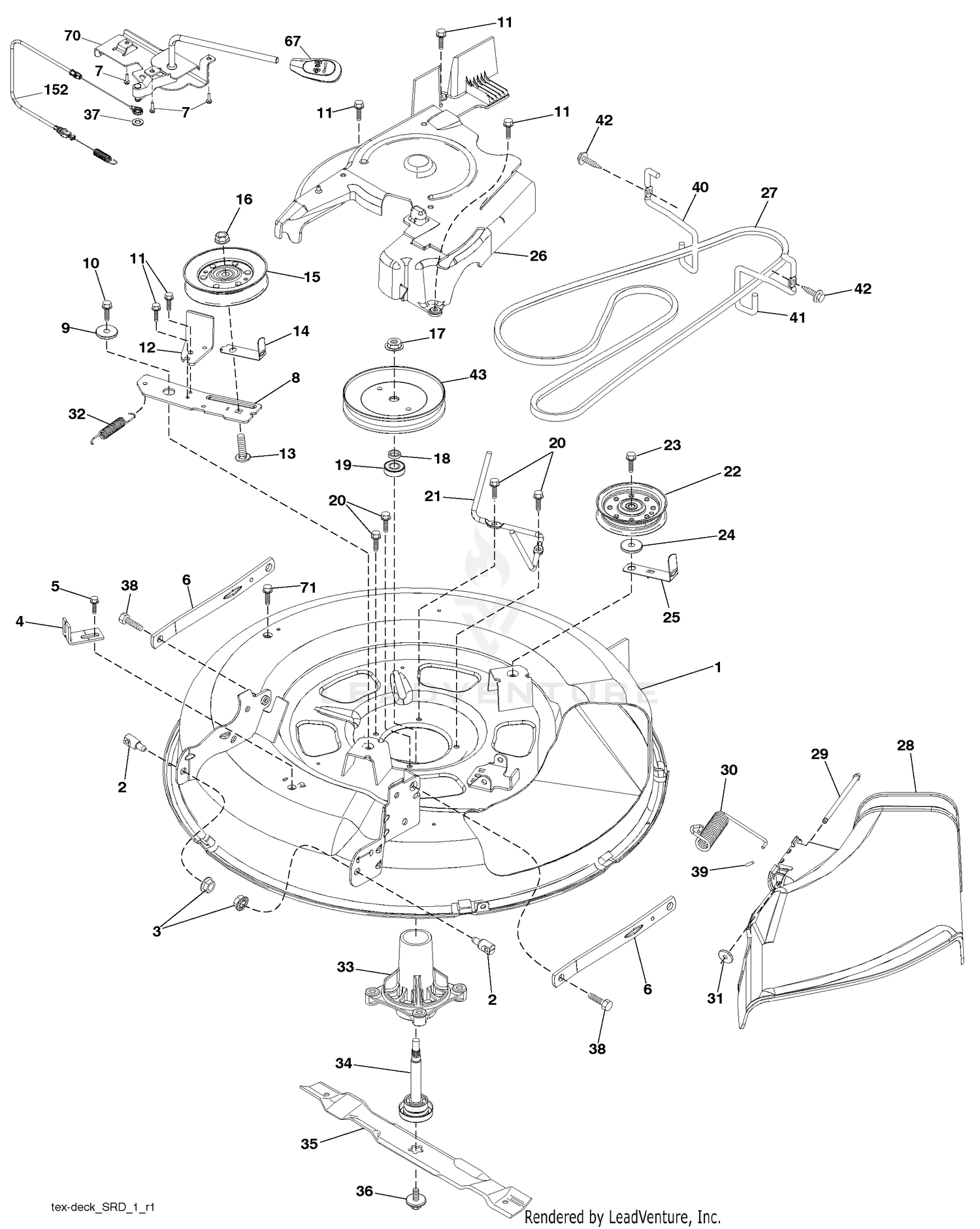

| Ref | Part Number | Description |
|---|
| 1 |
419272 |
Deck Weldment 30"Srd Price: Call Us |
| 2 |
195161 |
Stud Fastner w/'d'anti-Rotatio Price: Call Us |
| 3 |
73900500 |
Nut Lock Hex Flange 5/16 - 18 Price: Call Us |
| 4 |
417645 |
Bracket Clutch Cable Price: Call Us |
| 5 |
17000510 |
Bolt 5/16-18 Price: Call Us |
| 6 |
418863 |
Arm Susp Mower Rear Srd Price: Call Us |
| 7 |
416358 |
Screw #10 x 0.750 BOS Thread Price: Call Us |
| 8 |
420252 |
Arm Idler 30"Srd Price: Call Us |
| 9 |
199092 |
Spacer Retainer Price: Call Us |
| 10 |
17000616 |
Screw 3/8 - 16 X 1 Smgml Tap/R Blk Price: Call Us |
| 11 |
137729 |
Screw Thd Roll 1/4 - 20 X 5/8 Price: Call Us |
| 12 |
199470 |
Arm Brake Mower 38" RH Tex Price: Call Us |
| 13 |
72110612 |
Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5 Price: Call Us |
| 14 |
156085 |
Keeper Belt Idler Price: Call Us |
| 15 |
146763 |
Pulley Idler V-Groove Dim 4.25 Price: Call Us |
| 16 |
73900600 |
Nut Lock FlG 3/8 - 16 unc Price: Call Us |
| 17 |
400234 |
Nut Flange Lock Top Price: Call Us |
| 18 |
187690 |
Washer Spacer Mandrel Price: Call Us |
| 19 |
110485X |
Bearing Ball Mandrel Price: Call Us |
| 20 |
173984 |
Screw Thd Roll Dod Pt Hex Price: Call Us |
| 21 |
416910 |
Keeper Belt Mandrel 30" Price: Call Us |
| 22 |
193198 |
Pulley Idler Flat Unplated Price: Call Us |
| 23 |
17490628 |
Screw Thdrol 3/8 - 16 X 1-3/4 Price: Call Us |
| 24 |
19132012 |
Washer 13/32 X 1 - 1/4 X 12 Ga Price: Call Us |
| 25 |
420253 |
Keeper Belt 30"Srd Price: Call Us |
| 26 |
420255 |
Cover Mandrel Mwr 30"Black Price: Call Us |
| 27 |
419271 |
Drive, Belt Price: Call Us |
| 28 |
417344 |
Deflector Price: Call Us |
| 29 |
420895 |
Hinge Pin Price: Call Us |
| 30 |
197026 |
Spring Torsion Price: Call Us |
| 31 |
110452X |
Nut Push Price: Call Us |
| 32 |
401872 |
Spring Return Deck 38/46" Price: Call Us |
| 33 |
187281 |
Housing Mandrel 4pt Service Price: Call Us |
| 34 |
192872 |
Shaft Asm Mndrl N/Greaseable 38 Price: Call Us |
| 35 |
419274 |
Blade Mower Bagging Srd Price: Call Us |
| 36 |
193003 |
Bolt/Washer Asm 7/16 - 20 unf Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 38 |
196539 |
Bolt Shoulder Price: Call Us |
| 39 |
105304X |
Cap Sleeve Price: Call Us |
| 40 |
419270 |
Keeper Belt Engine LH Price: Call Us |
| 41 |
419265 |
Keeper Belt Engine RH Price: Call Us |
| 42 |
17000612 |
Screw Hexwsh THDR 3/8-16 x 3/4 BL Price: Call Us |
| 43 |
416877 |
Pulley Mandrel 6 5 Pd 30" Price: Call Us |
| 67 |
198398X428 |
Handle clutch cable Price: Call Us |
| 70 |
198332 |
Clutch Asm. Manual Price: Call Us |
| 71 |
17670608 |
Screw 3/8-16 x 1/2 Price: Call Us |
| 152 |
408714 |
Manual Clutch Cable Price: Call Us |
