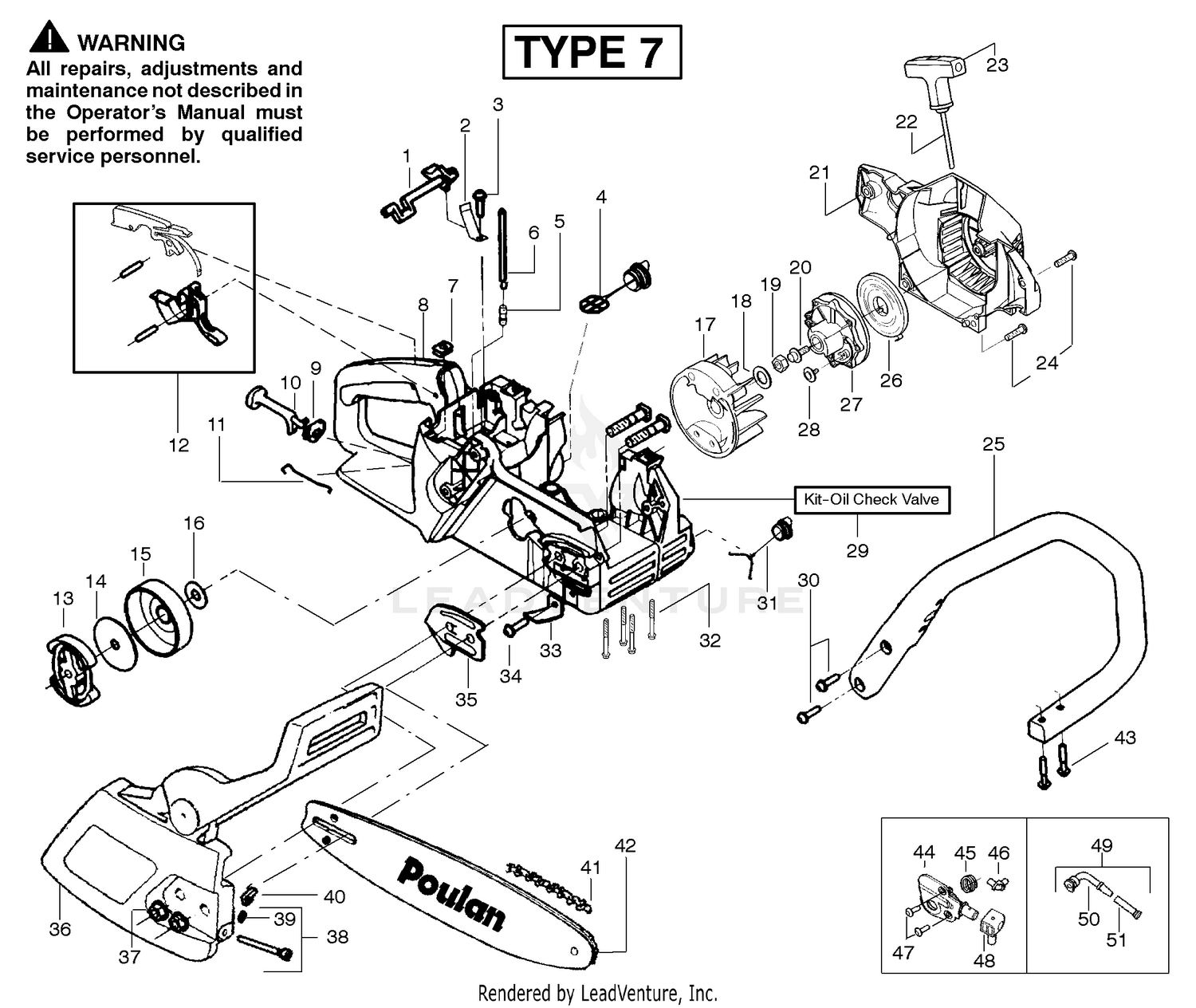

| Ref | Part Number | Description |
|---|
| 1 |
108-9083 |
PLATE-SIDE, RH Price: $328.36 |
| 2 |
108-9082 |
PLATE-SIDE, LH Price: $328.36 |
| 2 |
530016149 |
Spring-Switch Price: $1.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
530015775 |
Screw Price: $1.99 |
| 4 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
530023877 |
Fitting Price: $1.99 |
| 6 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
530015922 |
Nut-Speed Price: $1.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
530058909 |
Assy-Chassis Price: $49.99 |
| 9 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 9 |
530049005 |
Grommet-Choke Knob Price: $1.99 |
| 10 |
530047989 |
Lever-Choke Price: $1.99 |
| 11 |
530037809 |
Wire-Throttle Price: $1.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
530071832 |
Kit-Trigger & Lockout Price: $6.99 |
| 13 |
115-2007 |
ROD-SPRING Price: $34.97 |
| 13 |
530014949 |
Assy. - Clutch Price: $7.99 |
| 14 |
530015611 |
Washer-Clutch Price: $1.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
530047061 |
Assy-Drum W/brg. Price: $11.99 |
| 16 |
119-8010-03 |
KICKSTAND This part replaces 110-4088-03. Price: $34.60 |
| 16 |
530015907 |
Washer - Thrust Price: $1.99 |
| 17 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 17 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 18 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 18 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 19 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
530015920 |
Screw Price: $1.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 21 |
530049337 |
Housing-Fan Price: $11.99 |
| 22 |
530069232 |
Kit-Rope Price: $3.99 |
| 22 |
67-9410 |
WASHER Price: $2.04 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 23 |
530056402 |
Handle-Starter Price: $2.99 |
| 24 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 24 |
530015892 |
Screw Price: $1.99 |
| 25 |
110-9713 |
CARRIER FRAME ASM Price: $642.24 |
| 25 |
530059173 |
Handle-Front This part replaces 530056798. Price: $17.99 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 26 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 27 |
323-7 |
SCREW-HH Price: $0.65 |
| 27 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 28 |
114-3972 |
CHAIN Price: $8.62 |
| 28 |
530016080 |
Screw Price: $1.99 |
| 29 |
112-6564 |
BRACKET-CHAIN Price: $47.71 |
| 29 |
530071666 |
Kit-Oil Check Valve Price: $7.99 |
| 30 |
530015814 |
Screw Price: $1.99 |
| 31 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 32 |
530016132 |
Screw Price: $1.99 |
| 33 |
530029850 |
Chain Catcher Price: $1.99 |
| 34 |
530015814 |
Screw Price: $1.99 |
| 35 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 36 |
545139903 |
Assy-Chain Brake This part replaces 530054740. Price: $59.99 |
| 37 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 39 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 40 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 41 |
581562101 |
ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 42 |
952044368 |
BAR 14" .050 3/8 041 52DL Price: $14.99 |
| 43 |
530015940 |
Screw Price: $1.99 |
| 45 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 46 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 47 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 48 |
530019206 |
Seal Block Price: $1.99 |
| 50 |
530038373 |
Pickup-Oiler Price: $1.99 |
