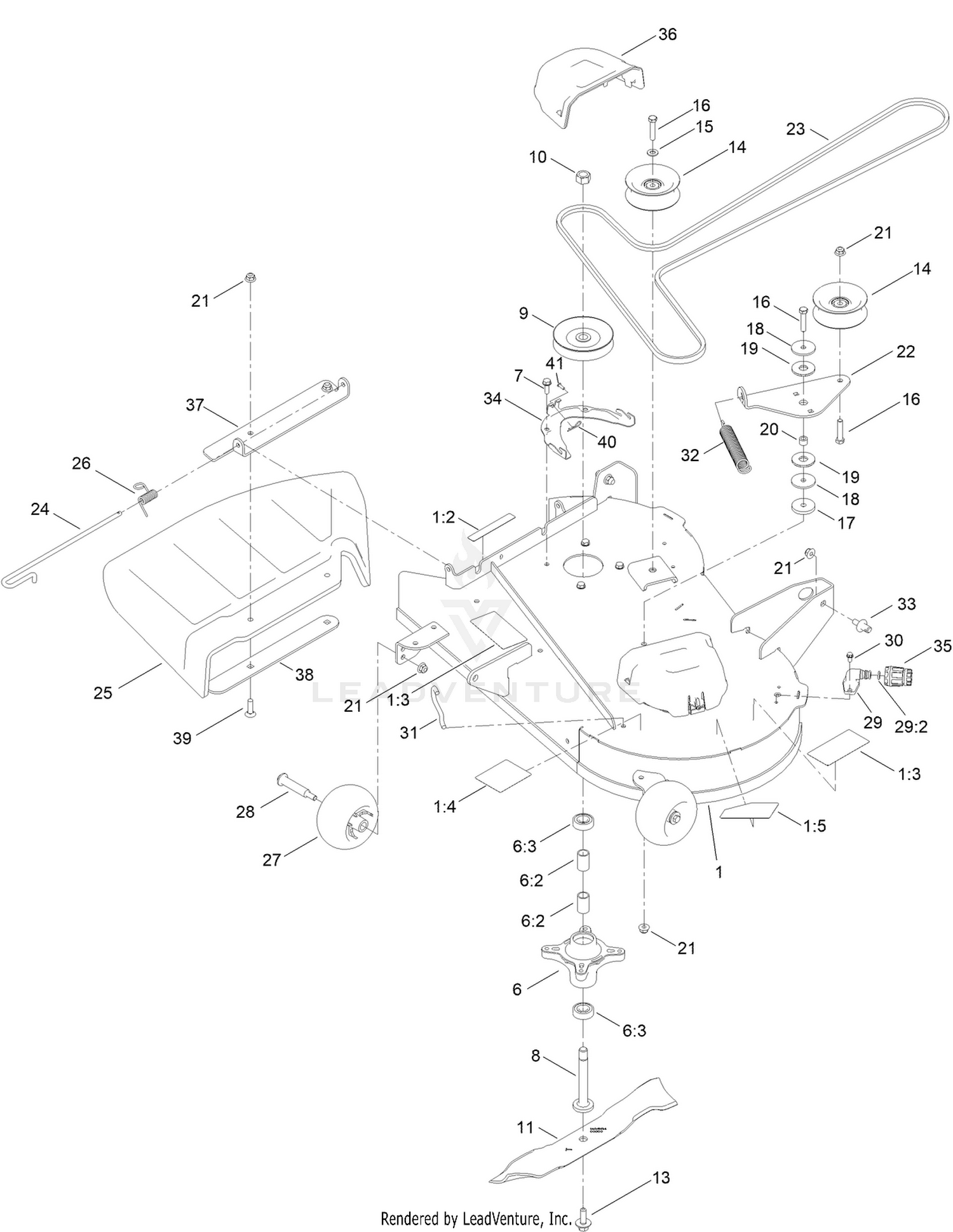

34in Deck and Decal Assembly
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 139-3214 | SPINDLE ASM Price: $51.71 |
| 7 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
| 8 | 117-7268 | SHAFT-SPINDLE Price: $19.98 |
| 9 | 127-0098 | PULLEY ASM Price: $26.67 |
| 10 | 3219-6 | NUT-HEX Price: $2.78 |
| 11 | 140-5134-03 | BLADE 17.50 Price: $24.06 |
| 13 | 145-0411 | BOLT-BLADE, SEMS Price: Call Us |
| 14 | 132-9420 | PULLEY-IDLER, FLAT Price: $25.16 |
| 15 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 16 | 323-9 | SCREW-HH Price: $1.29 |
| 17 | 110-9981 | WASHER-PLAIN Price: $13.99 |
| 18 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 19 | 114-0463 | WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 20 | 115-4986 | SPACER Price: $1.39 |
| 21 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 22 | 138-7262 | ARM-IDLER Price: $12.02 |
| 23 | 140-5141 | BELT-V Price: $43.77 |
| 24 | 138-7231 | PIN-CHUTE Price: $6.01 |
| 25 | 140-3548 | DEFLECTOR-RUBBER Price: $38.30 |
| 26 | 138-7232 | SPRING-TORSION Price: $1.69 |
| 27 | 1-603299 | ROLLER-SCALP, ANTI Price: $21.99 |
| 28 | 112-3977 | BOLT-SHOULDER Price: $7.37 |
| 29 | 133-9289 | FITTING-WASHOUT Price: $3.86 |
| 30 | 32144-4 | SCREW-HWH Price: $1.29 |
| 31 | 138-7267 | HOOK-SPRING, RETURN Price: $1.12 |
| 32 | 138-7265 | SPRING EXTENSION Price: $4.88 |
| 33 | 139-5871 | PIN-DECK Price: $1.66 |
| 34 | 139-3272-03 | BRACKET-COVER, BELT Price: $7.82 |
| 35 | 95-3270 | CONNECTOR-HOSE Price: $22.99 |
| 36 | 144-1905 | COVER-BELT Price: $4.37 |
| 37 | 144-1956-03 | BRACKET-DEFLECTOR, TOP Price: $20.79 |
| 38 | 144-1957-03 | PLATE-DEFLECTOR, BOTTOM Price: $13.12 |
| 39 | 3231-28 | SCREW-CARR Price: $1.92 |
| 40 | 144-1944 | PIN-HAIR Price: $0.32 |
