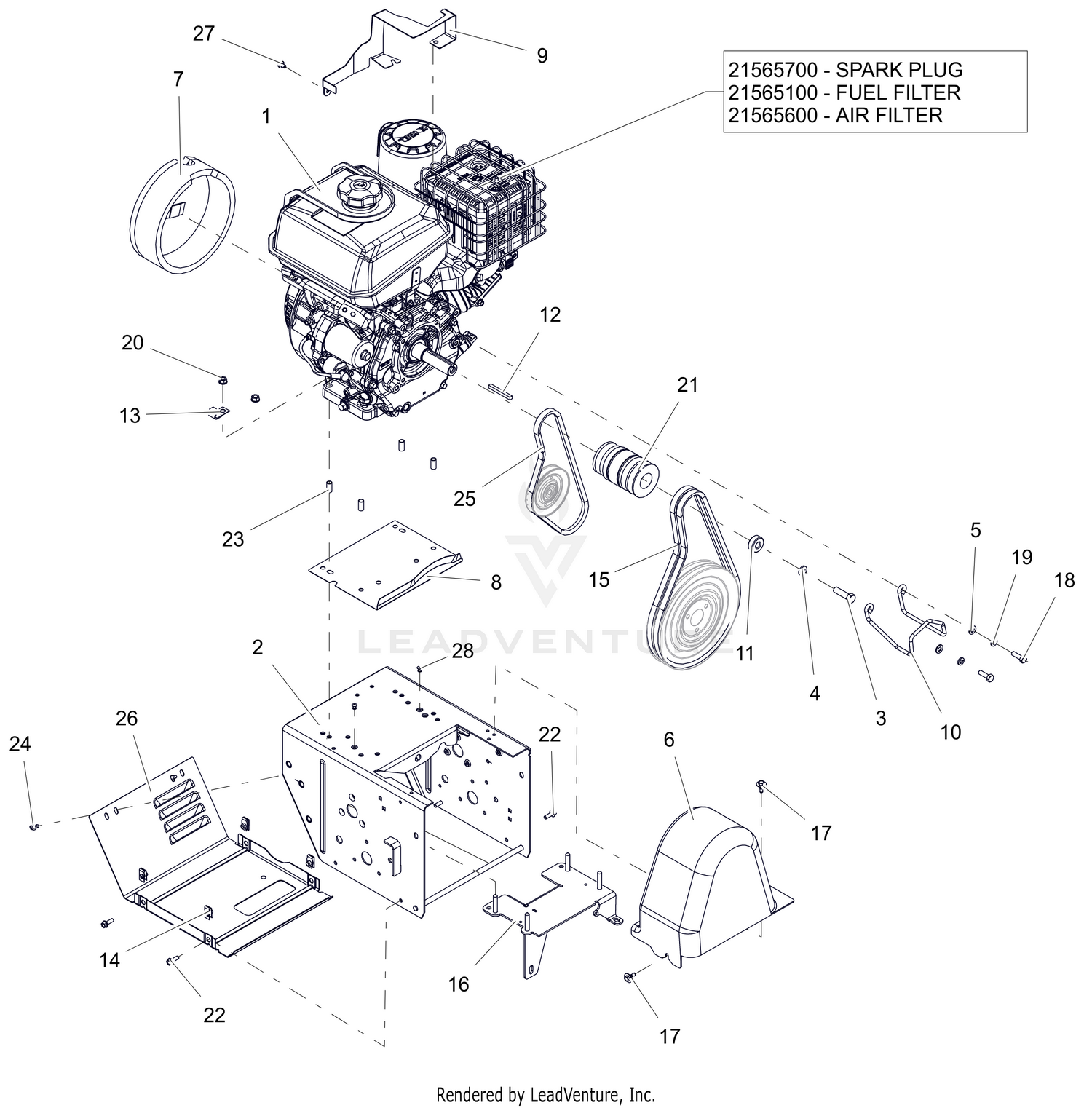

| Ref | Part Number | Description |
|---|
| 1 |
08201315 |
ENGINE, KOHLER - CH395 12V Price: Call Us |
| 2 |
04999959 |
FRAME, MAIN - PRO (WELDMENT) Price: $153.45 |
| 3 |
05902004 |
BLT, HEX .44-20X1.50 G5ZCCEP80 Price: $5.45 |
| 4 |
06300121 |
WSHR, LK-REG .438X.109 ZCC Price: $2.45 |
| 5 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC Price: $0.45 |
| 6 |
03965700 |
COVER, BELT-TALL PRO Price: $123.45 |
| 7 |
05173700 |
COVER, RECOIL - KOHLER CH395 Price: $40.95 |
| 8 |
04990851 |
BAFFLE, WATER - LARGE BLOCK Price: $14.95 |
| 9 |
05173851 |
BRKT, ENGINE - KOHLER CH395 Price: $23.45 |
| 10 |
05273300 |
FINGER, BELT Price: $22.95 |
| 11 |
05500938 |
BSHG-SPACER .47X1.25X.50 Price: $11.95 |
| 12 |
06610300 |
KEY .25X.25X2.25 Price: $2.95 |
| 13 |
06909400 |
J-CLAMP Price: $3.45 |
| 14 |
07009000 |
NUT-RTNR .25-20X.56 Price: $0.95 |
| 15 |
07200601 |
V-BELT, HA-RAW EDGE (SET) Price: $51.95 |
| 16 |
04451300 |
BRKT, HYDRO TRANS LG Price: $27.95 |
| 17 |
07400108 |
SCR-TAP .25-20X.5 CAPTIVE Price: $2.45 |
| 18 |
05902108 |
BLT, HEX 0.3125-24X1 G5 ZCC Price: $1.95 |
| 19 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC Price: $0.45 |
| 20 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 21 |
05171900 |
SHEAVE, COMBO HYDRO WHEEL Price: $61.95 |
| 22 |
05901824 |
BLT, HWH .25-20X.75 G5 ZCC Price: $1.45 |
| 23 |
05500937 |
BSHG-SLV .325X.400X.795 Price: $3.45 |
| 24 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 25 |
07200631 |
V-BELT, 4L-WRAPPED Price: $26.45 |
| 26 |
04516659 |
COVER, BOTTOM - VENTILATED Price: $39.45 |
| 27 |
05901915 |
BLT, HEX M6-1.0X10 G10.9 ZCC Price: $3.45 |
