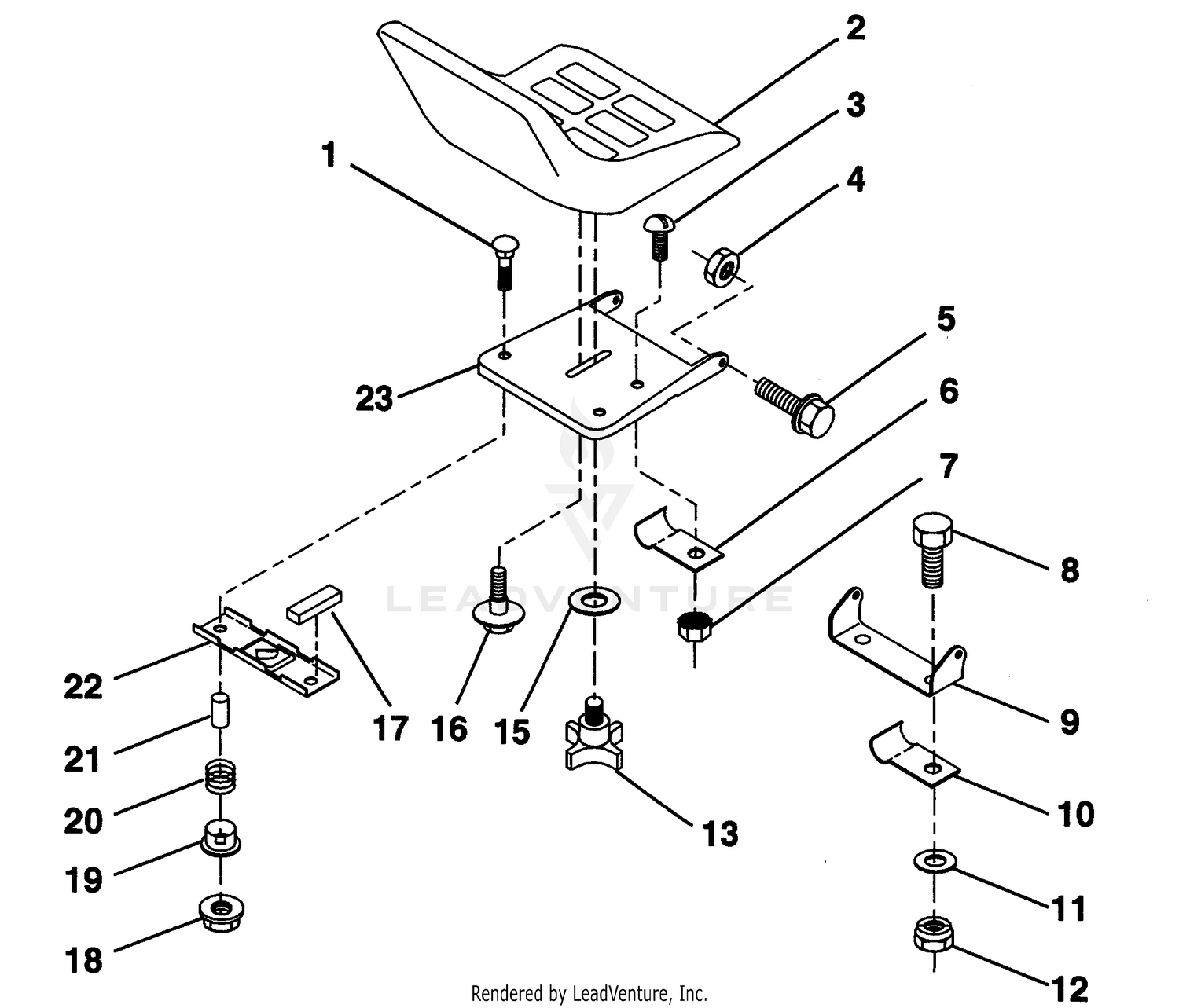

| Ref | Part Number | Description |
|---|
| 1 |
5-1756 |
DISCONTINUED Price: Call Us |
| 1 |
872050411 |
Bolt, Carriage 1/4-20 x 1-3/8 Price: $2.99 |
| 2 |
5-1755 |
DISCONTINUED Price: Call Us |
| 2 |
532127424 |
Seat (AYP part number) Price: $3.33 |
| 3 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 3 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number) Price: $2.99 |
| 4 |
323-5 |
SCREW-HH Price: $0.41 |
| 4 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 5 |
251-166 |
BEARING-FLANGE Price: $14.74 |
| 5 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 6 |
251-165 |
BEARING-BALL Price: $104.65 |
| 6 |
532124967 |
Clip, Insulated (AYP part number) Price: $5.46 |
| 7 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
873951000 |
Nut, Keps #10-32 UNF (AYP part number) Price: $5.99 |
| 8 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 8 |
874760612 |
Bolt, Hex, Fin 3/8-16 UNC x 3/4 (AYP part number) Price: $1.99 |
| 9 |
287-5 |
DISCONTINUED Price: Call Us |
| 9 |
532126656 |
Bracket, Pivot, Seat (AYP part number) Price: $5.46 |
| 10 |
5-1743 |
DISCONTINUED Price: Call Us |
| 10 |
532126471 |
Clip, Insulated (AYP part number) Price: $2.99 |
| 11 |
3220-7 |
NUT-JAM Price: $4.09 |
| 11 |
819131210 |
Washer 13/32 x 2 x 10 Gauge (AYP part number) Price: $2.99 |
| 12 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 12 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 13 |
5-1727 |
DISCONTINUED Price: Call Us |
| 13 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 14 |
3211-17 |
SCREW-HH Price: Call Us |
| 15 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 15 |
819171912 |
Washer 17/32 x 1-3/16 x 12 Gauge (AYP part number) Price: $3.99 |
| 16 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 16 |
532127018 |
Bolt, Shoulder (AYP part number) Price: $3.99 |
| 17 |
5-1747 |
SPRING-ADJUSTMENT Price: $5.76 |
| 17 |
532121251 |
Strip, Foam (AYP part number) Price: $5.46 |
| 18 |
5-1744 |
DISCONTINUED Price: Call Us |
| 18 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 19 |
5-1746 |
DISCONTINUED Price: Call Us |
| 19 |
532121248 |
Bushing, Snap (AYP part number) Price: $3.99 |
| 20 |
5-1730 |
DISCONTINUED Price: Call Us |
| 20 |
532121250 |
Spring, Compression (AYP part number) Price: $3.99 |
| 21 |
532121249 |
Spacer, Split, Large .28 Id. x .88 (AYP part number) Price: $3.99 |
| 21 |
59-9740 |
FLEX DRAW LATCH ASM This part replaces 2-4939. Price: $36.89 |
| 22 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 22 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 23 |
3219-3 |
NUT-HEX Price: $0.34 |
| 24 |
5-1752 |
DISCONTINUED Price: Call Us |
| 25 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 26 |
5-1751 |
DISCONTINUED Price: Call Us |
| 27 |
271-10 |
DISCONTINUED Price: Call Us |
| 28 |
3257-14 |
KEY Price: $6.19 |
| 29 |
3-4805 |
DISCONTINUED Price: Call Us |
| 30 |
3-4751 |
DISCONTINUED Price: Call Us |
| 31 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 32 |
22-1080 |
DISCONTINUED Price: Call Us |
| 33 |
3258-53 |
Screw Price: Call Us |
| 34 |
5-1758 |
DISCONTINUED Price: Call Us |
| 35 |
5-1757 |
DISCONTINUED Price: Call Us |
| 36 |
3220-1 |
NUT-JAM Price: $0.99 |
| 37 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 38 |
236-1 |
DISCONTINUED Price: Call Us |
| 39 |
5-1742 |
DISCONTINUED Price: Call Us |
| 40 |
3217-6 |
NUT-HEX Price: $1.19 |
| 41 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 42 |
5-1745 |
DISCONTINUED Price: Call Us |
| 43 |
5-1741 |
DISCONTINUED Price: Call Us |
| 44 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 45 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
3219-2 |
NUT-HEX Price: $0.37 |
| 48 |
3253-4 |
WASHER-LOCK Price: $0.25 |
