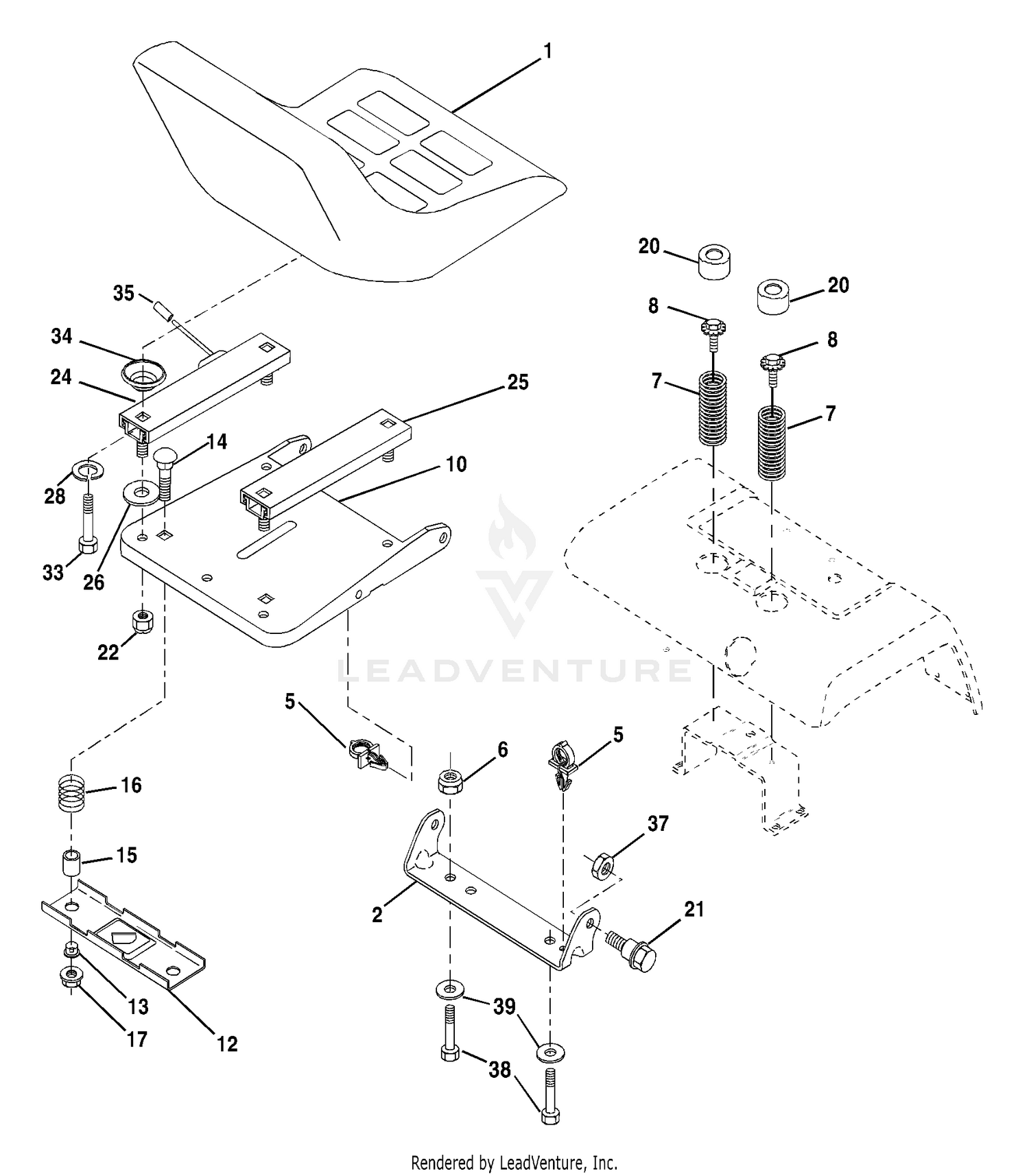

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 1 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
98-1459 |
DECAL Price: $3.93 |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
87-6620 |
SCREW Price: $1.29 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
93-7998-03 |
PLATE-INSTRUMENT Price: $40.21 |
| 9 |
27-2360 |
SWITCH Price: $46.56 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
104-1492 |
ROD ASM Price: $65.49 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 |
98-3912 |
TUBE ASM Price: $113.52 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
98-3910 |
TUBE ASM Price: $115.74 |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
63-7900-03 |
RACK Price: $144.55 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 20 |
98-3908 |
TUBE ASM Price: $92.85 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
94-9951 |
COLUMN-STEERING Price: $366.29 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
98-3909 |
TUBE ASM Price: $85.32 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 24 |
532177946 |
TRACK SLIDE, SEAT(L) Price: $59.99 |
| 25 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 25 |
532177947 |
TRACK SLIDE, SEAT(R) Price: $119.99 |
| 26 |
130-7945 |
VALVE-STEERING CONTROL This part replaces 99-8959. Price: $1,130.87 |
| 26 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 28 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 28 |
810010500 |
WASHER Price: $3.99 |
| 29 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 30 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 31 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 32 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 33 |
104-9325 |
SPEEDOMETER KIT,RM5000 SERIES This part replaces 85-4420. Price: $449.92 |
| 33 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 34 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 35 |
107-2562 |
NUT-HEX This part replaces 94-9952. Price: $19.95 |
| 35 |
583670601 |
CAP.VINYL.BLK.SERVICE This part replaces 532178426. Price: $2.99 |
| 36 |
98-3911 |
TUBE ASM Price: $108.87 |
| 37 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 38 |
322-7 |
SCREW-HH Price: $0.89 |
| 38 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 39 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 41 |
69-8970 |
SPACER Price: $9.57 |
| 42 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 43 |
340-70 |
NUT-LOCK Price: $2.10 |
| 44 |
69-8940 |
WASHER Price: $1.76 |
