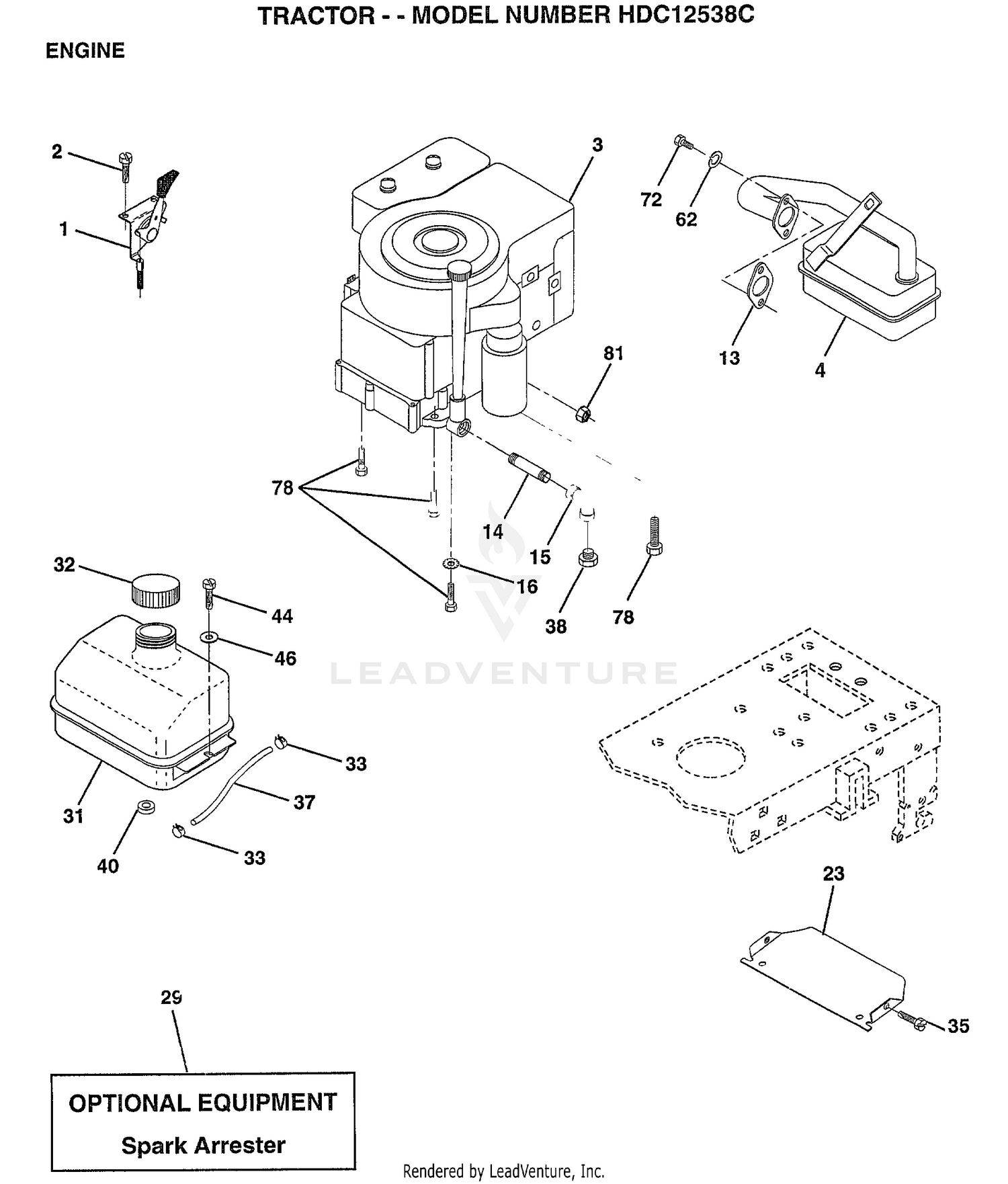

| Ref | Part Number | Description |
|---|
| 1 |
140310 |
CONTROL THROTTLE Price: Call Us |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 4 |
137348 |
MUFFLER Price: Call Us |
| 10 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 35 |
17490512 |
SCREW Price: Call Us |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 72 |
71070512 |
SCREW Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
