Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts

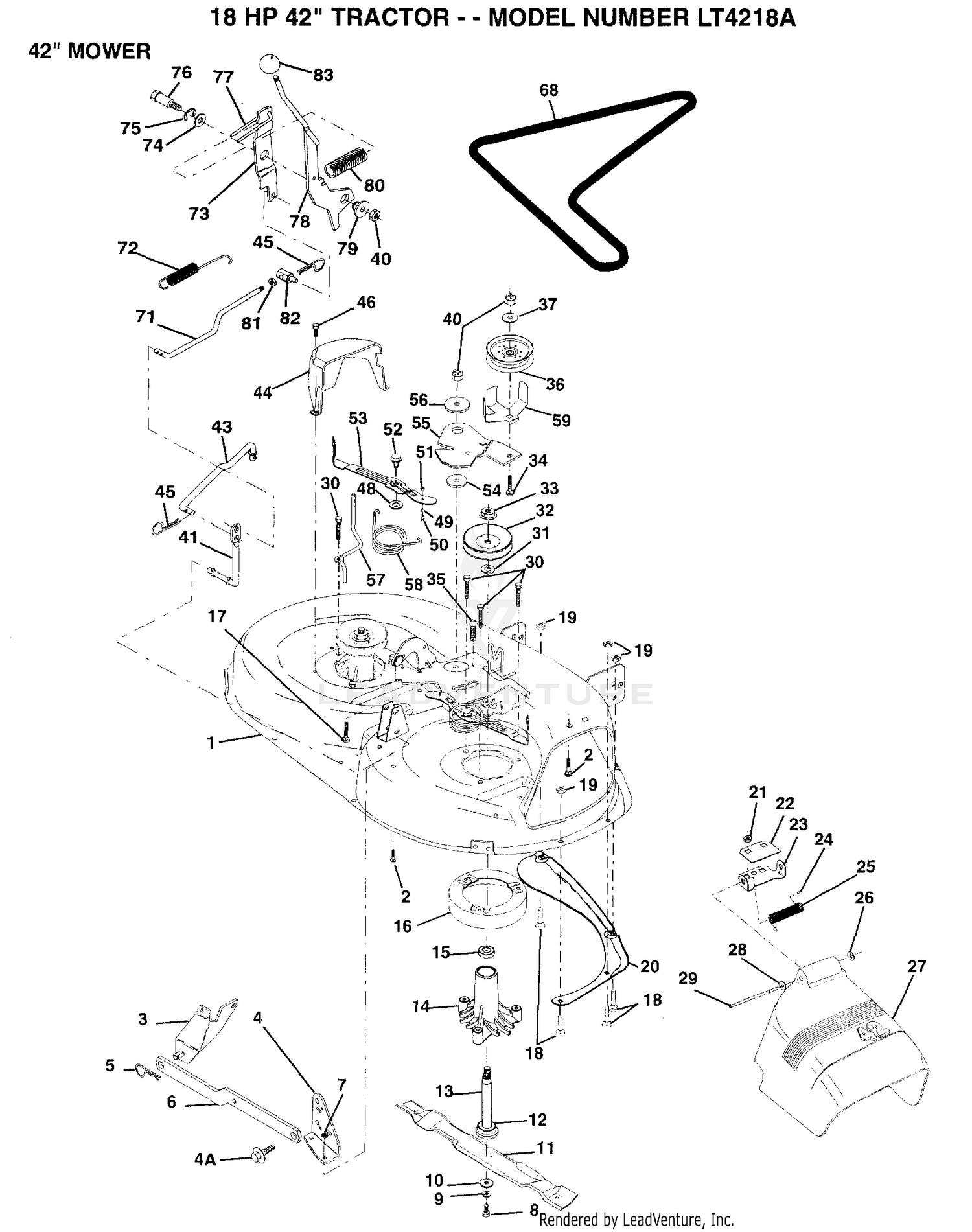

MOWER

MOWER

Parts (96)

RefPart NumberDescription
1 140081 SUB= 144393 Price: Call Us
2 72140506 BOLT Price: Call Us
2 85-9610 HOSE-HYD Price: $71.23
3 138017 BRKT ASM SWAY BAR Price: Call Us
3 98-0938 PUMP RESERVE TUBE ASM Price: $53.96
4 138440 BRKT DECK SW BAR Price: Call Us
4A 132827 BOLT SHD 5/16-18 Price: Call Us
5 3296-23 NUT-LOCK, NI Price: $0.52
5 4939M SUB= 85902 Price: Call Us
6 130832 SUB= 130833 Price: Call Us
6 3241-5 SCREW-SET Price: $0.61
7 322-4 SCREW-HH Price: $0.35
7 73800500 NUT Price: Call Us
8 125-9249 SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15
8 850857 BLADE BOLT Price: Call Us
9 10030600 SUB= 10040600 Price: Call Us
9 80-8650 COUPLING-DRIVE Price: $32.04
10 140296 WASHER.HARD.BLADE Price: Call Us
10 3296-29 NUT-LOCK, NI Price: $2.09
11 85-8770 COUPLING Price: $88.09
12 129895 BEARING.BALL Price: Call Us
12 85-9020 KEY-SQUARE Price: $3.11
13 137645 SUB= 137646 Price: Call Us
13 85-8730 HUB-ENGINE Price: $129.58
14 128774 HSG ASM MANDREL Price: Call Us
14 85-8700 DISCONTINUED-SEE PB#957 Price: Call Us
15 110485X BEARING Price: Call Us
15 87-8170 FITTING-90 This part replaces 95-0629. Price: $39.34
16 136929 SUB= 140329 Price: Call Us
16 98-0969 HOSE-INLET, PUMP Price: $73.89
17 2412-129 CLAMP-HOSE Price: $2.10
17 72110610 BOLT RDHD 3/8-16 Price: Call Us
18 72140505 BOLT Price: Call Us
18 98-0989 HOSE-HYD Price: $84.56
19 340-77 FITTING-ELBOW, 90 DEG Price: $24.95
19 73800500 NUT Price: Call Us
20 136888 SUB= 918136888 Price: Call Us
20 85-9590 HOSE-HYD Price: $74.97
21 73800500 NUT Price: Call Us
22 134753 STIFFENER BRKT Price: Call Us
22 85-8670 HUB-FAN Price: $88.29
23 131267 DEFLECTOR BRKT Price: Call Us
23 85-9560 FAN Price: $46.79
24 104-2065 SCREW-HWH Price: $0.28
24 105304X CAP-SLEEVE LT Price: Call Us
25 123713X SPRING TORSION Price: Call Us
25 132-4352 PUMP-PISTON, VARIABLE This part replaces 95-5842. Price: $2,636.67
26 110452X NUT PUSH M Price: Call Us
26 3274-5 SCREW-HSH Price: $4.00
27 130968 DEFLECTOR.SHIELD Price: Call Us
27 340-98 FITTING-ELBOW, 90 DEG Price: $31.91
28 19111016 WASHER Price: Call Us
28 354-126 FITTING-ELBOW, 45 Price: $43.50
29 131491 HINGE ROD Price: Call Us
29 2412-36 CLAMP-HOSE Price: $1.28
30 138776 SUB= 157722 Price: Call Us
31 129963 WASHER Price: Call Us
32 129861 SUB= 153535 Price: Call Us
33 137266 SUB= 139729 Price: Call Us
34 72110614 BOLT Price: Call Us
35 133835 XMAS TREE FASTNER Price: Call Us
36 131494 FLAT IDLER PULLEY Price: Call Us
37 19131316 WASHER Price: Call Us
40 73800600 NUT Price: Call Us
41 133551 PIVOT ROD Price: Call Us
43 140083 ROD CLUTCH W/NIBS Price: Call Us
44 140088 GUARD MAND LH BLK Price: Call Us
45 4497H RETAINER M Price: Call Us
46 137729 SCREW.1/4-20X5/8 Price: Call Us
48 133944 HARD SMALL WASHER Price: Call Us
49 133940 SUB= 151785 Price: Call Us
50 131340 SHOULDER BOLT Price: Call Us
51 69180 LOCKNUT Price: Call Us
52 139888 BOLT.SHLD.5/16-18 Price: Call Us
53 131845 BRAKE PAD ARM ASM Price: Call Us
54 133943 HARDENED WASHER Price: Call Us
55 140084 SUB= 151785 Price: Call Us
56 122052X SPACER RETAINER Price: Call Us
68 140067 BELT-V MWR 82.625 Price: Call Us
71 142427 ROD CLUTCH 38/42 Price: Call Us
72 133435 SPRING EXT Price: Call Us
73 127847 CLUTCH ARM SECOND Price: Call Us
74 121748X WASHER Price: Call Us
75 12000029 RING Price: Call Us
76 128903 SHOULDER BOLT Price: Call Us
77 127845 SPRING KEEPER Price: Call Us
78 140333 SUB= 140333X431 Price: Call Us
79 127498 BUSHING Price: Call Us
80 128759 SUB= 918128759 Price: Call Us
83 106933X KNOB T (1/2-HOLE) Price: Call Us
90 140090 KEEPER BELT LH 42 Price: Call Us
91 141043 GUARD IDLER TUV Price: Call Us
92 140086 SPRING TORSN BRAK Price: Call Us
94 73350600 NUT Price: Call Us
95 142028 TRUNION ADJ Price: Call Us
130794 MANDREL ASM Price: Call Us 130794
