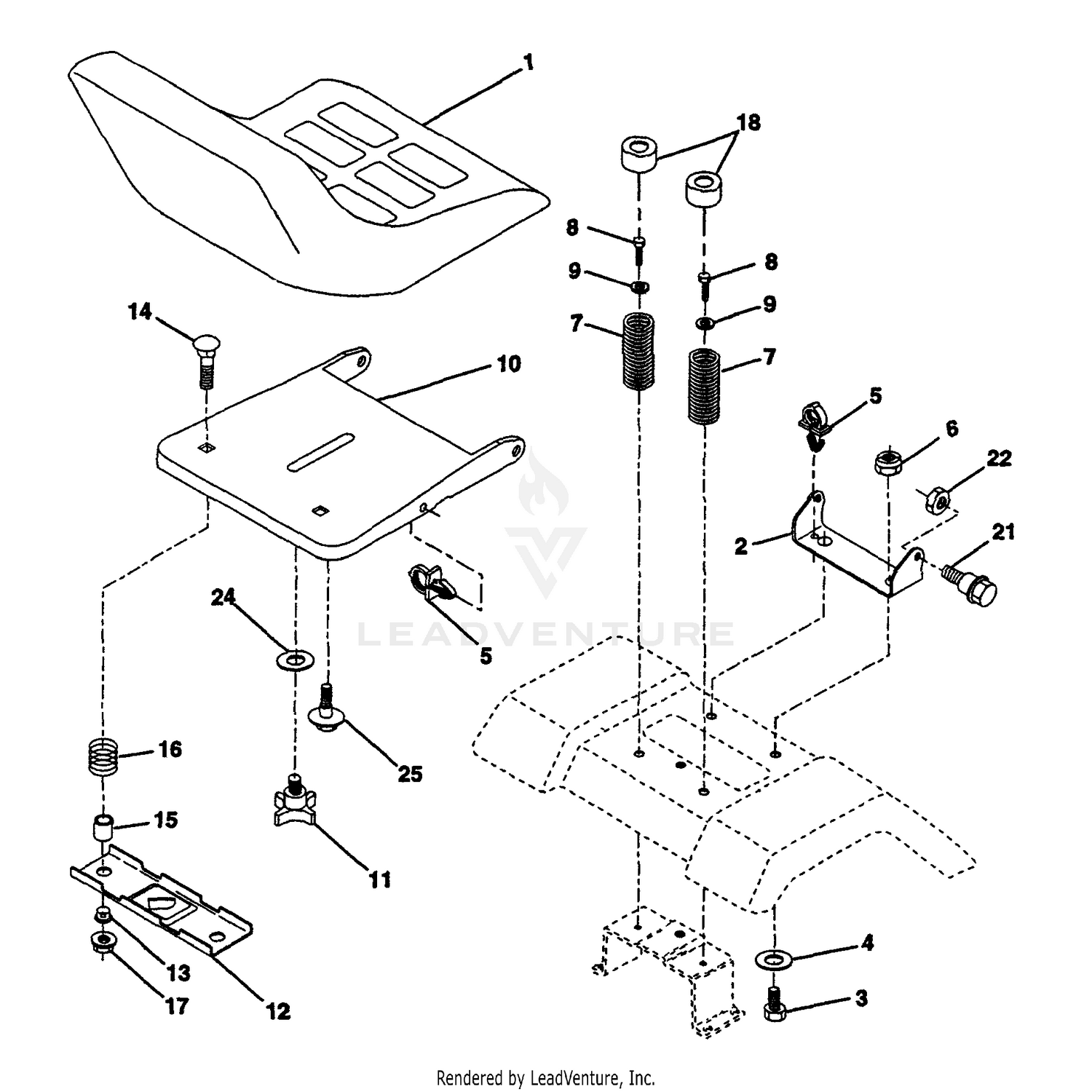

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532124185. Price: $149.99 |
| 2 |
52-9230 |
RING-RETAINING Price: $26.68 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
52-9240 |
BUSHING Price: $65.67 |
| 3 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
59-6730 |
RACE Price: $10.63 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
59-6740 |
BEARING Price: $28.82 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $17.99 |
| 10 |
59-6820 |
CENTERING SPRING KIT Price: $50.64 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
92-9732 |
PLATE-WEAR Price: $101.64 |
| 14 |
59-6860 |
DRIVE Price: $204.59 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $3.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 15 |
59-6870 |
GEROTOR Price: $570.98 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 16 |
92-9730 |
CAP-END Price: $167.54 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
532124238 |
CAP SPRING Price: $4.99 |
| 18 |
92-9733 |
SCREW-CAP Price: $2.23 |
| 19 |
59-6830 |
CENTERING PIN KIT Price: $3.98 |
| 20 |
74-3090 |
SPRING-ANTI-CAV Price: $6.23 |
| 21 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 21 |
92-9737 |
PLUG-RETAINER Price: $38.10 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
74-3140 |
BALL-CHECK, ANTI-CAV Price: $6.84 |
| 23 |
52-9290 |
RETAINER-CHECKBALL Price: $15.41 |
| 24 |
52-9280 |
CHECKBALL Price: $7.01 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 26 |
52-9270 |
SEAT-CHECKBALL Price: $35.12 |
| 28 |
52-9260 |
SCREW-SET Price: $8.09 |
| 29 |
52-9250 |
BEARING KIT Price: $65.87 |
| 30 |
92-9749 |
SEAL KIT Price: $46.95 |
