| Ref | Part Number | Description |
|---|
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 12 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 15 |
58-3590 |
DOWEL Price: $5.50 |
| 16 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 17 |
98-1211-03 |
PLATE-ADAPTER, PUMP Price: $306.66 |
| 19 |
3213-20 |
SCREW-HH Price: $1.76 |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 22 |
98-7066-03 |
BRACKET-DAMPER Price: $48.17 |
| 23 |
56-2140 |
SCREW-HH Price: $4.17 |
| 28 |
323-11 |
SCREW-HH Price: $1.08 |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 31 |
32128-21 |
NUT-HF Price: $0.39 |
| 33 |
106-7093 |
KIT-COUPLING This part replaces 98-1210-03. Price: $218.24 |
| 34 |
98-3024 |
MOUNT-ENGINE Price: $103.88 |
| 35 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 36 |
98-1207-03 |
BRACKET-FRONT, LH Price: $74.95 |
| 37 |
98-1206-03 |
BRACKET-FRONT, RH Price: $74.95 |
| 38 |
98-1200-03 |
SPACER Price: $22.92 |
| 39 |
98-1204-03 |
BRACKET-ENGINE, LH REAR Price: $49.06 |
| 40 |
98-1205-03 |
BRACKET-ENGINE, RH REAR Price: $46.61 |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 42 |
323-11 |
SCREW-HH Price: $1.08 |
| 43 |
33116-070 |
SCREW-HH Price: $4.14 |
| 44 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 45 |
48-9530 |
NUT Price: $1.78 |
| 46 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 47 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 49 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 50 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 51 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 52 |
98-1213 |
BOLT-SHOULDER Price: $9.00 |
| 53 |
33114-020 |
SCREW-HH Price: $0.28 |
| 54 |
70-8470 |
SCREW-HH Price: $1.76 |
| 55 |
43-3180 |
SCREW-HH Price: $18.78 |
| 56 |
43-3210 |
SCREW-HH Price: $4.27 |
| 501785801 |
501785801 |
Price: $5.20 |
| 501788901 |
501788901 |
BOLT Price: $4.99 |
| 501789101 |
501789101 |
Washer Price: $2.12 |

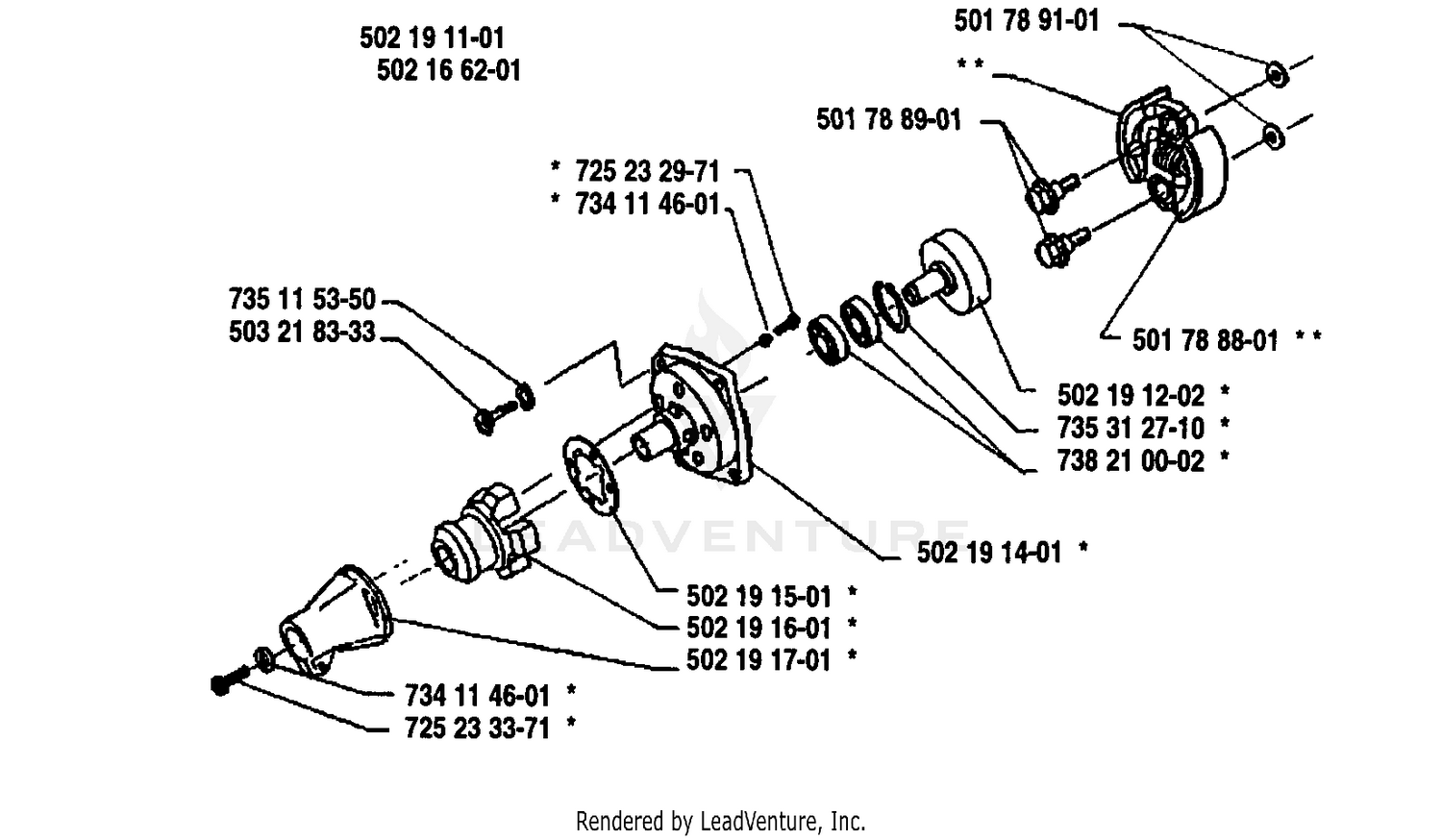

| 502166201 |
502166201 |
CLUTCH ASSY Price: $63.00 |
| 502191101 |
502191101 |
CLUTCH HOUSING CPL Price: $173.68 |
| 502191202 |
502191202 |
CLUTCH DRUM Price: $20.99 |
| 502191401 |
531007857 |
BEARING HOLDER This part replaces 502191401. Price: $54.99 |
| 502191501 |
502191501 |
Washer Price: $2.26 |
| 502191601 |
502191601 |
ANTIVIBE ELEMENT Price: $14.99 |
| 502191701 |
531007858 |
PIPE HOLDER This part replaces 502191701. Price: $69.99 |
| 503218333 |
503218333 |
Screw 6x20 Price: $2.41 |
| 725232971 |
725232971 |
SCREW Price: $2.99 |
| 734114601 |
819070816 |
Washer 7/32 x 1/2 x 16 Gauge This part replaces 734114601. Price: $5.99 |
| 735115350 |
735115350 |
SPRING WASHER 6.4X11 Price: $1.99 |
| 735312710 |
735312710 |
RETAINING RING SGH 26 Price: $2.99 |
| 738210002 |
738210002 |
BALL BEARING 6000-2Z Price: $12.99 |
