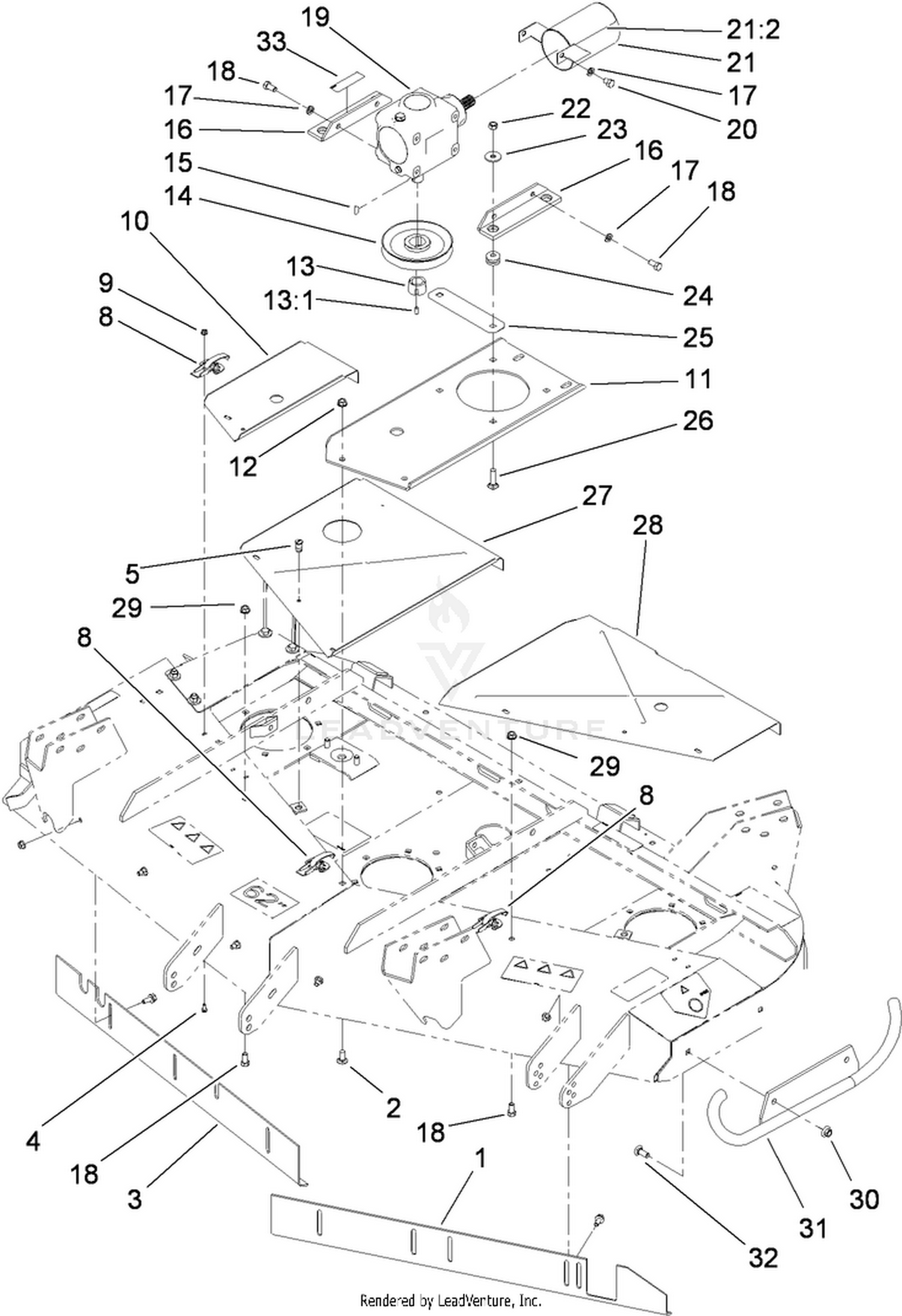

| Ref | Part Number | Description |
|---|
| 1 |
99-5152-01 |
BAFFLE-FRONT, LH Price: $74.53 |
| 2 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 3 |
82-8820-01 |
BAFFLE-FRONT, RH Price: $91.09 |
| 4 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 5 |
117-6989 |
FRACTIONAL TURN OVAL HEAD STUD ASM Price: $13.02 |
| 8 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 9 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 10 |
119-4754-01 |
COVER-BELT, RH Price: $143.21 |
| 11 |
72-9310-01 |
BASE-GEARBOX Price: $128.01 |
| 12 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 13 |
27-6140 |
BUSHING-LOCK, TAPER Price: $84.79 |
| 14 |
63-9900 |
GEARBOX PULLEY ASM This part replaces 63-9900-03. Price: $135.09 |
| 15 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 16 |
68-8560-03 |
BRACKET-GEARBOX Price: $57.56 |
| 17 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 18 |
323-4 |
SCREW-HH Price: $1.02 |
| 19 |
108-1370 |
GEARBOX REPLACEMENT KIT Price: $862.61 |
| 20 |
323-2 |
SCREW-HH Price: $0.68 |
| 21 |
107-2904 |
PTO GUARD ASM Price: $173.51 |
| 22 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 23 |
63-8410 |
WASHER Price: $1.76 |
| 24 |
63-9750 |
MOUNT Price: $18.92 |
| 25 |
68-9890-01 |
COVER-GEARBOX, FRONT Price: $47.21 |
| 26 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 27 |
119-4753-01 |
COVER-BELT, CENTER Price: $129.34 |
| 28 |
119-4752-01 |
COVER-BELT, LH Price: $117.74 |
| 29 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 30 |
32128-19 |
NUT-HF Price: $0.99 |
| 31 |
99-1252-01 |
SKID ASM Price: $149.16 |
| 32 |
3231-22 |
SCREW-CARR Price: $0.72 |
