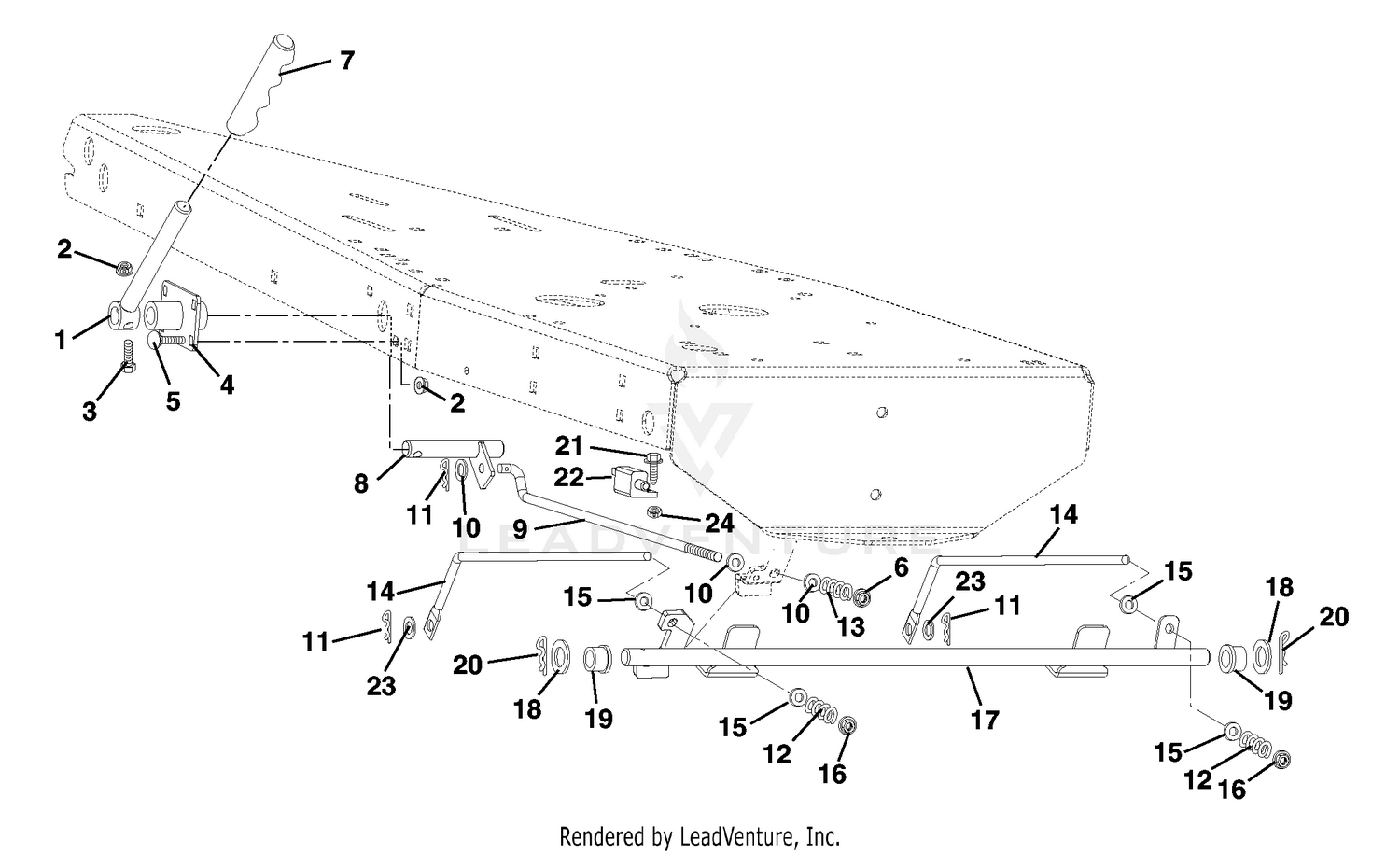

| Ref | Part Number | Description |
|---|
| 1 |
01596300 |
WMT, HANDLE Price: $61.45 |
| 2 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06544400. Price: $1.45 |
| 3 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 4 |
01596000 |
WMT, HANDLE PIVOT Price: $39.95 |
| 5 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06226700. Price: $2.45 |
| 6 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06544500. Price: $1.45 |
| 7 |
07527500 |
GRIP Price: $5.45 |
| 8 |
01596100 |
WMT, PIVOT ARM Price: $4.95 |
| 9 |
01602100 |
ROD, ARM-LOCKING Price: $17.95 |
| 10 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 11 |
06700223 |
PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45 |
| 12 |
08300028 |
SPRING, COMPRESSION This part replaces 08300600. Price: $4.45 |
| 13 |
08300028 |
SPRING, COMPRESSION This part replaces 039611. Price: $4.45 |
| 14 |
01602000 |
ROD, BRAKE ACTUATING Price: $12.95 |
| 15 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
| 16 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 17 |
01602200 |
SHAFT, BRAKE-WELDMENT Price: $24.95 |
| 18 |
06401207 |
WSHR- FLT .890X1.500X.119 ZCC This part replaces 06444700. Price: $3.95 |
| 19 |
05517400 |
BSHG-FLG .630X1.000X.625 NY This part replaces 045787. Price: $6.45 |
| 20 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 21 |
07413000 |
SCR-TAP 10-24X.75 HWH TR YWZC Price: $2.95 |
| 22 |
03657100 |
SWITCH- SINGLE POLE N.O. Price: $8.45 |
| 23 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
