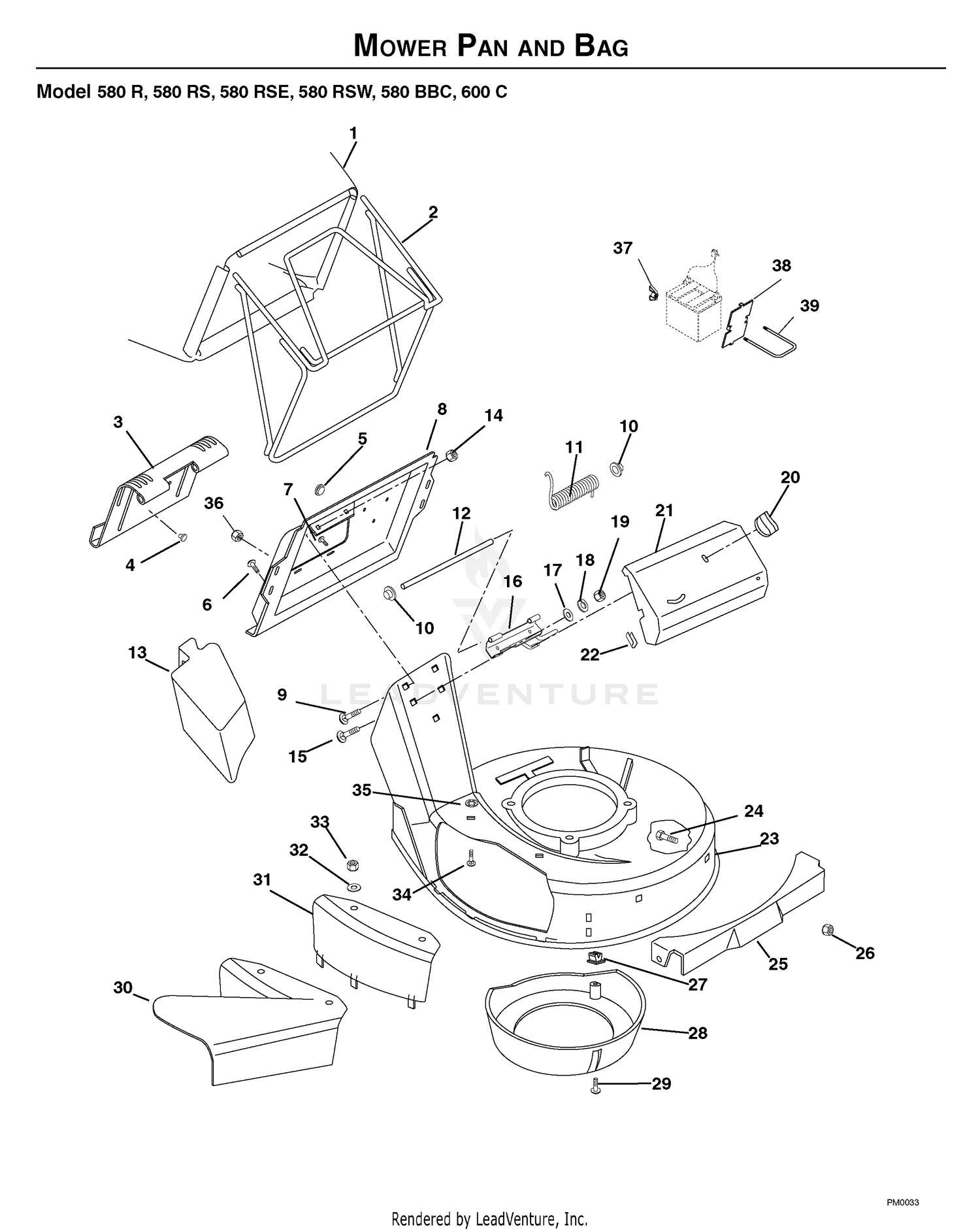

| Ref | Part Number | Description |
|---|
| 1 |
531308410 |
BAG-BLACK 21"DECK REAR 580/600 This part replaces 606000076. Price: $92.96 |
| 2 |
606000063 |
BAGGER FRAME Price: $99.99 |
| 4 |
606000097 |
BUTTON BUMPER Price: $3.99 |
| 5 |
606000096 |
BUMPER Price: $1.99 |
| 6 |
606000092 |
SCRW TPNG 12-24X.50 HX WSHR HD Price: $1.99 |
| 7 |
606000093 |
Screw-Tapping 10-24 x .375 Hex Washer Head (580 RSW, 600 C) Price: $1.38 |
| 8 |
606000070 |
CATCHER PLATE Price: $46.99 |
| 9 |
606000079 |
Bolt-Round Head Square Neck .25-20 x .38 Price: $1.80 |
| 10 |
606000078 |
PUSH NUT Price: $1.99 |
| 11 |
606000098 |
Spring-Torsion .120 x .68 x 3.09 Price: $14.58 |
| 12 |
606000064 |
Pin-Door Price: $4.95 |
| 13 |
606000100 |
MULCH MASTER MULCHER ACCESSORY Price: $32.99 |
| 14 |
606000088 |
Nut-Locking-Flange .250-20 (600 C) Price: $0.26 |
| 15 |
606000081 |
BOLT-RND HD SQ NCK .25-20X.75 Price: $3.99 |
| 16 |
606000067 |
HINGE BASE WELDMENT Price: $14.99 |
| 17 |
606000085 |
WASHER FLAT STL .312X.734X.065 Price: $1.99 |
| 18 |
606000083 |
WASHER-LOCKING .25X.077 Price: $2.99 |
| 19 |
606000090 |
NUT-HEX .25-20 Price: $2.99 |
| 20 |
606000069 |
NUT-WING Price: $5.99 |
| 21 |
606000068 |
DRIVE COVER Price: $30.99 |
| 22 |
606000066 |
Trim Bumper Price: $6.74 |
| 23 |
606000099 |
Mower Pan Head with Decals (580 RS, 580 RSW, 580 BBC, 600 C) Price: $197.92 |
| 24 |
606000082 |
Bolt-Round Head Square Neck .31-18 x .50 Grade 5 (580 R, 580 RS, 580 RSE, 580 BBC, 600 C) Price: $1.52 |
| 25 |
606000065 |
FRONT PANEL Price: $36.99 |
| 26 |
606000243 |
NUT LOCKING CENTER .31-18 This part replaces 606000050. Price: $2.99 |
| 27 |
606000095 |
PLASTIC GROMMET Price: $1.99 |
| 28 |
606000072 |
CENTER BAFFLE Price: $23.99 |
| 29 |
606000094 |
SCRW TPNG 10-16X.62 HX WSHR HD Price: $0.99 |
| 30 |
606000077 |
SIDE DISCHARGE ASSEMBLY Price: $30.99 |
| 31 |
606000075 |
SIDE DISCHARGE COVER Price: $29.99 |
| 32 |
606000044 |
WASHER-FLT-STL .406X.812X.065 Price: $1.99 |
| 33 |
606000089 |
Nut-Locking-Nylon .312-18 Price: $0.84 |
| 34 |
606000080 |
Bolt-Round Head Square Neck .31-18 x .75 Grade 2 Price: $2.36 |
| 35 |
606000086 |
Nut-Push .312 Price: $1.52 |
| 36 |
606000088 |
Nut-Locking-Flange .250-20 (600 C) Price: $0.26 |
| 37 |
606000091 |
Nut-Wing #8-32 Price: $4.00 |
| 38 |
606000073 |
Battery Plate (580 RSE) Price: $7.50 |
| 39 |
606000074 |
U-Bolt (580 RSE) Price: $9.78 |
