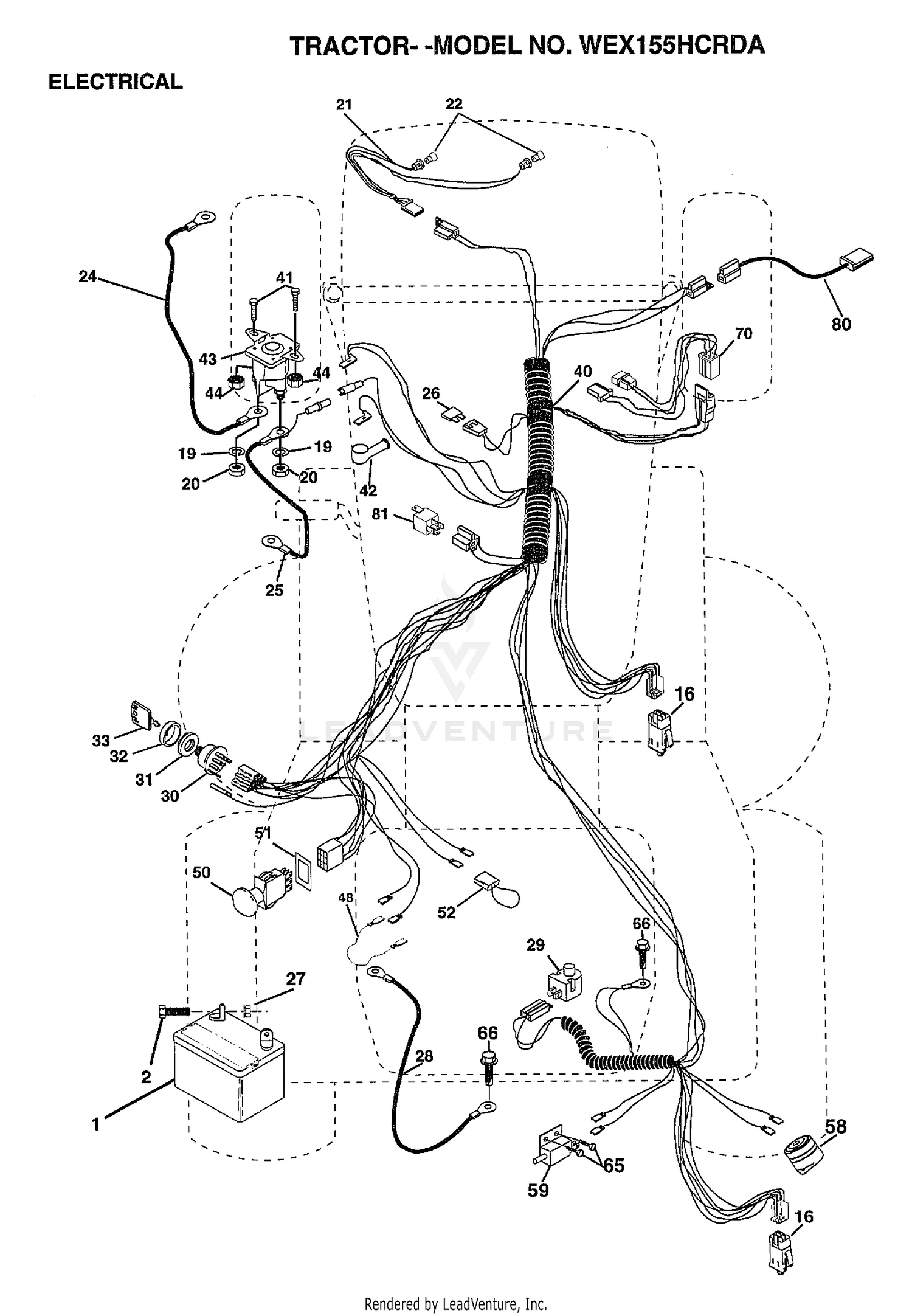

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
99-1644 |
DASH SHROUD ASM Price: $365.54 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 2 |
92-8997 |
COOLER-OIL Price: $512.86 |
| 3 |
85-9550 |
RUBBER CLAMP ASM Price: $5.56 |
| 4 |
85-9670 |
NUT-T Price: $1.63 |
| 5 |
AU218-5106 |
FITTING-ELB 90 This part replaces 353-371. Price: $10.29 |
| 6 |
95-0643 |
TUBE-VALVE TO COOLER Price: $45.04 |
| 8 |
767148 |
FILTER CONVERSION KIT This part replaces 95-0610. Price: $112.49 |
| 9 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 10 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 11 |
322-14 |
SCREW-HH Price: $1.01 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
92-7159 |
TREAD-FLOOR, LH Price: $26.24 |
| 14 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 15 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
95-5807 |
SPACER Price: $10.10 |
| 17 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 18 |
322-2 |
SCREW-HH Price: $0.69 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
95-0620-01 |
STRIP-RETAINER Price: $12.71 |
| 20 |
73350400 |
NUT Price: Call Us |
| 20 |
95-5826 |
SHIELD-RUBBER Price: $40.16 |
| 21 |
166181 |
HARNESS.ASM.LIGHT W/4152J Price: Call Us |
| 21 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
95-0582 |
HOSE-INTAKE, AIR Price: $61.51 |
| 23 |
95-5805 |
AIR CLEANER ASM Price: $140.44 |
| 24 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 25 |
165987 |
CABLE.BATTERY.CRD Price: Call Us |
| 25 |
92-7158 |
TREAD-FLOOR, RH Price: $26.24 |
| 26 |
166180 |
FUSE.15 AMP Price: Call Us |
| 26 |
95-5817 |
FRONT SHIELD ASM Price: $354.47 |
| 27 |
106-8101 |
DECAL Price: $53.64 |
| 27 |
73510400 |
NUT Price: Call Us |
| 28 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 29 |
160784 |
SWITCH.PLUNGER Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
94-4519 |
TUBE-CONVOLUTE Price: $2.24 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
106-8102 |
DECAL Price: $48.89 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
166158 |
HARNESS.IGN.CRD.ELECT Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 50 |
154959 |
PTO SWITCH.BLK Price: Call Us |
| 51 |
140405 |
RING RETAIN PTO Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 58 |
165943 |
BUZZER CRD Price: Call Us |
| 59 |
166299 |
SWITCH.FBI.CRD Price: Call Us |
| 65 |
17211008 |
SCREW Price: Call Us |
| 66 |
17490608 |
SCREW LT Price: Call Us |
| 70 |
166668 |
HARNESS.ENGINE Price: Call Us |
| 80 |
146685 |
HARNESS.CLUT.EVX. Price: Call Us |
