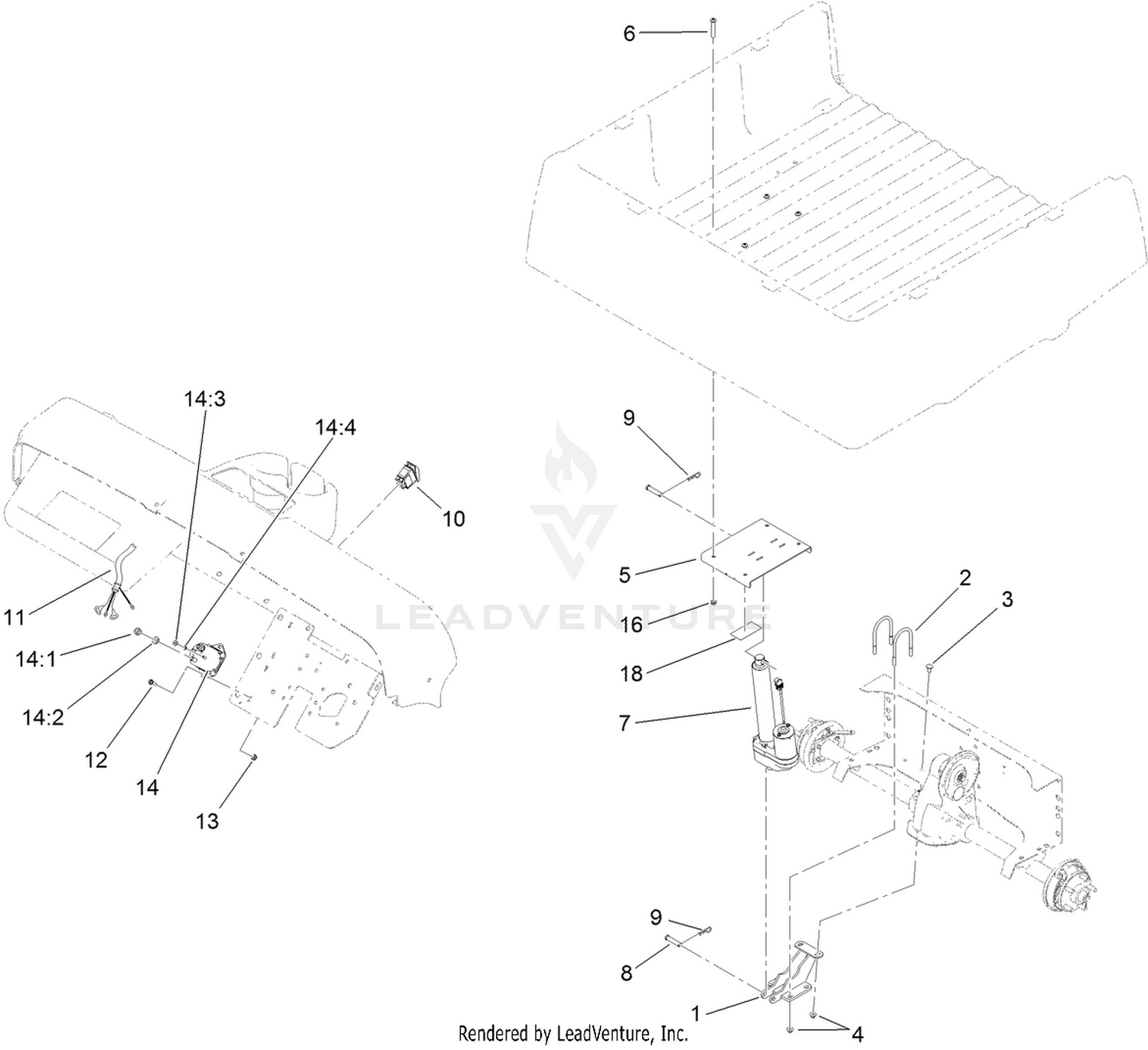

Electric Bed Lift Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-7232-03 | SUPPORT-CYLINDER, LIFT Price: $123.37 |
| 2 | 99-7759 | U-BOLT Price: $11.13 |
| 3 | 3231-30 | SCREW-CARR Price: $4.27 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 119-9471-03 | LIFT BRACKET ASM Price: $72.11 |
| 6 | 119-9615 | SCREW-PPH Price: $2.65 |
| 7 | 120-5046 | ACTUATOR-48V, 8 INCH Price: $1,803.61 |
| 8 | 92-2739 | PIN-CLEVIS Price: $8.48 |
| 9 | 3290-467 | PIN-HAIR Price: $0.27 |
| 10 | 107-0748 | SWITCH-ROCKER Price: $61.17 |
| 11 | 107-0715 | HARNESS-WIRE Price: $113.03 |
| 12 | 32105-13 | SCREW-HWH Price: $1.59 |
| 13 | 32149-7 | NUT-KEPS Price: $0.27 |
| 14 | 104-7135 | SOLENOID ASM Price: $85.79 |
| 16 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
