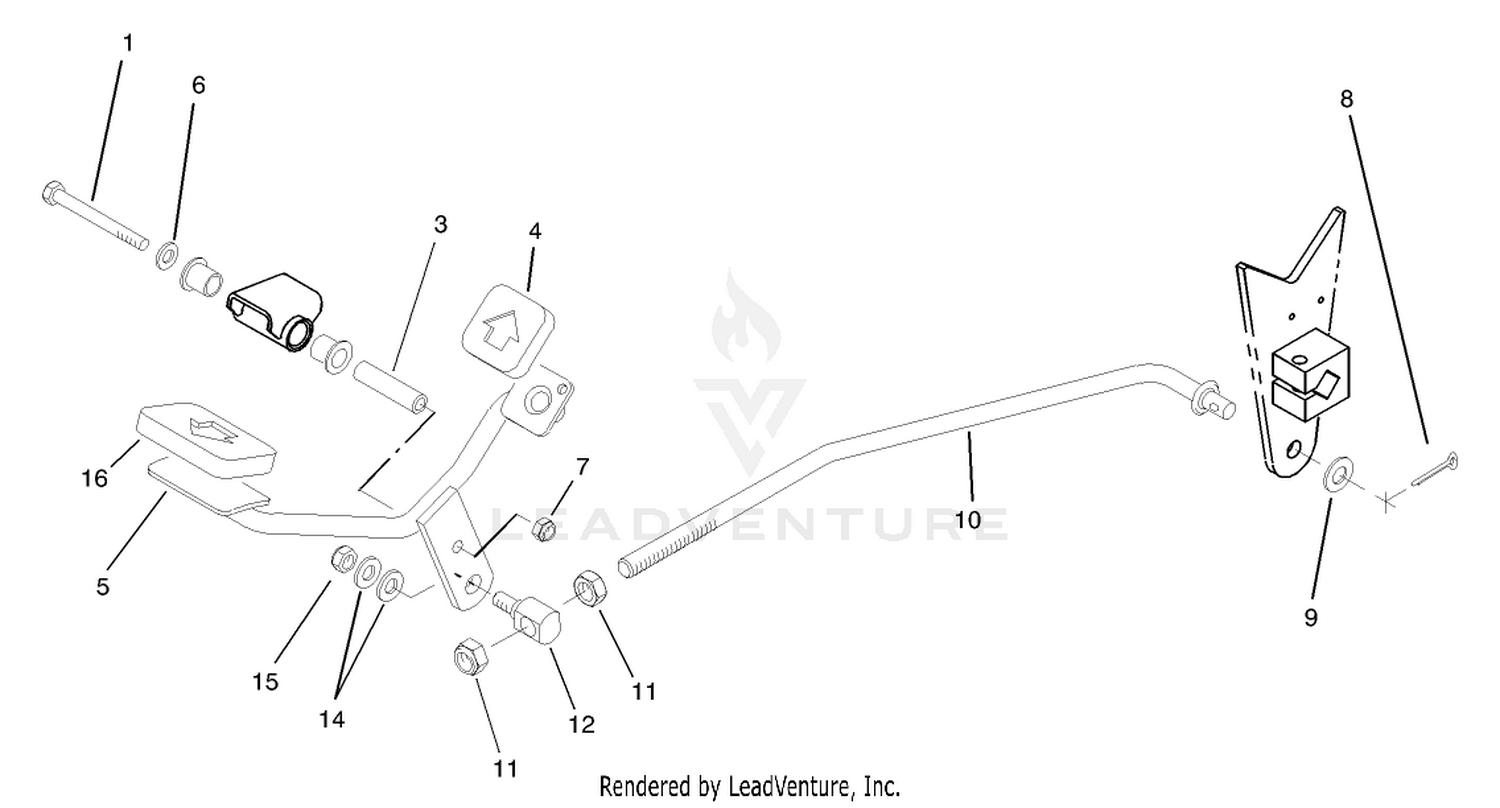

Traction Pedal Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 322-14 | SCREW-HH Price: $1.01 |
| 3 | 85-8960 | SPACER Price: $11.44 |
| 4 | 74-9110 | PAD-PEDAL, REVERSE Price: $13.49 |
| 5 | 92-2343-01 | PEDAL ASM Price: $59.71 |
| 6 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 3272-16 | PIN-COTTER Price: $0.31 |
| 9 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 10 | 85-8450 | ROD-TRACTION Price: $44.90 |
| 11 | 3218-5 | NUT-JAM Price: $0.27 |
| 12 | 92-2344 | TRUNNION Price: $81.16 |
| 14 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 15 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
