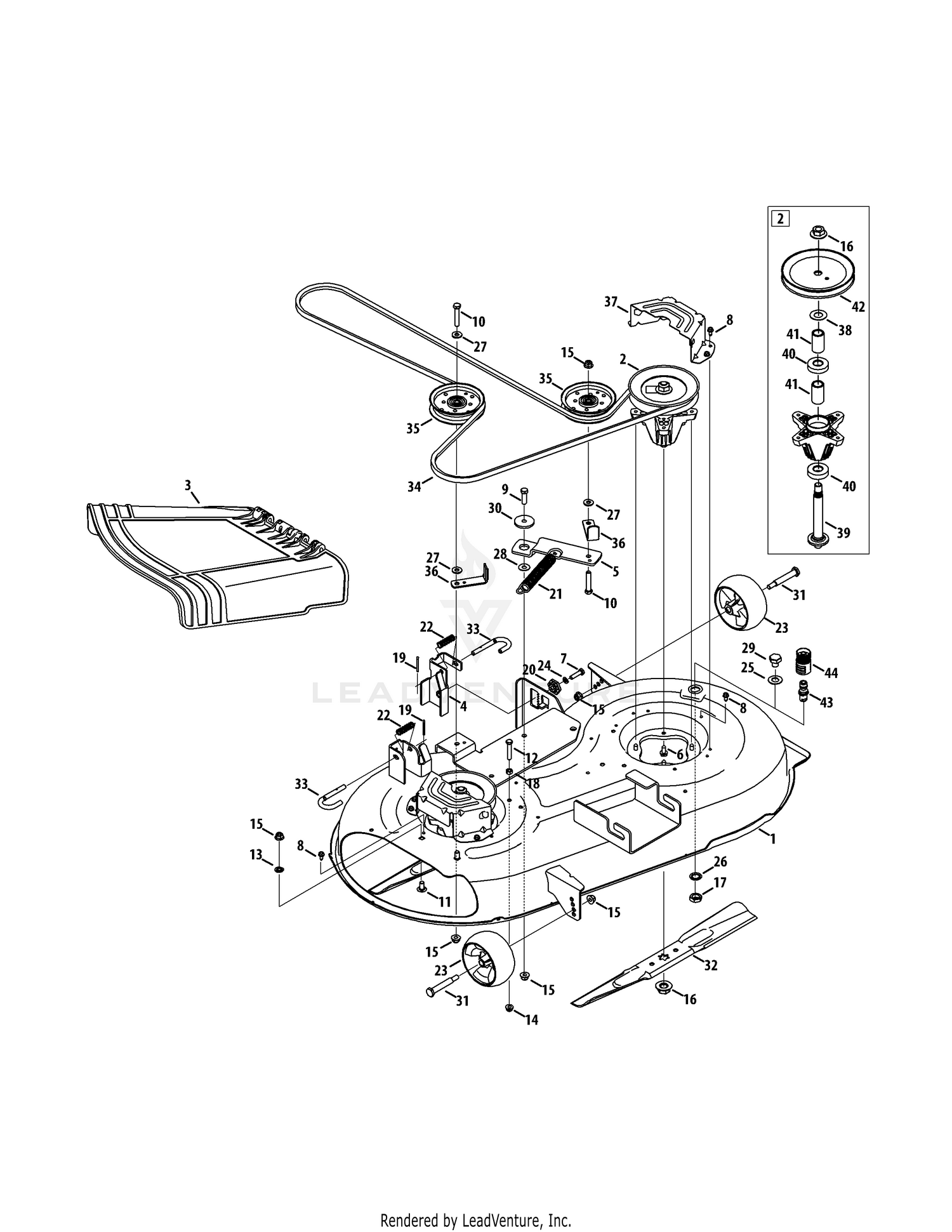

| Ref | Part Number | Description |
|---|
| 2 |
918-04822B |
SPINDLE ASSEMBLY This part replaces 918-04822A. Price: $112.61 |
| 3 |
631-05191A |
Discharge Chute Assembly This part replaces 631-04344. Price: $49.80 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-4033. Price: |
| 5 |
703-08336E |
IDLER PIVOT BRACKET This part replaces 703-08336-4033. Price: $27.95 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 8 |
710-0599 |
Hex Washer Head Screw, 1/4-20 x .5 Price: $3.86 |
| 9 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 10 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $4.02 |
| 11 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 12 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.93 |
| 13 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 14 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 15 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 16 |
712-0417A |
HEX NUT Price: $6.50 |
| 17 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 18 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 19 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 20 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 21 |
732-0459C |
Extension Spring, .94 Dia. x 6.74 Price: $16.05 |
| 22 |
732-04652 |
Compression Spring, .535 x 1.751 Price: $5.88 |
| 23 |
734-04155 |
Deck Ball Wheel, 5.0 Price: $19.04 |
| 24 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 25 |
736-0187 |
Flat Washer, .64 x 1.24 x .06 Price: $4.02 |
| 26 |
736-0225 |
Internal Tooth Lock Washer, 5/8 Price: $3.90 |
| 27 |
736-0262 |
Flat Washer, .385 x .870 x .092 Price: $3.66 |
| 28 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 29 |
738-04146 |
Bolt, M16 x 1.5 Price: $8.02 |
| 30 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 31 |
938-3056 |
Shoulder Screw, .5 x 2.5 x 3/8-16 Price: $8.53 |
| 33 |
747-1116 |
Deck Hanger Rod Price: $11.17 |
| 34 |
954-04137B |
Belt (Deck Spindle) This part replaces 954-04137A. Price: $41.33 |
| 35 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 36 |
783-06368A-0637 |
Bracket, Belt Guard Price: $18.68 |
| 37 |
783-06424A-0637 |
Deck Belt Cover, 42 This part replaces 783-06424A-4033. Price: $9.16 |
| 38 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 39 |
738-1186A |
Spindle Shaft Price: $45.83 |
| 40 |
741P0919B |
BALL BEARING This part replaces 941-0919A. Price: $18.90 |
| 41 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 42 |
956-1227 |
Deck Pulley Price: $23.08 |
| 43 |
737-04003D |
Deck Water Nozzle Price: $20.69 |
